Schema documentation for component eml:ReferenceTempPres

Showing:

Annotations

Diagrams

Model

Properties

Source

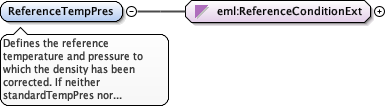

Element eml:ReferenceTemperaturePressure / eml:ReferenceTempPres

Namespace

http://www.energistics.org/energyml/data/commonv2

Annotations

Defines the reference temperature and pressure to which the density has been corrected. If neither standardTempPres nor temp,pres are specified then the standard condition is defined by standardTempPres at the procuctVolume root.

Diagram

Type

eml:ReferenceConditionExt

Properties

content	simple
minOccurs	1
maxOccurs	1

Source

<xs:element name="ReferenceTempPres" type="eml:ReferenceConditionExt" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Defines the reference temperature and pressure to which the density has been corrected. If neither standardTempPres nor temp,pres are specified then the standard condition is defined by standardTempPres at the procuctVolume root.</xs:documentation>
  </xs:annotation>
</xs:element>

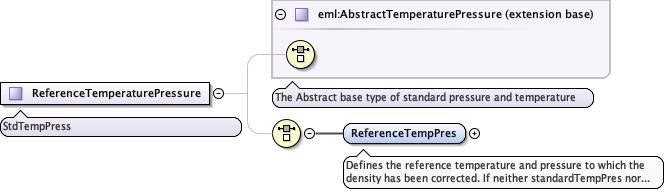

Complex Type eml:ReferenceTemperaturePressure

Namespace

http://www.energistics.org/energyml/data/commonv2

Annotations

StdTempPress

Diagram

Type

extension of eml:AbstractTemperaturePressure

Type hierarchy

eml:AbstractTemperaturePressure
- eml:ReferenceTemperaturePressure

Model

eml:ReferenceTempPres

Children

eml:ReferenceTempPres

Source

<xs:complexType name="ReferenceTemperaturePressure">
  <xs:annotation>
    <xs:documentation>StdTempPress</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="eml:AbstractTemperaturePressure">
      <xs:choice minOccurs="0">
        <xs:element name="ReferenceTempPres" type="eml:ReferenceConditionExt" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Defines the reference temperature and pressure to which the density has been corrected. If neither standardTempPres nor temp,pres are specified then the standard condition is defined by standardTempPres at the procuctVolume root.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:choice>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
