Element witsml:Tubular
Namespace http://www.energistics.org/energyml/data/witsmlv2

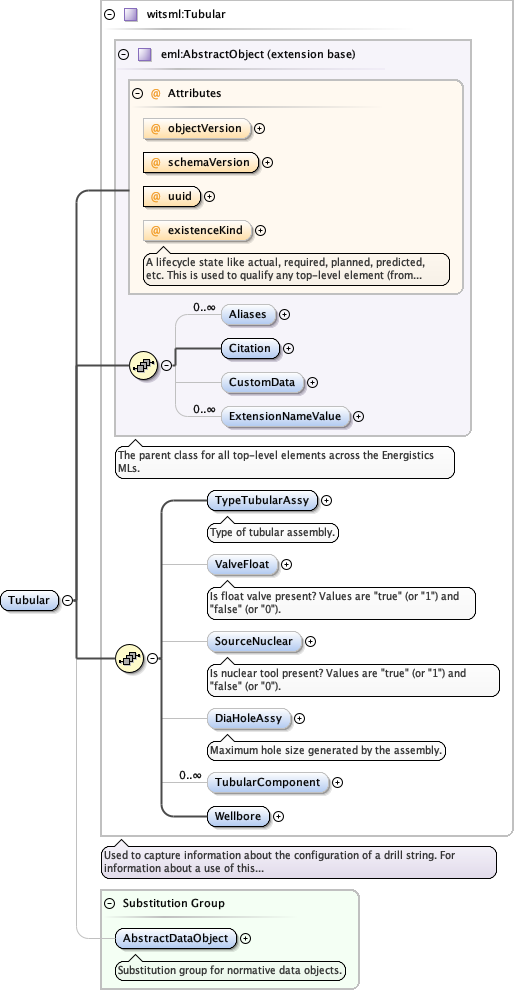

Diagram
DiagramAbstract_xsd_Complex_Type_eml_AbstractObject.tmp#http___www.energistics.org_energyml_data_commonv2_AbstractObject_objectVersionAbstract_xsd_Complex_Type_eml_AbstractObject.tmp#http___www.energistics.org_energyml_data_commonv2_AbstractObject_schemaVersionAbstract_xsd_Complex_Type_eml_AbstractObject.tmp#http___www.energistics.org_energyml_data_commonv2_AbstractObject_uuidAbstract_xsd_Complex_Type_eml_AbstractObject.tmp#http___www.energistics.org_energyml_data_commonv2_AbstractObject_existenceKindAbstract_xsd_Complex_Type_eml_AbstractObject.tmp#http___www.energistics.org_energyml_data_commonv2_AbstractObject_AliasesAbstract_xsd_Complex_Type_eml_AbstractObject.tmp#http___www.energistics.org_energyml_data_commonv2_AbstractObject_CitationAbstract_xsd_Complex_Type_eml_AbstractObject.tmp#http___www.energistics.org_energyml_data_commonv2_AbstractObject_CustomDataAbstract_xsd_Complex_Type_eml_AbstractObject.tmp#http___www.energistics.org_energyml_data_commonv2_AbstractObject_ExtensionNameValueAbstract_xsd_Complex_Type_eml_AbstractObject.tmp#http___www.energistics.org_energyml_data_commonv2_AbstractObjectTubular_xsd_Complex_Type_witsml_Tubular.tmp#http___www.energistics.org_energyml_data_witsmlv2_Tubular_TypeTubularAssyTubular_xsd_Complex_Type_witsml_Tubular.tmp#http___www.energistics.org_energyml_data_witsmlv2_Tubular_ValveFloatTubular_xsd_Complex_Type_witsml_Tubular.tmp#http___www.energistics.org_energyml_data_witsmlv2_Tubular_SourceNuclearTubular_xsd_Complex_Type_witsml_Tubular.tmp#http___www.energistics.org_energyml_data_witsmlv2_Tubular_DiaHoleAssyTubular_xsd_Complex_Type_witsml_Tubular.tmp#http___www.energistics.org_energyml_data_witsmlv2_Tubular_TubularComponentTubular_xsd_Complex_Type_witsml_Tubular.tmp#http___www.energistics.org_energyml_data_witsmlv2_Tubular_WellboreTubular_xsd_Complex_Type_witsml_Tubular.tmp#http___www.energistics.org_energyml_data_witsmlv2_TubularAbstract_xsd_Element_eml_AbstractDataObject.tmp#AbstractDataObject
Type witsml:Tubular
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children eml:Aliases, eml:Citation, eml:CustomData, eml:ExtensionNameValue, witsml:DiaHoleAssy, witsml:SourceNuclear, witsml:TubularComponent, witsml:TypeTubularAssy, witsml:ValveFloat, witsml:Wellbore
Instance

<witsml:Tubular existenceKind="" objectVersion="" schemaVersion="" uuid="" xmlns:witsml="http://www.energistics.org/energyml/data/witsmlv2" xmlns:eml="http://www.energistics.org/energyml/data/commonv2">
  <eml:Aliases authority="">{0,unbounded}</eml:Aliases>
  <eml:Citation>{1,1}</eml:Citation>
  <eml:CustomData>{0,1}</eml:CustomData>
  <eml:ExtensionNameValue>{0,unbounded}</eml:ExtensionNameValue>
  <witsml:TypeTubularAssy>{1,1}</witsml:TypeTubularAssy>
  <witsml:ValveFloat>{0,1}</witsml:ValveFloat>
  <witsml:SourceNuclear>{0,1}</witsml:SourceNuclear>
  <witsml:DiaHoleAssy uom="">{0,1}</witsml:DiaHoleAssy>
  <witsml:TubularComponent uid="">{0,unbounded}</witsml:TubularComponent>
  <witsml:Wellbore>{1,1}</witsml:Wellbore>
</witsml:Tubular>
Attributes
QName Type Use Annotation
existenceKind eml:ExistenceKind optional
A lifecycle state like actual, required, planned, predicted, etc. This is used to qualify any top-level element (from Epicentre 2.1).
objectVersion eml:String64 optional
schemaVersion eml:String64 required
uuid eml:UuidString required
Source

<xs:element name="Tubular" type="witsml:Tubular" substitutionGroup="eml:AbstractDataObject"/>
