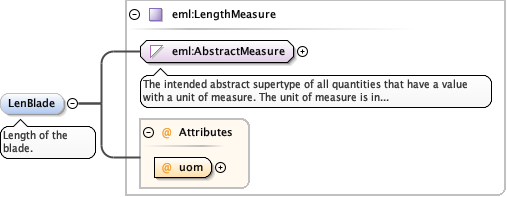

Element witsml:Stabilizer / witsml:LenBlade
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Length of the blade.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="LenBlade" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Length of the blade.</xs:documentation>
  </xs:annotation>
</xs:element>

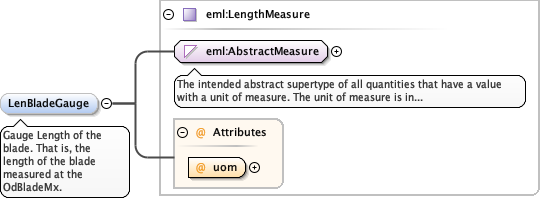

Element witsml:Stabilizer / witsml:LenBladeGauge
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Gauge Length of the blade. That is, the length of the blade measured at the OdBladeMx.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="LenBladeGauge" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Gauge Length of the blade. That is, the length of the blade measured at the OdBladeMx.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:Stabilizer / witsml:OdBladeMx
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Maximum outer diameter of the blade.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="OdBladeMx" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Maximum outer diameter of the blade.</xs:documentation>
  </xs:annotation>
</xs:element>

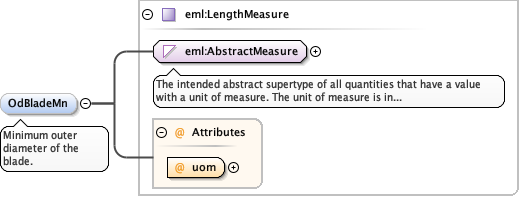

Element witsml:Stabilizer / witsml:OdBladeMn
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Minimum outer diameter of the blade.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="OdBladeMn" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Minimum outer diameter of the blade.</xs:documentation>
  </xs:annotation>
</xs:element>

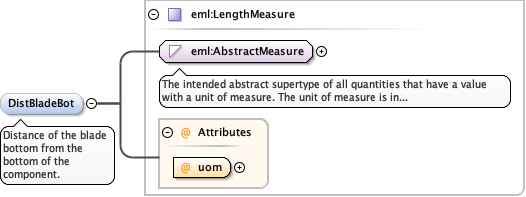

Element witsml:Stabilizer / witsml:DistBladeBot
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Distance of the blade bottom from the bottom of the component.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="DistBladeBot" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Distance of the blade bottom from the bottom of the component.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:Stabilizer / witsml:ShapeBlade
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Blade shape.
Diagram
DiagramTubular_xsd_Simple_Type_witsml_BladeShapeType.tmp#BladeShapeType
Type witsml:BladeShapeType
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 64
enumeration dynamic
enumeration melon
enumeration spiral
enumeration straight
enumeration variable
Source

<xs:element name="ShapeBlade" type="witsml:BladeShapeType" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Blade shape.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:Stabilizer / witsml:FactFric
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Friction factor.
Diagram
Diagram
Type xs:double
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="FactFric" type="xs:double" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Friction factor.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:Stabilizer / witsml:TypeBlade
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Blade type.
Diagram
DiagramTubular_xsd_Simple_Type_witsml_BladeType.tmp#BladeType
Type witsml:BladeType
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 64
enumeration clamp-on
enumeration integral
enumeration sleeve
enumeration welded
Source

<xs:element name="TypeBlade" type="witsml:BladeType" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Blade type.</xs:documentation>
  </xs:annotation>
</xs:element>

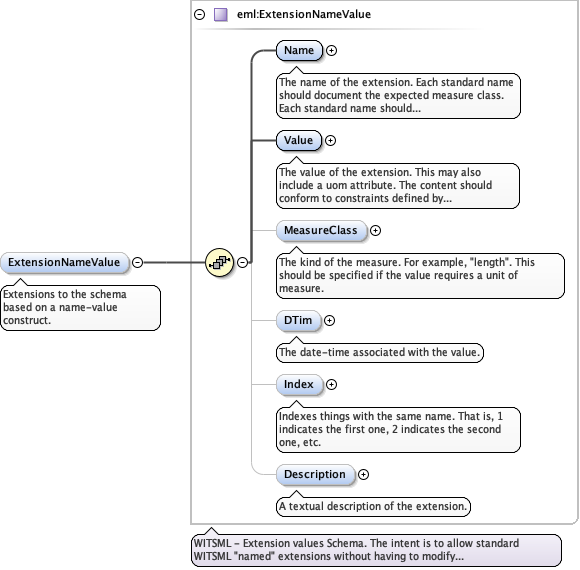

Element witsml:Stabilizer / witsml:ExtensionNameValue
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Extensions to the schema based on a name-value construct.
Diagram
DiagramAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_NameAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_ValueAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_MeasureClassAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_DTimAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_IndexAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_DescriptionAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue
Type eml:ExtensionNameValue
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children eml:DTim, eml:Description, eml:Index, eml:MeasureClass, eml:Name, eml:Value
Instance

<witsml:ExtensionNameValue xmlns:witsml="http://www.energistics.org/energyml/data/witsmlv2" xmlns:eml="http://www.energistics.org/energyml/data/commonv2">
  <eml:Name>{1,1}</eml:Name>
  <eml:Value uom="">{1,1}</eml:Value>
  <eml:MeasureClass>{0,1}</eml:MeasureClass>
  <eml:DTim>{0,1}</eml:DTim>
  <eml:Index>{0,1}</eml:Index>
  <eml:Description>{0,1}</eml:Description>
</witsml:ExtensionNameValue>
Source

<xs:element name="ExtensionNameValue" type="eml:ExtensionNameValue" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Extensions to the schema based on a name-value construct.</xs:documentation>
  </xs:annotation>
</xs:element>

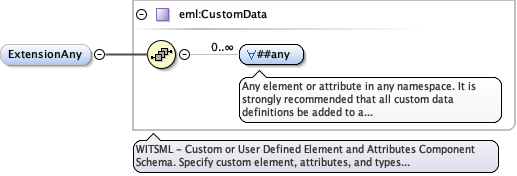

Element witsml:Stabilizer / witsml:ExtensionAny
Namespace http://www.energistics.org/energyml/data/witsmlv2
Diagram
DiagramAbstract_xsd_Complex_Type_eml_CustomData.tmp#CustomData
Type eml:CustomData
Properties
content complex
minOccurs 0
maxOccurs 1
Model
ANY element from ANY namespace
Source

<xs:element name="ExtensionAny" type="eml:CustomData" minOccurs="0" maxOccurs="1"/>

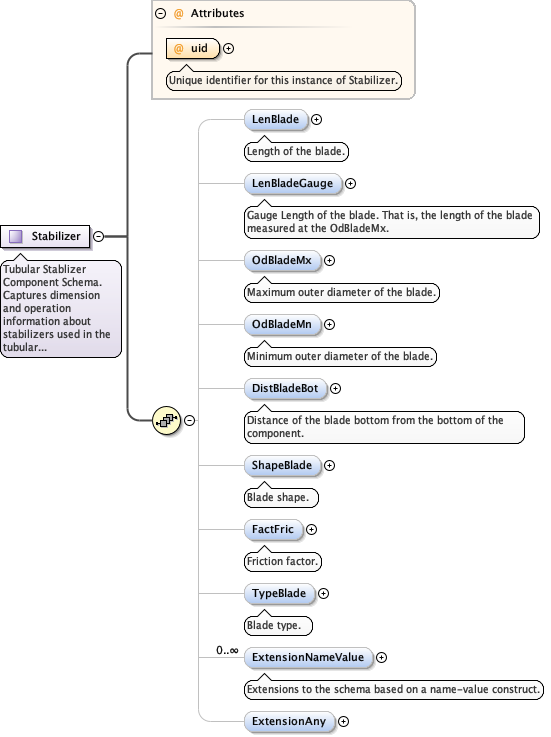

Complex Type witsml:Stabilizer
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Tubular Stablizer Component Schema. Captures dimension and operation information about stabilizers used in the tubular string.
Diagram
DiagramTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_uidTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_LenBladeTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_LenBladeGaugeTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_OdBladeMxTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_OdBladeMnTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_DistBladeBotTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_ShapeBladeTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_FactFricTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_TypeBladeTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_ExtensionNameValueTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_ExtensionAny
Used by
Model
Children witsml:DistBladeBot, witsml:ExtensionAny, witsml:ExtensionNameValue, witsml:FactFric, witsml:LenBlade, witsml:LenBladeGauge, witsml:OdBladeMn, witsml:OdBladeMx, witsml:ShapeBlade, witsml:TypeBlade
Attributes
QName Type Use Annotation
uid eml:String64 required
Unique identifier for this instance of Stabilizer.
Source

<xs:complexType name="Stabilizer">
  <xs:annotation>
    <xs:documentation>Tubular Stablizer Component Schema. Captures dimension and operation information about stabilizers used in the tubular string.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="LenBlade" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Length of the blade.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LenBladeGauge" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Gauge Length of the blade. That is, the length of the blade measured at the OdBladeMx.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="OdBladeMx" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Maximum outer diameter of the blade.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="OdBladeMn" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Minimum outer diameter of the blade.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DistBladeBot" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Distance of the blade bottom from the bottom of the component.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ShapeBlade" type="witsml:BladeShapeType" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Blade shape.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="FactFric" type="xs:double" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Friction factor.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TypeBlade" type="witsml:BladeType" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Blade type.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ExtensionNameValue" type="eml:ExtensionNameValue" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Extensions to the schema based on a name-value construct.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ExtensionAny" type="eml:CustomData" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
  <xs:attribute name="uid" use="required" type="eml:String64">
    <xs:annotation>
      <xs:documentation>Unique identifier for this instance of Stabilizer.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Attribute witsml:Stabilizer / @uid
Namespace No namespace
Annotations

Unique identifier for this instance of Stabilizer.
Type eml:String64
Type hierarchy
Properties
use required
Facets
maxLength 64
Used by
Complex Type witsml:Stabilizer
Source

<xs:attribute name="uid" use="required" type="eml:String64">
  <xs:annotation>
    <xs:documentation>Unique identifier for this instance of Stabilizer.</xs:documentation>
  </xs:annotation>
</xs:attribute>
