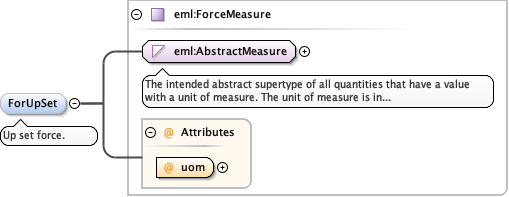

Element witsml:Jar / witsml:ForUpSet
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Up set force.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:ForceUom required
Source

<xs:element name="ForUpSet" type="eml:ForceMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Up set force.</xs:documentation>
  </xs:annotation>
</xs:element>

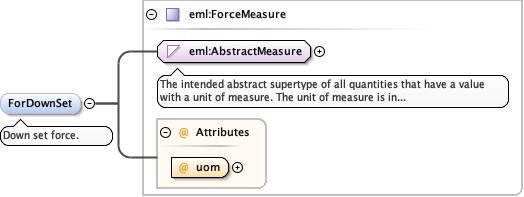

Element witsml:Jar / witsml:ForDownSet
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Down set force.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:ForceUom required
Source

<xs:element name="ForDownSet" type="eml:ForceMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Down set force.</xs:documentation>
  </xs:annotation>
</xs:element>

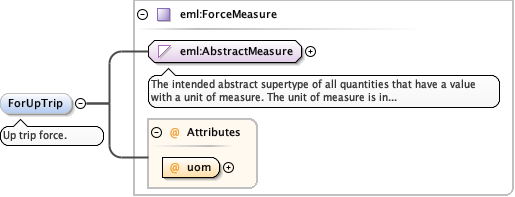

Element witsml:Jar / witsml:ForUpTrip
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Up trip force.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:ForceUom required
Source

<xs:element name="ForUpTrip" type="eml:ForceMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Up trip force.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:Jar / witsml:ForDownTrip
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Down trip force.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:ForceUom required
Source

<xs:element name="ForDownTrip" type="eml:ForceMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Down trip force.</xs:documentation>
  </xs:annotation>
</xs:element>

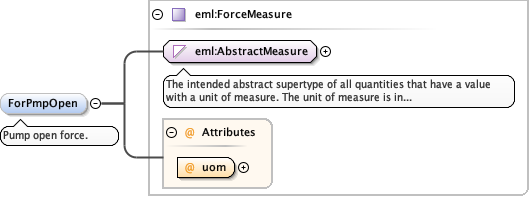

Element witsml:Jar / witsml:ForPmpOpen
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Pump open force.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:ForceUom required
Source

<xs:element name="ForPmpOpen" type="eml:ForceMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Pump open force.</xs:documentation>
  </xs:annotation>
</xs:element>

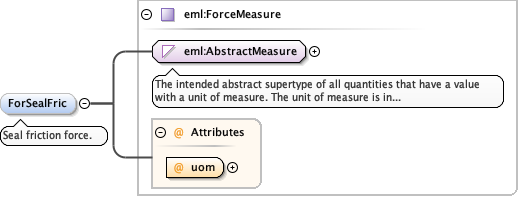

Element witsml:Jar / witsml:ForSealFric
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Seal friction force.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:ForceUom required
Source

<xs:element name="ForSealFric" type="eml:ForceMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Seal friction force.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:Jar / witsml:TypeJar
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

The kind of jar.
Diagram
DiagramTubular_xsd_Simple_Type_witsml_JarType.tmp#JarType
Type witsml:JarType
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 64
enumeration mechanical
enumeration hydraulic
enumeration hydro mechanical
Source

<xs:element name="TypeJar" type="witsml:JarType" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The kind of jar.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:Jar / witsml:JarAction
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

The jar action.
Diagram
DiagramTubular_xsd_Simple_Type_witsml_JarAction.tmp#JarAction
Type witsml:JarAction
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 64
enumeration up
enumeration down
enumeration both
enumeration vibrating
Source

<xs:element name="JarAction" type="witsml:JarAction" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The jar action.</xs:documentation>
  </xs:annotation>
</xs:element>

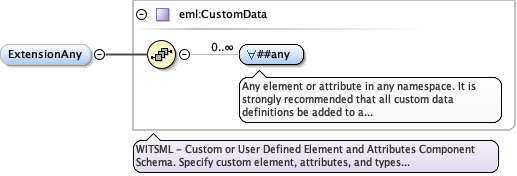

Element witsml:Jar / witsml:ExtensionAny
Namespace http://www.energistics.org/energyml/data/witsmlv2
Diagram
DiagramAbstract_xsd_Complex_Type_eml_CustomData.tmp#CustomData
Type eml:CustomData
Properties
content complex
minOccurs 0
maxOccurs 1
Model
ANY element from ANY namespace
Source

<xs:element name="ExtensionAny" type="eml:CustomData" minOccurs="0" maxOccurs="1"/>

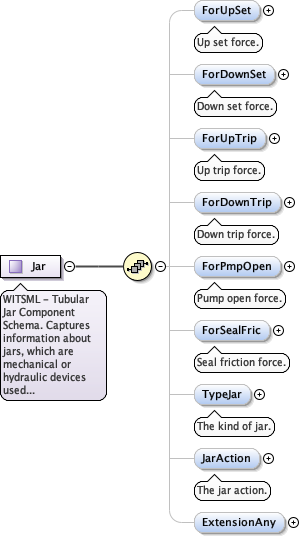

Complex Type witsml:Jar
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

WITSML - Tubular Jar Component Schema. Captures information about jars, which are mechanical or hydraulic devices used in the drill stem to deliver an impact load to another component of the drill stem, especially when that component is stuck.
Diagram
DiagramTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar_ForUpSetTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar_ForDownSetTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar_ForUpTripTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar_ForDownTripTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar_ForPmpOpenTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar_ForSealFricTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar_TypeJarTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar_JarActionTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar_ExtensionAny
Used by
Model
Children witsml:ExtensionAny, witsml:ForDownSet, witsml:ForDownTrip, witsml:ForPmpOpen, witsml:ForSealFric, witsml:ForUpSet, witsml:ForUpTrip, witsml:JarAction, witsml:TypeJar
Source

<xs:complexType name="Jar">
  <xs:annotation>
    <xs:documentation>WITSML - Tubular Jar Component Schema. Captures information about jars, which are mechanical or hydraulic devices used in the drill stem to deliver an impact load to another component of the drill stem, especially when that component is stuck.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="ForUpSet" type="eml:ForceMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Up set force.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ForDownSet" type="eml:ForceMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Down set force.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ForUpTrip" type="eml:ForceMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Up trip force.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ForDownTrip" type="eml:ForceMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Down trip force.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ForPmpOpen" type="eml:ForceMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Pump open force.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ForSealFric" type="eml:ForceMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Seal friction force.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TypeJar" type="witsml:JarType" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The kind of jar.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="JarAction" type="witsml:JarAction" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The jar action.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ExtensionAny" type="eml:CustomData" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
