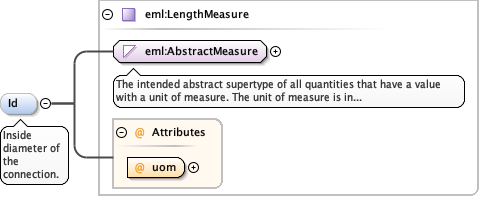

Element witsml:Connection / witsml:Id
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Inside diameter of the connection.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="Id" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Inside diameter of the connection.</xs:documentation>
  </xs:annotation>
</xs:element>

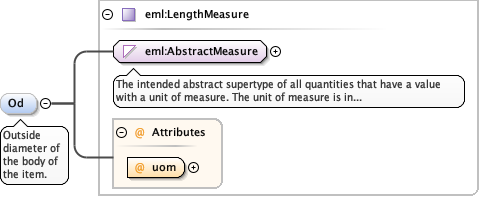

Element witsml:Connection / witsml:Od
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Outside diameter of the body of the item.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="Od" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Outside diameter of the body of the item.</xs:documentation>
  </xs:annotation>
</xs:element>

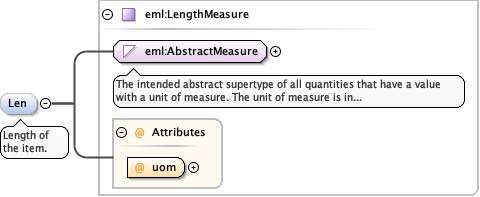

Element witsml:Connection / witsml:Len
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Length of the item.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="Len" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Length of the item.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:Connection / witsml:TypeThread
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Thread type from API RP7G, 5CT.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_String64.tmp#String64
Type eml:String64
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 64
Source

<xs:element name="TypeThread" type="eml:String64" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Thread type from API RP7G, 5CT.</xs:documentation>
  </xs:annotation>
</xs:element>

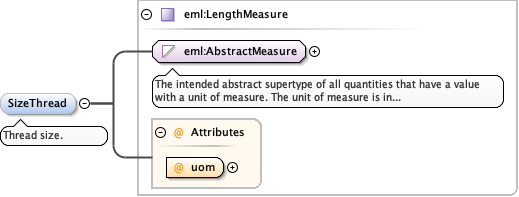

Element witsml:Connection / witsml:SizeThread
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Thread size.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="SizeThread" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Thread size.</xs:documentation>
  </xs:annotation>
</xs:element>

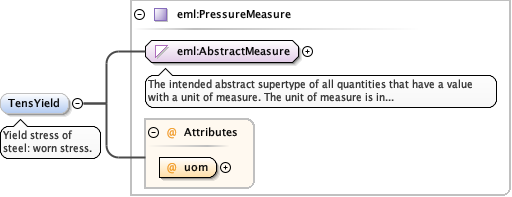

Element witsml:Connection / witsml:TensYield
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Yield stress of steel: worn stress.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:PressureUom required
Source

<xs:element name="TensYield" type="eml:PressureMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Yield stress of steel: worn stress.</xs:documentation>
  </xs:annotation>
</xs:element>

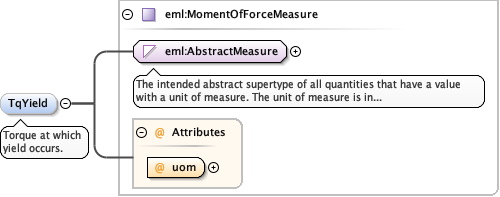

Element witsml:Connection / witsml:TqYield
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Torque at which yield occurs.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasure.tmp#MomentOfForceMeasure_uomMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasure.tmp#MomentOfForceMeasure
Type eml:MomentOfForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:MomentOfForceUom required
Source

<xs:element name="TqYield" type="eml:MomentOfForceMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Torque at which yield occurs.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:Connection / witsml:Position
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Where connected.
Diagram
DiagramTubular_xsd_Simple_Type_witsml_ConnectionPosition.tmp#ConnectionPosition
Type witsml:ConnectionPosition
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 64
enumeration both
The connection is the same at both ends of the component.
enumeration bottom
This connection is only at the bottom of the component.
enumeration top
This connection is only at the top of the component.
Source

<xs:element name="Position" type="witsml:ConnectionPosition" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Where connected.</xs:documentation>
  </xs:annotation>
</xs:element>

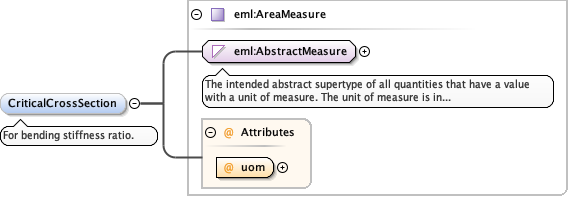

Element witsml:Connection / witsml:CriticalCrossSection
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

For bending stiffness ratio.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AreaMeasure.tmp#AreaMeasure_uomMeasureType_xsd_Complex_Type_eml_AreaMeasure.tmp#AreaMeasure
Type eml:AreaMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:AreaUom required
Source

<xs:element name="CriticalCrossSection" type="eml:AreaMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>For bending stiffness ratio.</xs:documentation>
  </xs:annotation>
</xs:element>

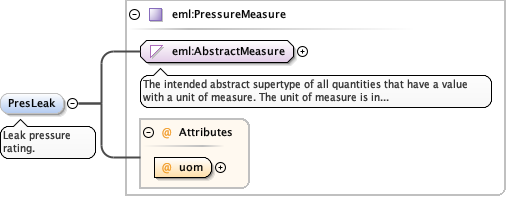

Element witsml:Connection / witsml:PresLeak
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Leak pressure rating.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:PressureUom required
Source

<xs:element name="PresLeak" type="eml:PressureMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Leak pressure rating.</xs:documentation>
  </xs:annotation>
</xs:element>

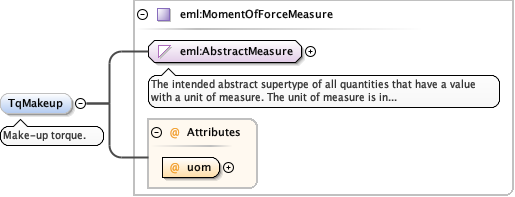

Element witsml:Connection / witsml:TqMakeup
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Make-up torque.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasure.tmp#MomentOfForceMeasure_uomMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasure.tmp#MomentOfForceMeasure
Type eml:MomentOfForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:MomentOfForceUom required
Source

<xs:element name="TqMakeup" type="eml:MomentOfForceMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Make-up torque.</xs:documentation>
  </xs:annotation>
</xs:element>

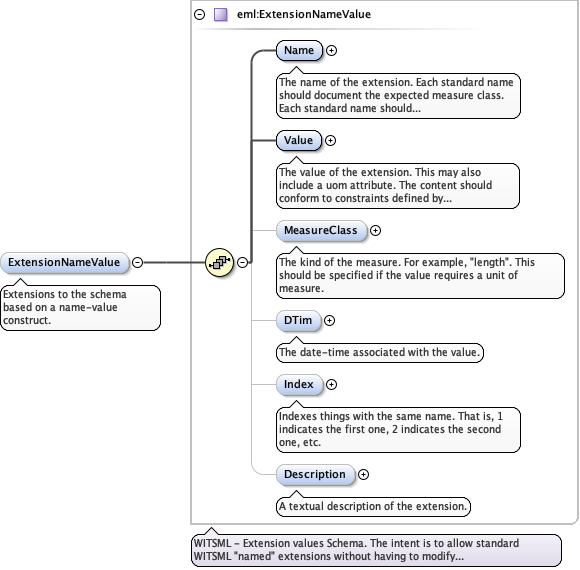

Element witsml:Connection / witsml:ExtensionNameValue
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Extensions to the schema based on a name-value construct.
Diagram
DiagramAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_NameAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_ValueAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_MeasureClassAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_DTimAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_IndexAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_DescriptionAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue
Type eml:ExtensionNameValue
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children eml:DTim, eml:Description, eml:Index, eml:MeasureClass, eml:Name, eml:Value
Instance

<witsml:ExtensionNameValue xmlns:witsml="http://www.energistics.org/energyml/data/witsmlv2" xmlns:eml="http://www.energistics.org/energyml/data/commonv2">
  <eml:Name>{1,1}</eml:Name>
  <eml:Value uom="">{1,1}</eml:Value>
  <eml:MeasureClass>{0,1}</eml:MeasureClass>
  <eml:DTim>{0,1}</eml:DTim>
  <eml:Index>{0,1}</eml:Index>
  <eml:Description>{0,1}</eml:Description>
</witsml:ExtensionNameValue>
Source

<xs:element name="ExtensionNameValue" type="eml:ExtensionNameValue" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Extensions to the schema based on a name-value construct.</xs:documentation>
  </xs:annotation>
</xs:element>

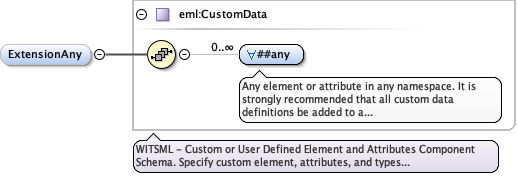

Element witsml:Connection / witsml:ExtensionAny
Namespace http://www.energistics.org/energyml/data/witsmlv2
Diagram
DiagramAbstract_xsd_Complex_Type_eml_CustomData.tmp#CustomData
Type eml:CustomData
Properties
content complex
minOccurs 0
maxOccurs 1
Model
ANY element from ANY namespace
Source

<xs:element name="ExtensionAny" type="eml:CustomData" minOccurs="0" maxOccurs="1"/>

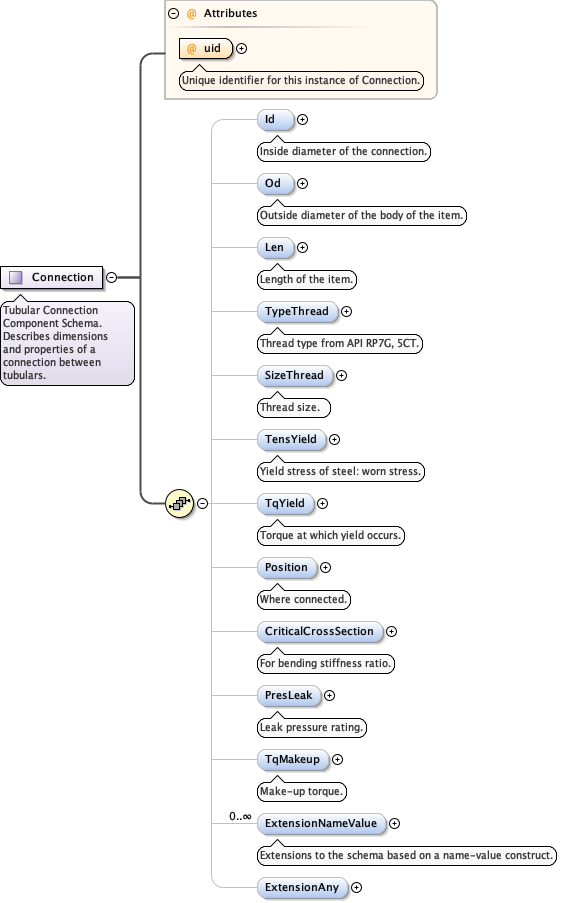

Complex Type witsml:Connection
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Tubular Connection Component Schema. Describes dimensions and properties of a connection between tubulars.
Diagram
DiagramTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_uidTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_IdTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_OdTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_LenTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_TypeThreadTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_SizeThreadTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_TensYieldTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_TqYieldTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_PositionTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_CriticalCrossSectionTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_PresLeakTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_TqMakeupTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_ExtensionNameValueTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_ExtensionAny
Used by
Model
Children witsml:CriticalCrossSection, witsml:ExtensionAny, witsml:ExtensionNameValue, witsml:Id, witsml:Len, witsml:Od, witsml:Position, witsml:PresLeak, witsml:SizeThread, witsml:TensYield, witsml:TqMakeup, witsml:TqYield, witsml:TypeThread
Attributes
QName Type Use Annotation
uid eml:String64 required
Unique identifier for this instance of Connection.
Source

<xs:complexType name="Connection">
  <xs:annotation>
    <xs:documentation>Tubular Connection Component Schema. Describes dimensions and properties of a connection between tubulars.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="Id" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Inside diameter of the connection.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Od" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Outside diameter of the body of the item.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Len" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Length of the item.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TypeThread" type="eml:String64" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Thread type from API RP7G, 5CT.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SizeThread" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Thread size.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TensYield" type="eml:PressureMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Yield stress of steel: worn stress.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TqYield" type="eml:MomentOfForceMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Torque at which yield occurs.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Position" type="witsml:ConnectionPosition" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Where connected.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CriticalCrossSection" type="eml:AreaMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>For bending stiffness ratio.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="PresLeak" type="eml:PressureMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Leak pressure rating.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TqMakeup" type="eml:MomentOfForceMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Make-up torque.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ExtensionNameValue" type="eml:ExtensionNameValue" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Extensions to the schema based on a name-value construct.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ExtensionAny" type="eml:CustomData" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
  <xs:attribute name="uid" use="required" type="eml:String64">
    <xs:annotation>
      <xs:documentation>Unique identifier for this instance of Connection.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Attribute witsml:Connection / @uid
Namespace No namespace
Annotations

Unique identifier for this instance of Connection.
Type eml:String64
Type hierarchy
Properties
use required
Facets
maxLength 64
Used by
Complex Type witsml:Connection
Source

<xs:attribute name="uid" use="required" type="eml:String64">
  <xs:annotation>
    <xs:documentation>Unique identifier for this instance of Connection.</xs:documentation>
  </xs:annotation>
</xs:attribute>
XML Schema documentation generated by ® XML Editor.
