Element witsml:Bend / witsml:Angle
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Angle of the bend.

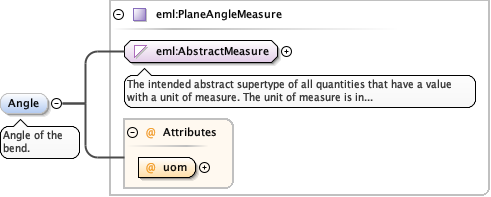

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure_uomMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure
Type eml:PlaneAngleMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:PlaneAngleUom required
Source

<xs:element name="Angle" type="eml:PlaneAngleMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Angle of the bend.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:Bend / witsml:DistBendBot
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Distance of the bend from the bottom of the component.

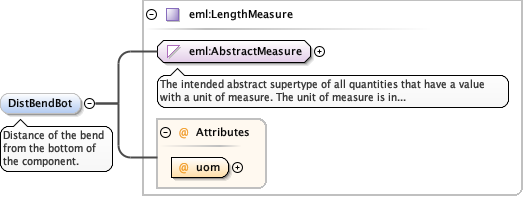

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="DistBendBot" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Distance of the bend from the bottom of the component.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:Bend / witsml:ExtensionNameValue
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Extensions to the schema based on a name-value construct.

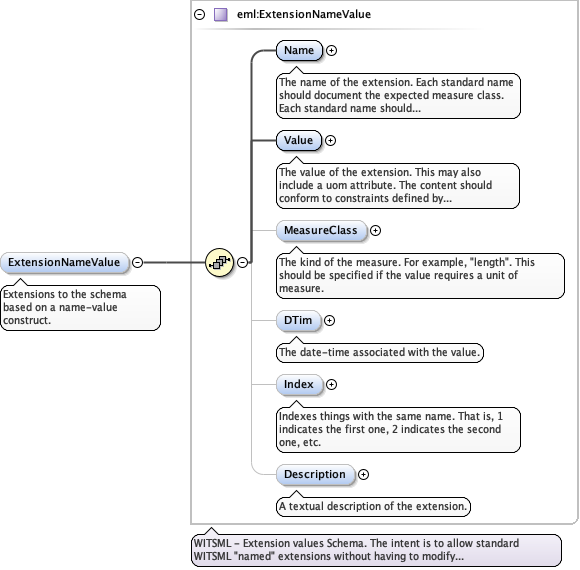

Diagram
DiagramAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_NameAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_ValueAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_MeasureClassAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_DTimAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_IndexAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_DescriptionAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue
Type eml:ExtensionNameValue
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children eml:DTim, eml:Description, eml:Index, eml:MeasureClass, eml:Name, eml:Value
Instance

<witsml:ExtensionNameValue xmlns:witsml="http://www.energistics.org/energyml/data/witsmlv2" xmlns:eml="http://www.energistics.org/energyml/data/commonv2">
  <eml:Name>{1,1}</eml:Name>
  <eml:Value uom="">{1,1}</eml:Value>
  <eml:MeasureClass>{0,1}</eml:MeasureClass>
  <eml:DTim>{0,1}</eml:DTim>
  <eml:Index>{0,1}</eml:Index>
  <eml:Description>{0,1}</eml:Description>
</witsml:ExtensionNameValue>
Source

<xs:element name="ExtensionNameValue" type="eml:ExtensionNameValue" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Extensions to the schema based on a name-value construct.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:Bend / witsml:ExtensionAny
Namespace http://www.energistics.org/energyml/data/witsmlv2

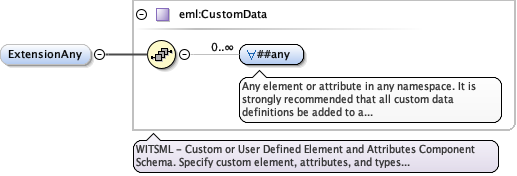

Diagram
DiagramAbstract_xsd_Complex_Type_eml_CustomData.tmp#CustomData
Type eml:CustomData
Properties
content complex
minOccurs 0
maxOccurs 1
Model
ANY element from ANY namespace
Source

<xs:element name="ExtensionAny" type="eml:CustomData" minOccurs="0" maxOccurs="1"/>
Complex Type witsml:Bend
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Tubular Bend Component Schema.

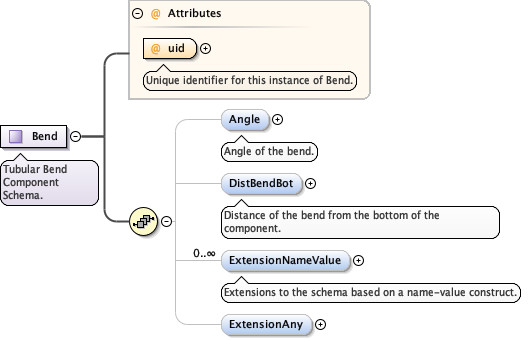

Diagram
DiagramTubular_xsd_Complex_Type_witsml_Bend.tmp#Bend_uidTubular_xsd_Complex_Type_witsml_Bend.tmp#Bend_AngleTubular_xsd_Complex_Type_witsml_Bend.tmp#Bend_DistBendBotTubular_xsd_Complex_Type_witsml_Bend.tmp#Bend_ExtensionNameValueTubular_xsd_Complex_Type_witsml_Bend.tmp#Bend_ExtensionAny
Used by
Model
Children witsml:Angle, witsml:DistBendBot, witsml:ExtensionAny, witsml:ExtensionNameValue
Attributes
QName Type Use Annotation
uid eml:String64 required
Unique identifier for this instance of Bend.
Source

<xs:complexType name="Bend">
  <xs:annotation>
    <xs:documentation>Tubular Bend Component Schema.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="Angle" type="eml:PlaneAngleMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Angle of the bend.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DistBendBot" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Distance of the bend from the bottom of the component.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ExtensionNameValue" type="eml:ExtensionNameValue" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Extensions to the schema based on a name-value construct.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ExtensionAny" type="eml:CustomData" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
  <xs:attribute name="uid" use="required" type="eml:String64">
    <xs:annotation>
      <xs:documentation>Unique identifier for this instance of Bend.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Attribute witsml:Bend / @uid
Namespace No namespace
Annotations

Unique identifier for this instance of Bend.
Type eml:String64
Type hierarchy
Properties
use required
Facets
maxLength 64
Used by
Complex Type witsml:Bend
Source

<xs:attribute name="uid" use="required" type="eml:String64">
  <xs:annotation>
    <xs:documentation>Unique identifier for this instance of Bend.</xs:documentation>
  </xs:annotation>
</xs:attribute>
