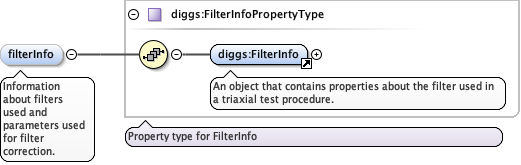

Element diggs:TriaxialTestTrialType / diggs:filterInfo
Namespace http://diggsml.org/schemas/2.6
Annotations

Information about filters used and parameters used for
filter correction.
Diagram
DiagramTestProceduresAll_xsd_Element_diggs_FilterInfo.tmp#http___diggsml.org_schemas_2.6_FilterInfoTestProceduresAll_xsd_Complex_Type_diggs_FilterInfoPropertyType.tmp#http___diggsml.org_schemas_2.6_FilterInfoPropertyType
Type diggs:FilterInfoPropertyType
Properties
content complex
minOccurs 0
Model
diggs:FilterInfo
Children diggs:FilterInfo
Instance

<diggs:filterInfo xmlns:diggs="http://diggsml.org/schemas/2.6">
  <diggs:FilterInfo gml:id="" xml:lang="">{1,1}</diggs:FilterInfo>
</diggs:filterInfo>
Source

<element minOccurs="0" name="filterInfo" type="diggs:FilterInfoPropertyType">
  <annotation>
    <documentation>Information about filters used and parameters used for filter correction.</documentation>
  </annotation>
</element>

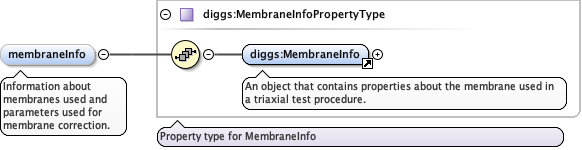

Element diggs:TriaxialTestTrialType / diggs:membraneInfo
Namespace http://diggsml.org/schemas/2.6
Annotations

Information about membranes used and parameters used for
membrane correction.
Diagram
DiagramTestProceduresAll_xsd_Element_diggs_MembraneInfo.tmp#http___diggsml.org_schemas_2.6_MembraneInfoTestProceduresAll_xsd_Complex_Type_diggs_MembraneInfoPropertyType.tmp#http___diggsml.org_schemas_2.6_MembraneInfoPropertyType
Type diggs:MembraneInfoPropertyType
Properties
content complex
minOccurs 0
Model
diggs:MembraneInfo
Children diggs:MembraneInfo
Instance

<diggs:membraneInfo xmlns:diggs="http://diggsml.org/schemas/2.6">
  <diggs:MembraneInfo gml:id="" xml:lang="">{1,1}</diggs:MembraneInfo>
</diggs:membraneInfo>
Source

<element minOccurs="0" name="membraneInfo" type="diggs:MembraneInfoPropertyType">
  <annotation>
    <documentation>Information about membranes used and parameters used for membrane correction.</documentation>
  </annotation>
</element>

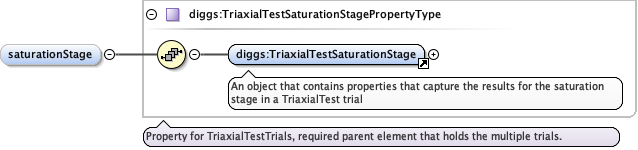

Element diggs:TriaxialTestTrialType / diggs:saturationStage
Namespace http://diggsml.org/schemas/2.6
Diagram
DiagramTestProceduresAll_xsd_Element_diggs_TriaxialTestSaturationStage.tmp#http___diggsml.org_schemas_2.6_TriaxialTestSaturationStageTestProceduresAll_xsd_Complex_Type_diggs_TriaxialTestSaturationStagePropertyType.tmp#http___diggsml.org_schemas_2.6_TriaxialTestSaturationStagePropertyType
Type diggs:TriaxialTestSaturationStagePropertyType
Properties
content complex
minOccurs 0
Model
diggs:TriaxialTestSaturationStage
Children diggs:TriaxialTestSaturationStage
Instance

<diggs:saturationStage xmlns:diggs="http://diggsml.org/schemas/2.6">
  <diggs:TriaxialTestSaturationStage gml:id="" xml:lang="">{1,1}</diggs:TriaxialTestSaturationStage>
</diggs:saturationStage>
Source

<element minOccurs="0" name="saturationStage" type="diggs:TriaxialTestSaturationStagePropertyType"/>

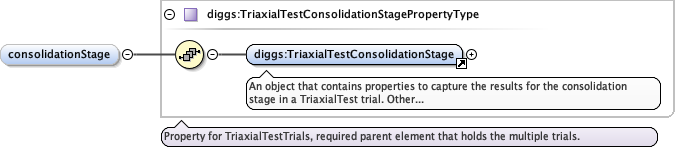

Element diggs:TriaxialTestTrialType / diggs:consolidationStage
Namespace http://diggsml.org/schemas/2.6
Diagram
DiagramTestProceduresAll_xsd_Element_diggs_TriaxialTestConsolidationStage.tmp#http___diggsml.org_schemas_2.6_TriaxialTestConsolidationStageTestProceduresAll_xsd_Complex_Type_diggs_TriaxialTestConsolidationStagePropertyType.tmp#http___diggsml.org_schemas_2.6_TriaxialTestConsolidationStagePropertyType
Type diggs:TriaxialTestConsolidationStagePropertyType
Properties
content complex
minOccurs 0
Model
diggs:TriaxialTestConsolidationStage
Children diggs:TriaxialTestConsolidationStage
Instance

<diggs:consolidationStage xmlns:diggs="http://diggsml.org/schemas/2.6">
  <diggs:TriaxialTestConsolidationStage gml:id="" xml:lang="">{1,1}</diggs:TriaxialTestConsolidationStage>
</diggs:consolidationStage>
Source

<element minOccurs="0" name="consolidationStage" type="diggs:TriaxialTestConsolidationStagePropertyType"/>

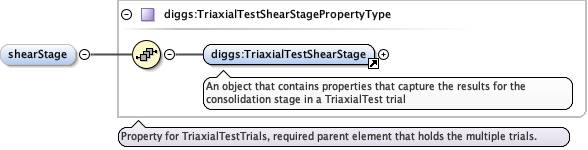

Element diggs:TriaxialTestTrialType / diggs:shearStage
Namespace http://diggsml.org/schemas/2.6
Diagram
DiagramTestProceduresAll_xsd_Element_diggs_TriaxialTestShearStage.tmp#http___diggsml.org_schemas_2.6_TriaxialTestShearStageTestProceduresAll_xsd_Complex_Type_diggs_TriaxialTestShearStagePropertyType.tmp#http___diggsml.org_schemas_2.6_TriaxialTestShearStagePropertyType
Type diggs:TriaxialTestShearStagePropertyType
Properties
content complex
minOccurs 0
Model
diggs:TriaxialTestShearStage
Children diggs:TriaxialTestShearStage
Instance

<diggs:shearStage xmlns:diggs="http://diggsml.org/schemas/2.6">
  <diggs:TriaxialTestShearStage gml:id="" xml:lang="">{1,1}</diggs:TriaxialTestShearStage>
</diggs:shearStage>
Source

<element minOccurs="0" name="shearStage" type="diggs:TriaxialTestShearStagePropertyType"/>

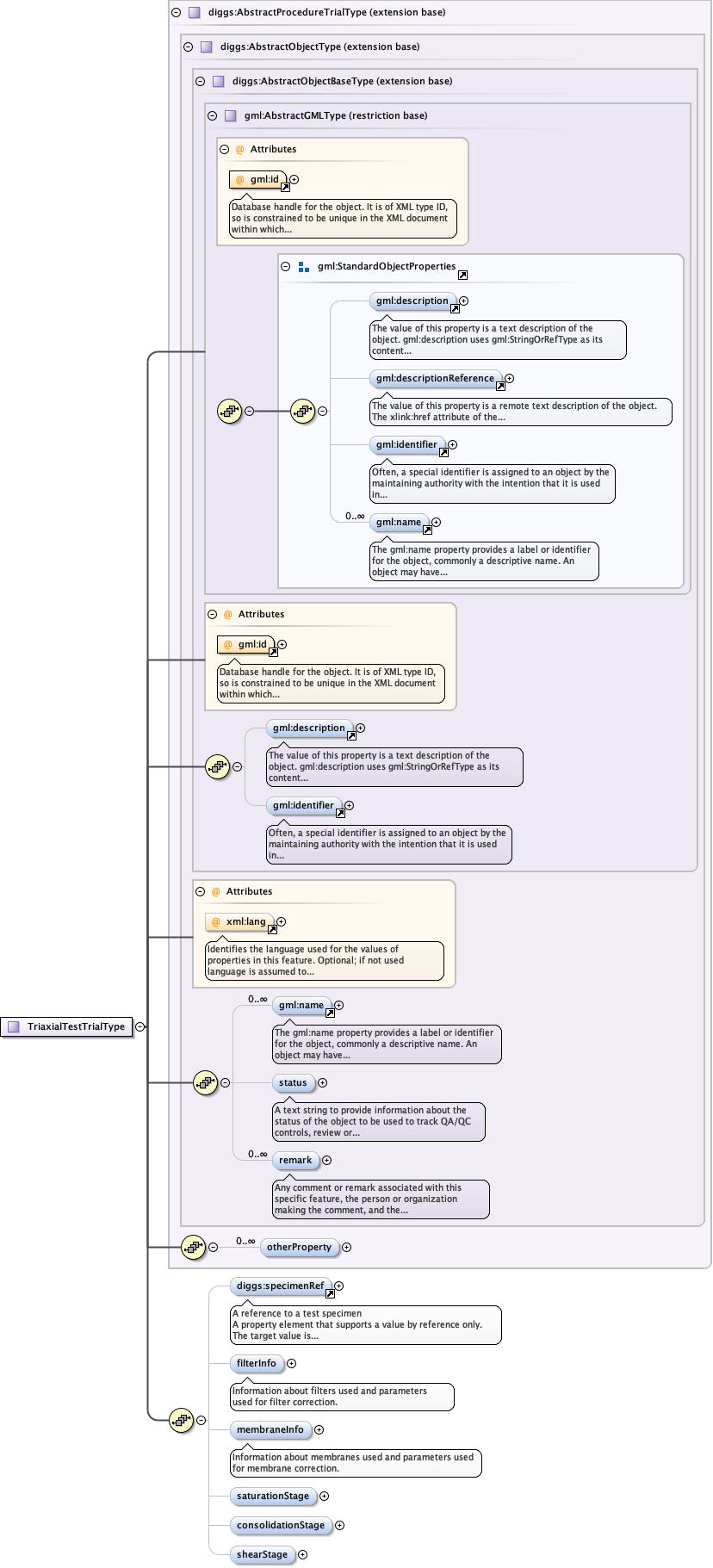

Complex Type diggs:TriaxialTestTrialType
Namespace http://diggsml.org/schemas/2.6
Annotations
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialType_otherPropertyKernel_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialTypeKernel_xsd_Element_diggs_specimenRef.tmp#specimenRefTestProceduresAll_xsd_Complex_Type_diggs_TriaxialTestTrialType.tmp#http___diggsml.org_schemas_2.6_TriaxialTestTrialType_filterInfoTestProceduresAll_xsd_Complex_Type_diggs_TriaxialTestTrialType.tmp#http___diggsml.org_schemas_2.6_TriaxialTestTrialType_membraneInfoTestProceduresAll_xsd_Complex_Type_diggs_TriaxialTestTrialType.tmp#http___diggsml.org_schemas_2.6_TriaxialTestTrialType_saturationStageTestProceduresAll_xsd_Complex_Type_diggs_TriaxialTestTrialType.tmp#http___diggsml.org_schemas_2.6_TriaxialTestTrialType_consolidationStageTestProceduresAll_xsd_Complex_Type_diggs_TriaxialTestTrialType.tmp#http___diggsml.org_schemas_2.6_TriaxialTestTrialType_shearStage
Type extension of diggs:AbstractProcedureTrialType
Type hierarchy
Used by
Element diggs:TriaxialTestTrial
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:otherProperty* , diggs:specimenRef{0,1} , diggs:filterInfo{0,1} , diggs:membraneInfo{0,1} , diggs:saturationStage{0,1} , diggs:consolidationStage{0,1} , diggs:shearStage{0,1}
Children diggs:consolidationStage, diggs:filterInfo, diggs:membraneInfo, diggs:otherProperty, diggs:remark, diggs:saturationStage, diggs:shearStage, diggs:specimenRef, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="TriaxialTestTrialType">
  <annotation>
    <documentation/>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractProcedureTrialType">
      <sequence>
        <element minOccurs="0" ref="diggs:specimenRef">
        </element>
        <element minOccurs="0" name="filterInfo" type="diggs:FilterInfoPropertyType">
          <annotation>
            <documentation>Information about filters used and parameters used for filter correction.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="membraneInfo" type="diggs:MembraneInfoPropertyType">
          <annotation>
            <documentation>Information about membranes used and parameters used for membrane correction.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="saturationStage" type="diggs:TriaxialTestSaturationStagePropertyType"/>
        <element minOccurs="0" name="consolidationStage" type="diggs:TriaxialTestConsolidationStagePropertyType"/>
        <element minOccurs="0" name="shearStage" type="diggs:TriaxialTestShearStagePropertyType"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
