Element diggs:ShearingIncrementType / diggs:axialLoad
Namespace http://diggsml.org/schemas/2.6
Annotations

Load applied to the top of the
sample

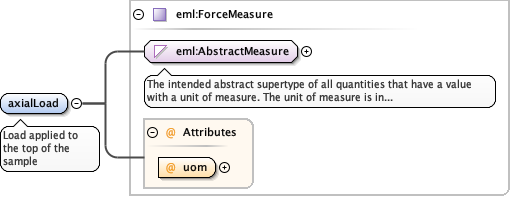

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element minOccurs="1" name="axialLoad" type="eml:ForceMeasure">
  <annotation>
    <documentation>Load applied to the top of the sample</documentation>
  </annotation>
</element>
Element diggs:ShearingIncrementType / diggs:axialDeflection
Namespace http://diggsml.org/schemas/2.6
Annotations

Change in the axial length of the sample.

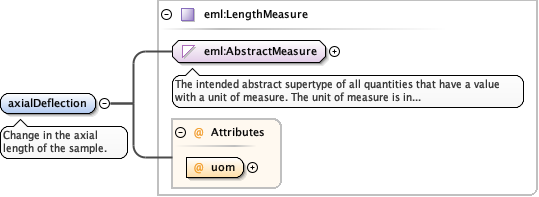

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="1" name="axialDeflection" type="eml:LengthMeasure">
  <annotation>
    <documentation>Change in the axial length of the sample.</documentation>
  </annotation>
</element>
Element diggs:ShearingIncrementType / diggs:deviatorStress
Namespace http://diggsml.org/schemas/2.6
Annotations

The difference between the major and minor principal
stresses, computed from the axial load divided by the
cross-sectional area of the specimen

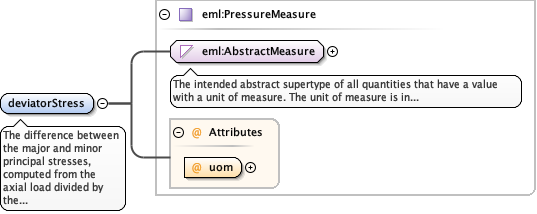

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="1" name="deviatorStress" type="eml:PressureMeasure">
  <annotation>
    <documentation>The difference between the major and minor principal stresses, computed from the axial load divided by the cross-sectional area of the specimen</documentation>
  </annotation>
</element>
Element diggs:ShearingIncrementType / diggs:axialStrain
Namespace http://diggsml.org/schemas/2.6
Annotations

Strain deflection of sample under load

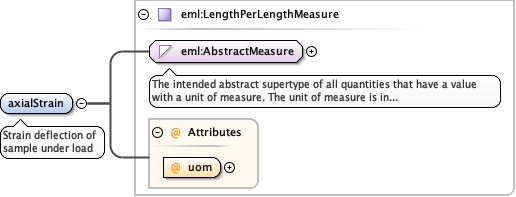

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthPerLengthMeasure.tmp#LengthPerLengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthPerLengthMeasure.tmp#LengthPerLengthMeasure
Type eml:LengthPerLengthMeasure
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use
uom eml:LengthPerLengthUom required
Source

<element minOccurs="1" name="axialStrain" type="eml:LengthPerLengthMeasure">
  <annotation>
    <documentation>Strain deflection of sample under load</documentation>
  </annotation>
</element>
Element diggs:ShearingIncrementType / diggs:elapsedTime
Namespace http://diggsml.org/schemas/2.6
Annotations

Time since the initiation of consolidation
stage

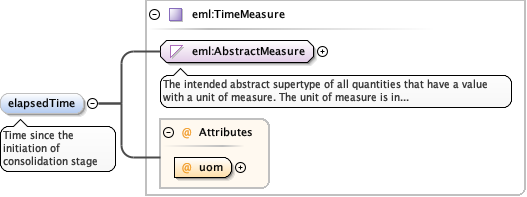

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure_uomMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure
Type eml:TimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:TimeUom required
Source

<element minOccurs="0" name="elapsedTime" type="eml:TimeMeasure">
  <annotation>
    <documentation>Time since the initiation of consolidation stage</documentation>
  </annotation>
</element>
Element diggs:ShearingIncrementType / diggs:totalPoreWaterPressure
Namespace http://diggsml.org/schemas/2.6
Annotations

Total Pore water pressure measured

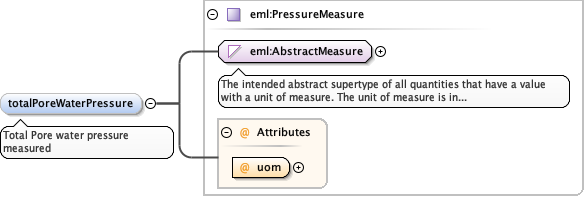

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="0" name="totalPoreWaterPressure" type="eml:PressureMeasure">
  <annotation>
    <documentation>Total Pore water pressure measured</documentation>
  </annotation>
</element>
Element diggs:ShearingIncrementType / diggs:inducedPoreWaterPressure
Namespace http://diggsml.org/schemas/2.6
Annotations

Pore water pressure induced under loading defined
as total pore water pressure minus back
pressure

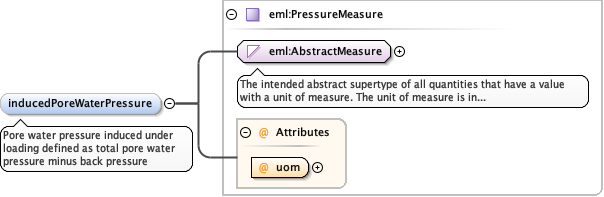

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="0" name="inducedPoreWaterPressure" type="eml:PressureMeasure">
  <annotation>
    <documentation>Pore water pressure induced under loading defined as total pore water pressure minus back pressure</documentation>
  </annotation>
</element>
Element diggs:ShearingIncrementType / diggs:totalCellPressure
Namespace http://diggsml.org/schemas/2.6
Annotations

The measured confining pressure in the cell.

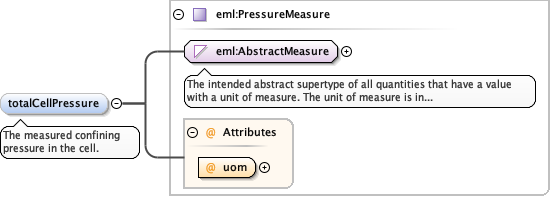

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="0" name="totalCellPressure" type="eml:PressureMeasure">
  <annotation>
    <documentation>The measured confining pressure in the cell.</documentation>
  </annotation>
</element>
Complex Type diggs:ShearingIncrementType
Namespace http://diggsml.org/schemas/2.6
Annotations

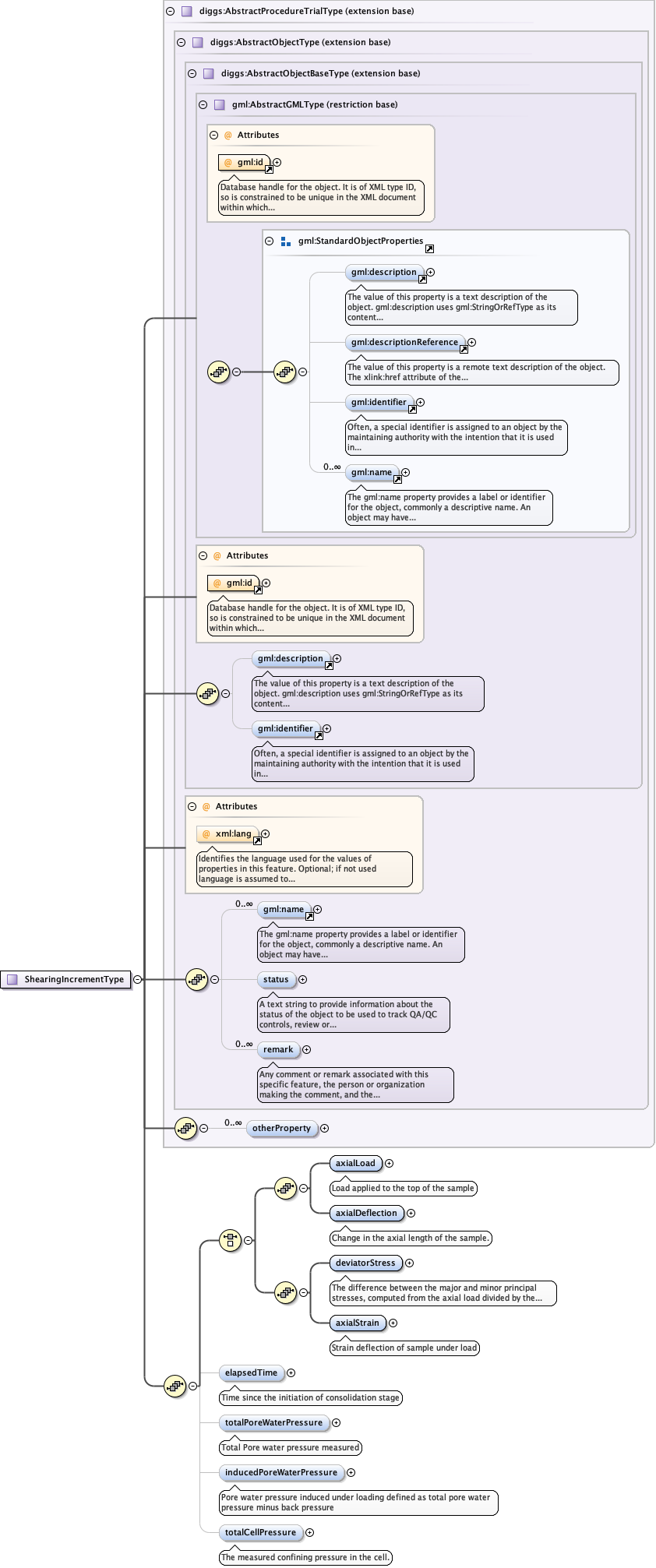

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialType_otherPropertyKernel_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialTypeTestProceduresAll_xsd_Complex_Type_diggs_ShearingIncrementType.tmp#http___diggsml.org_schemas_2.6_ShearingIncrementType_axialLoadTestProceduresAll_xsd_Complex_Type_diggs_ShearingIncrementType.tmp#http___diggsml.org_schemas_2.6_ShearingIncrementType_axialDeflectionTestProceduresAll_xsd_Complex_Type_diggs_ShearingIncrementType.tmp#http___diggsml.org_schemas_2.6_ShearingIncrementType_deviatorStressTestProceduresAll_xsd_Complex_Type_diggs_ShearingIncrementType.tmp#http___diggsml.org_schemas_2.6_ShearingIncrementType_axialStrainTestProceduresAll_xsd_Complex_Type_diggs_ShearingIncrementType.tmp#http___diggsml.org_schemas_2.6_ShearingIncrementType_elapsedTimeTestProceduresAll_xsd_Complex_Type_diggs_ShearingIncrementType.tmp#http___diggsml.org_schemas_2.6_ShearingIncrementType_totalPoreWaterPressureTestProceduresAll_xsd_Complex_Type_diggs_ShearingIncrementType.tmp#http___diggsml.org_schemas_2.6_ShearingIncrementType_inducedPoreWaterPressureTestProceduresAll_xsd_Complex_Type_diggs_ShearingIncrementType.tmp#http___diggsml.org_schemas_2.6_ShearingIncrementType_totalCellPressure
Type extension of diggs:AbstractProcedureTrialType
Type hierarchy
Used by
Element diggs:ShearingIncrement
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:otherProperty* , ((diggs:axialLoad , diggs:axialDeflection) | (diggs:deviatorStress , diggs:axialStrain)) , diggs:elapsedTime{0,1} , diggs:totalPoreWaterPressure{0,1} , diggs:inducedPoreWaterPressure{0,1} , diggs:totalCellPressure{0,1}
Children diggs:axialDeflection, diggs:axialLoad, diggs:axialStrain, diggs:deviatorStress, diggs:elapsedTime, diggs:inducedPoreWaterPressure, diggs:otherProperty, diggs:remark, diggs:status, diggs:totalCellPressure, diggs:totalPoreWaterPressure, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="ShearingIncrementType">
  <annotation>
    <documentation/>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractProcedureTrialType">
      <sequence>
        <choice>
          <sequence>
            <element minOccurs="1" name="axialLoad" type="eml:ForceMeasure">
              <annotation>
                <documentation>Load applied to the top of the sample</documentation>
              </annotation>
            </element>
            <element minOccurs="1" name="axialDeflection" type="eml:LengthMeasure">
              <annotation>
                <documentation>Change in the axial length of the sample.</documentation>
              </annotation>
            </element>
          </sequence>
          <sequence>
            <element minOccurs="1" name="deviatorStress" type="eml:PressureMeasure">
              <annotation>
                <documentation>The difference between the major and minor principal stresses, computed from the axial load divided by the cross-sectional area of the specimen</documentation>
              </annotation>
            </element>
            <element minOccurs="1" name="axialStrain" type="eml:LengthPerLengthMeasure">
              <annotation>
                <documentation>Strain deflection of sample under load</documentation>
              </annotation>
            </element>
          </sequence>
        </choice>
        <element minOccurs="0" name="elapsedTime" type="eml:TimeMeasure">
          <annotation>
            <documentation>Time since the initiation of consolidation stage</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalPoreWaterPressure" type="eml:PressureMeasure">
          <annotation>
            <documentation>Total Pore water pressure measured</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="inducedPoreWaterPressure" type="eml:PressureMeasure">
          <annotation>
            <documentation>Pore water pressure induced under loading defined as total pore water pressure minus back pressure</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalCellPressure" type="eml:PressureMeasure">
          <annotation>
            <documentation>The measured confining pressure in the cell.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
