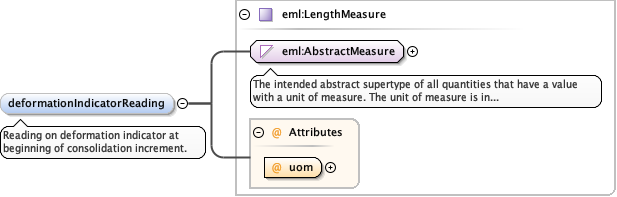

Element diggs:ConsolidationIncrementType / diggs:deformationIndicatorReading
Namespace http://diggsml.org/schemas/2.6
Annotations

Reading on deformation indicator at beginning of
consolidation increment.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="deformationIndicatorReading" type="eml:LengthMeasure">
  <annotation>
    <documentation>Reading on deformation indicator at beginning of consolidation increment.</documentation>
  </annotation>
</element>

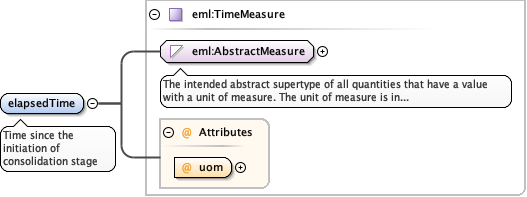

Element diggs:ConsolidationIncrementType / diggs:elapsedTime
Namespace http://diggsml.org/schemas/2.6
Annotations

Time since the initiation of consolidation
stage
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure_uomMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure
Type eml:TimeMeasure
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use
uom eml:TimeUom required
Source

<element minOccurs="1" name="elapsedTime" type="eml:TimeMeasure">
  <annotation>
    <documentation>Time since the initiation of consolidation stage</documentation>
  </annotation>
</element>

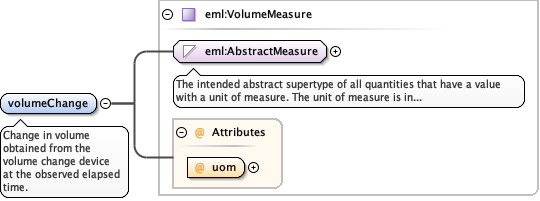

Element diggs:ConsolidationIncrementType / diggs:volumeChange
Namespace http://diggsml.org/schemas/2.6
Annotations

Change in volume obtained from the volume change device
at the observed elapsed time.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure
Type eml:VolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use
uom eml:VolumeUom required
Source

<element minOccurs="1" name="volumeChange" type="eml:VolumeMeasure">
  <annotation>
    <documentation>Change in volume obtained from the volume change device at the observed elapsed time.</documentation>
  </annotation>
</element>

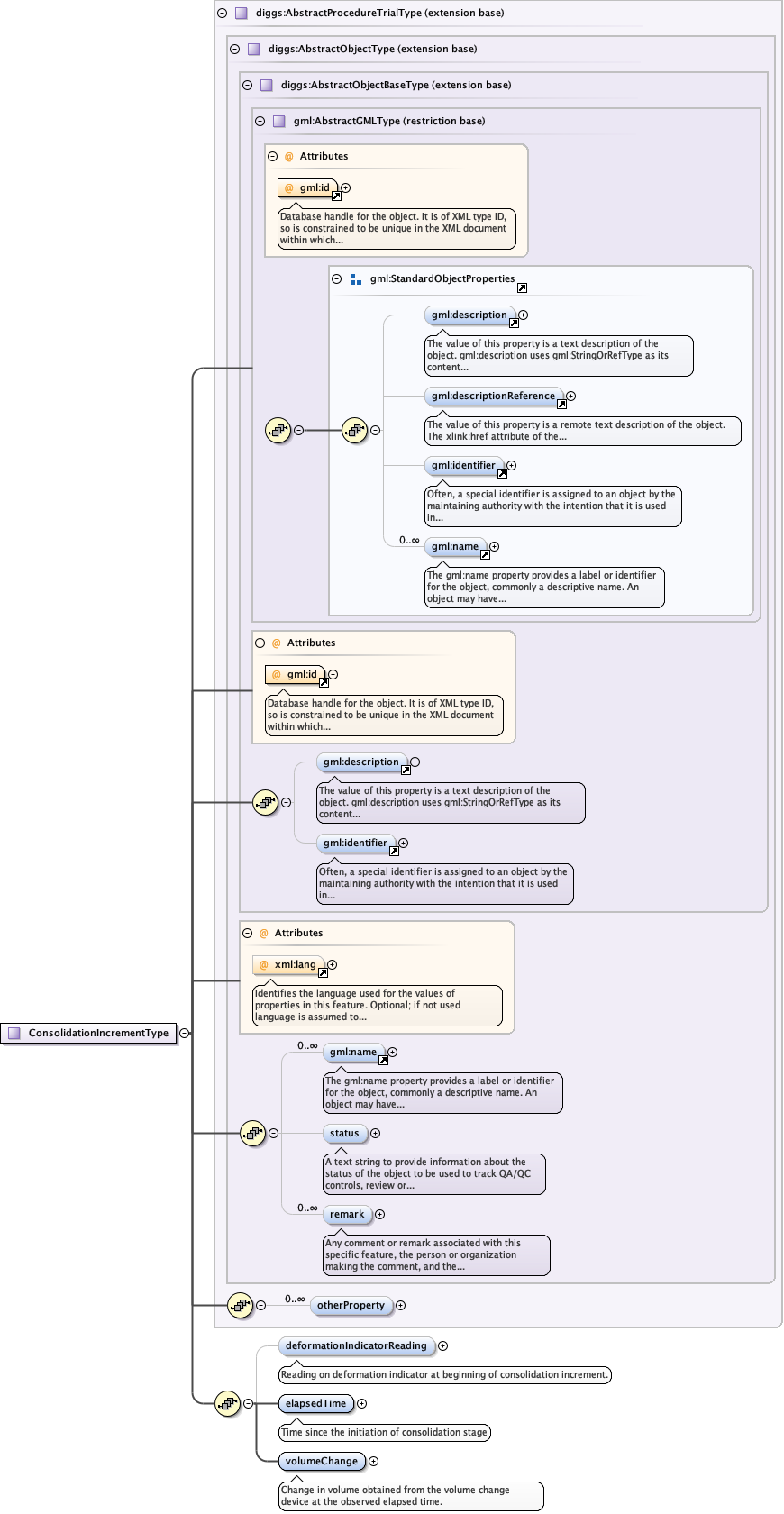

Complex Type diggs:ConsolidationIncrementType
Namespace http://diggsml.org/schemas/2.6
Annotations
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialType_otherPropertyKernel_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialTypeTestProceduresAll_xsd_Complex_Type_diggs_ConsolidationIncrementType.tmp#http___diggsml.org_schemas_2.6_ConsolidationIncrementType_deformationIndicatorReadingTestProceduresAll_xsd_Complex_Type_diggs_ConsolidationIncrementType.tmp#http___diggsml.org_schemas_2.6_ConsolidationIncrementType_elapsedTimeTestProceduresAll_xsd_Complex_Type_diggs_ConsolidationIncrementType.tmp#http___diggsml.org_schemas_2.6_ConsolidationIncrementType_volumeChange
Type extension of diggs:AbstractProcedureTrialType
Type hierarchy
Used by
Element diggs:ConsolidationIncrement
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:otherProperty* , diggs:deformationIndicatorReading{0,1} , diggs:elapsedTime , diggs:volumeChange
Children diggs:deformationIndicatorReading, diggs:elapsedTime, diggs:otherProperty, diggs:remark, diggs:status, diggs:volumeChange, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="ConsolidationIncrementType">
  <annotation>
    <documentation/>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractProcedureTrialType">
      <sequence>
        <element minOccurs="0" name="deformationIndicatorReading" type="eml:LengthMeasure">
          <annotation>
            <documentation>Reading on deformation indicator at beginning of consolidation increment.</documentation>
          </annotation>
        </element>
        <element minOccurs="1" name="elapsedTime" type="eml:TimeMeasure">
          <annotation>
            <documentation>Time since the initiation of consolidation stage</documentation>
          </annotation>
        </element>
        <element minOccurs="1" name="volumeChange" type="eml:VolumeMeasure">
          <annotation>
            <documentation>Change in volume obtained from the volume change device at the observed elapsed time.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
