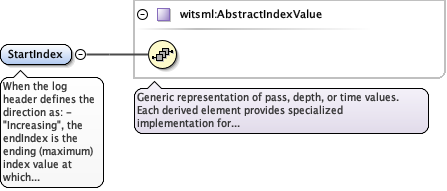

Element witsml:IndexRangeContext / witsml:StartIndex
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

When the log header defines the direction as:

	- "Increasing", the endIndex is the ending (maximum) index value at which the last non-null data point is located.
	-  “Decreasing”, the endIndex is the ending (minimum) index value at which the last non-null data point is located.
Diagram
DiagramLog_xsd_Complex_Type_witsml_AbstractIndexValue.tmp#AbstractIndexValue
Type witsml:AbstractIndexValue
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Source

<xs:element name="StartIndex" type="witsml:AbstractIndexValue" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>When the log header defines the direction as: - "Increasing", the endIndex is the ending (maximum) index value at which the last non-null data point is located. - “Decreasing”, the endIndex is the ending (minimum) index value at which the last non-null data point is located.</xs:documentation>
  </xs:annotation>
</xs:element>

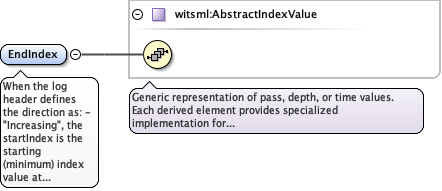

Element witsml:IndexRangeContext / witsml:EndIndex
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

When the log header defines the direction as:

	- "Increasing", the startIndex is the starting (minimum) index value at which the first non-null data point is located.
	- "Decreasing", the startIndex is the starting (maximum) index value at which the first non-null data point is located.
Diagram
DiagramLog_xsd_Complex_Type_witsml_AbstractIndexValue.tmp#AbstractIndexValue
Type witsml:AbstractIndexValue
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Source

<xs:element name="EndIndex" type="witsml:AbstractIndexValue" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>When the log header defines the direction as: - "Increasing", the startIndex is the starting (minimum) index value at which the first non-null data point is located. - "Decreasing", the startIndex is the starting (maximum) index value at which the first non-null data point is located.</xs:documentation>
  </xs:annotation>
</xs:element>

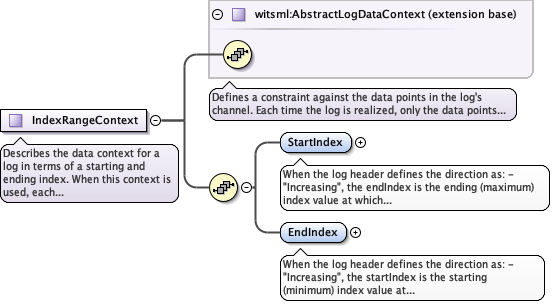

Complex Type witsml:IndexRangeContext
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Describes the data context for a log in terms of a starting and ending index. When this context is used, each realization of the log includes all data points from the log's channel set that follow between the specified start and end index.
Diagram
DiagramLog_xsd_Complex_Type_witsml_AbstractLogDataContext.tmp#AbstractLogDataContextLog_xsd_Complex_Type_witsml_IndexRangeContext.tmp#IndexRangeContext_StartIndexLog_xsd_Complex_Type_witsml_IndexRangeContext.tmp#IndexRangeContext_EndIndex
Type extension of witsml:AbstractLogDataContext
Type hierarchy
Model
Children witsml:EndIndex, witsml:StartIndex
Source

<xs:complexType name="IndexRangeContext">
  <xs:annotation>
    <xs:documentation>Describes the data context for a log in terms of a starting and ending index. When this context is used, each realization of the log includes all data points from the log's channel set that follow between the specified start and end index.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="witsml:AbstractLogDataContext">
      <xs:sequence>
        <xs:element name="StartIndex" type="witsml:AbstractIndexValue" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>When the log header defines the direction as: - "Increasing", the endIndex is the ending (maximum) index value at which the last non-null data point is located. - “Decreasing”, the endIndex is the ending (minimum) index value at which the last non-null data point is located.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="EndIndex" type="witsml:AbstractIndexValue" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>When the log header defines the direction as: - "Increasing", the startIndex is the starting (minimum) index value at which the first non-null data point is located. - "Decreasing", the startIndex is the starting (maximum) index value at which the first non-null data point is located.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
