Schema documentation for component diggs:WaterContentType

Showing:

Attributes

Diagrams

Properties

Source

Used by

Complex Type diggs:WaterContentType

Namespace

http://diggsml.org/schemas/2.6

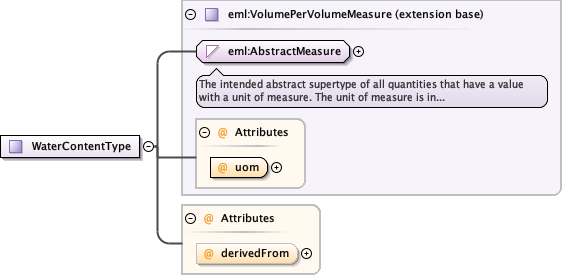

Diagram

Type

extension of eml:VolumePerVolumeMeasure

Type hierarchy

double
- eml:AbstractMeasure
  - eml:VolumePerVolumeMeasure
    - diggs:WaterContentType

Used by

Elements

diggs:SpecimenConditionsType/diggs:waterContent, diggs_geo:CasagrandeTrialType/diggs_geo:waterContent, diggs_geo:FallConeTrialType/diggs_geo:waterContent, diggs_geo:LabCompactionTestTrialType/diggs_geo:waterContent, diggs_geo:PlasticLimitTrialType/diggs_geo:waterContent, diggs_geo:ShrinkageLimitTrialType/diggs_geo:waterContentWetSoil, diggs_geo:TriaxialTestShearStageType/diggs_geo:waterContentPostShear

Attributes

QName	Type	Use
derivedFrom	diggs:WaterContentMethodType	optional
uom	eml:VolumePerVolumeUom	required

Source

<complexType name="WaterContentType">
  <simpleContent>
    <extension base="eml:VolumePerVolumeMeasure">
      <attribute name="derivedFrom" type="diggs:WaterContentMethodType"/>
    </extension>
  </simpleContent>
</complexType>

Attribute diggs:WaterContentType / @derivedFrom

Namespace

No namespace

Type

diggs:WaterContentMethodType

Properties

content

simple

Used by

Complex Type

diggs:WaterContentType

Source

<attribute name="derivedFrom" type="diggs:WaterContentMethodType"/>
