Element diggs:StratigraphyObservationType / diggs:stratigraphicUnitName
Namespace http://diggsml.org/schemas/2.6
Annotations

The name of the stratigraphic unit (eg. Harold Formation)
assigned to this zone. Should come from a controlled list based on
the subtype of the layer system.

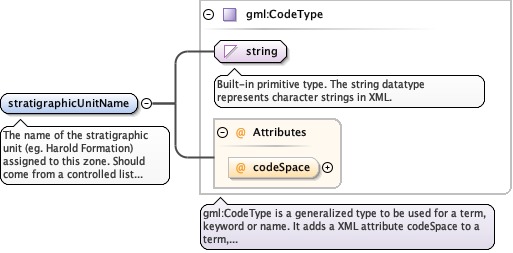

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
maxOccurs unbounded
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="stratigraphicUnitName" type="gml:CodeType" maxOccurs="unbounded">
  <annotation>
    <documentation>The name of the stratigraphic unit (eg. Harold Formation) assigned to this zone. Should come from a controlled list based on the subtype of the layer system.</documentation>
  </annotation>
</element>
Element diggs:StratigraphyObservationType / diggs:stratigraphicUnitDescription
Namespace http://diggsml.org/schemas/2.6
Annotations

An optional description of the named stratigraphic
unit

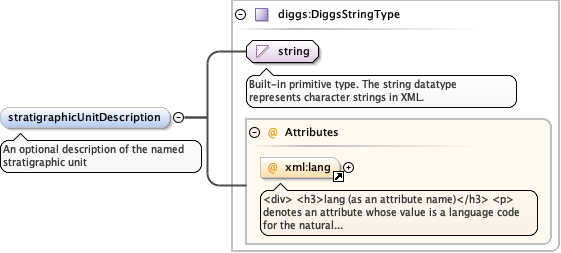

Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element minOccurs="0" name="stratigraphicUnitDescription" type="diggs:DiggsStringType">
  <annotation>
    <documentation>An optional description of the named stratigraphic unit</documentation>
  </annotation>
</element>
Element diggs:StratigraphyObservationType / diggs:unitType
Namespace http://diggsml.org/schemas/2.6
Diagram
DiagramKernel_xsd_Simple_Type_diggs_StratUnitExtEnumType.tmp#StratUnitExtEnumType
Type diggs:StratUnitExtEnumType
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="unitType" type="diggs:StratUnitExtEnumType"/>
Complex Type diggs:StratigraphyObservationType
Namespace http://diggsml.org/schemas/2.6

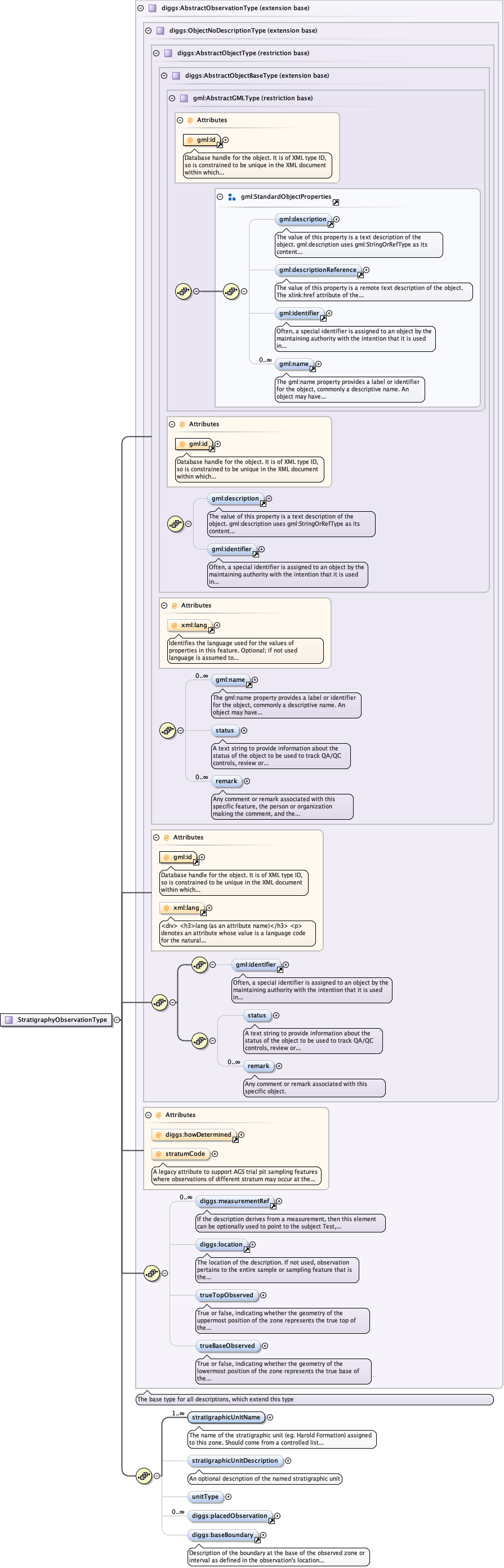

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idxml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_ObjectNoDescriptionType.tmp#ObjectNoDescriptionType_statusKernel_xsd_Complex_Type_diggs_ObjectNoDescriptionType.tmp#ObjectNoDescriptionType_remarkKernel_xsd_Complex_Type_diggs_ObjectNoDescriptionType.tmp#ObjectNoDescriptionTypeKernel_xsd_Attribute_diggs_howDetermined.tmp#howDeterminedKernel_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_stratumCodeKernel_xsd_Element_diggs_measurementRef.tmp#measurementRefKernel_xsd_Element_diggs_location.tmp#locationKernel_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_trueTopObservedKernel_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_trueBaseObservedKernel_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationTypeKernel_xsd_Complex_Type_diggs_StratigraphyObservationType.tmp#StratigraphyObservationType_stratigraphicUnitNameKernel_xsd_Complex_Type_diggs_StratigraphyObservationType.tmp#StratigraphyObservationType_stratigraphicUnitDescriptionKernel_xsd_Complex_Type_diggs_StratigraphyObservationType.tmp#StratigraphyObservationType_unitTypeKernel_xsd_Element_diggs_placedObservation_1.tmp#http___diggsml.org_schemas_2.6_placedObservationKernel_xsd_Element_diggs_baseBoundary.tmp#baseBoundary
Type extension of diggs:AbstractObservationType
Type hierarchy
Used by
Model
Children diggs:baseBoundary, diggs:location, diggs:measurementRef, diggs:placedObservation, diggs:remark, diggs:status, diggs:stratigraphicUnitDescription, diggs:stratigraphicUnitName, diggs:trueBaseObserved, diggs:trueTopObserved, diggs:unitType, gml:identifier
Attributes
QName Type Use Annotation
diggs:howDetermined diggs:DescriptorMethodEnumType optional
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
stratumCode string optional
A legacy attribute to support AGS trial pit sampling features where observations of different stratum may occur at the same depth in a pit. It is a reference letter or number whose sole purpose is to link the stratum shown on a face sketch of the trial pit to the specific observation.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="StratigraphyObservationType">
  <complexContent>
    <extension base="diggs:AbstractObservationType">
      <sequence>
        <element name="stratigraphicUnitName" type="gml:CodeType" maxOccurs="unbounded">
          <annotation>
            <documentation>The name of the stratigraphic unit (eg. Harold Formation) assigned to this zone. Should come from a controlled list based on the subtype of the layer system.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="stratigraphicUnitDescription" type="diggs:DiggsStringType">
          <annotation>
            <documentation>An optional description of the named stratigraphic unit</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="unitType" type="diggs:StratUnitExtEnumType"/>
        <element maxOccurs="unbounded" minOccurs="0" ref="diggs:placedObservation"/>
        <element minOccurs="0" ref="diggs:baseBoundary">
          <annotation>
            <documentation>Description of the boundary at the base of the observed zone or interval as defined in the observation's location property</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
