Schema documentation for component diggs:ResultsPropertyType

Showing:

Diagrams

Model

Source

Used by

Complex Type diggs:ResultsPropertyType

Namespace

http://diggsml.org/schemas/2.6

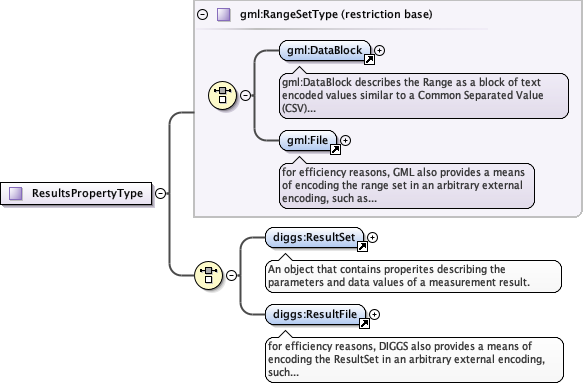

Diagram

Type

restriction of gml:RangeSetType

Type hierarchy

gml:RangeSetType
- diggs:ResultsPropertyType

Used by

Element

diggs:results

Model

diggs:ResultSet | diggs:ResultFile

Children

diggs:ResultFile, diggs:ResultSet

Source

<complexType name="ResultsPropertyType">
  <complexContent>
    <restriction base="gml:RangeSetType">
      <choice>
        <!--DSB: REMOVED FROM PROFILE
        <element ref="gml:ValueArray" maxOccurs="unbounded"/>
      <element ref="gml:AbstractScalarValueList" maxOccurs="unbounded"/>
      -->
        <element ref="diggs:ResultSet" minOccurs="1"/>
        <!--DSB: REMOVED FROM PROFILE
        <element ref="gml:File"/>
        -->
        <element ref="diggs:ResultFile"/>
      </choice>
    </restriction>
  </complexContent>
</complexType>
