Schema documentation for component diggs:mimeType

Showing:

Diagrams

Model

Properties

Source

Used by

Element diggs:ResultFileType / diggs:mimeType

Namespace

http://diggsml.org/schemas/2.6

Diagram

Type

anyURI

Properties

content	simple
minOccurs	0

Source

<element minOccurs="0" name="mimeType" type="anyURI"/>

Element diggs:ResultFileType / diggs:compression

Namespace

http://diggsml.org/schemas/2.6

Diagram

Type

anyURI

Properties

content	simple
minOccurs	0

Source

<element minOccurs="0" name="compression" type="anyURI"/>

Complex Type diggs:ResultFileType

Namespace

http://diggsml.org/schemas/2.6

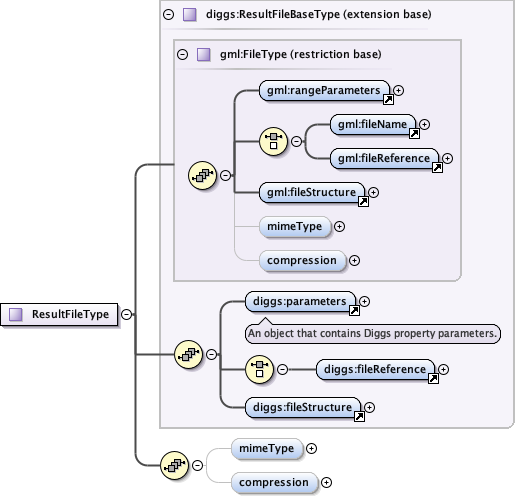

Diagram

Type

extension of diggs:ResultFileBaseType

Type hierarchy

gml:FileType
- diggs:ResultFileBaseType
  - diggs:ResultFileType

Used by

Element

diggs:ResultFile

Model

diggs:parameters , (diggs:fileReference) , diggs:fileStructure , diggs:mimeType{0,1} , diggs:compression{0,1}

Children

diggs:compression, diggs:fileReference, diggs:fileStructure, diggs:mimeType, diggs:parameters

Source

<complexType name="ResultFileType">
  <complexContent>
    <extension base="diggs:ResultFileBaseType">
      <sequence>
        <element minOccurs="0" name="mimeType" type="anyURI"/>
        <element minOccurs="0" name="compression" type="anyURI"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
