Schema documentation for component diggs:LocalityPropertyType

Showing:

Diagrams

Model

Source

Used by

Complex Type diggs:LocalityPropertyType

Namespace

http://diggsml.org/schemas/2.6

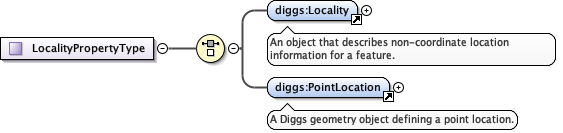

Diagram

Used by

Elements

diggs:AbstractProjectType/diggs:locality, diggs:AbstractSamplingFeatureType/diggs:locality, diggs:ChainOfCustodyEventType/diggs:storageLocation

Model

diggs:Locality | diggs:PointLocation

Children

diggs:Locality, diggs:PointLocation

Source

<complexType name="LocalityPropertyType">
  <choice>
    <element ref="diggs:Locality" minOccurs="1" maxOccurs="1"/>
    <element ref="diggs:PointLocation"/>
  </choice>
</complexType>
