Element diggs:LithologyObservationType / diggs:primaryLithology
Namespace http://diggsml.org/schemas/2.6

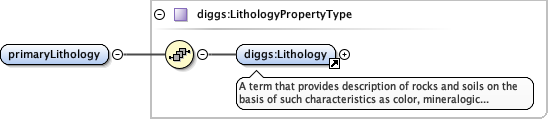

Diagram
DiagramKernel_xsd_Element_diggs_Lithology.tmp#LithologyKernel_xsd_Complex_Type_diggs_LithologyPropertyType.tmp#LithologyPropertyType
Type diggs:LithologyPropertyType
Properties
content complex
Model
Children diggs:Lithology
Instance

<diggs:primaryLithology xmlns:diggs="http://diggsml.org/schemas/2.6">
  <diggs:Lithology gml:id="" xml:lang="">{1,1}</diggs:Lithology>
</diggs:primaryLithology>
Source

<element name="primaryLithology" type="diggs:LithologyPropertyType"/>
Element diggs:LithologyObservationType / diggs:componentLithology
Namespace http://diggsml.org/schemas/2.6
Annotations

A description of the lithologies that make up a
subsidiary portion of the overall lithologic classification of the
layer or sample, or exist as specific components of the
primarylithology property

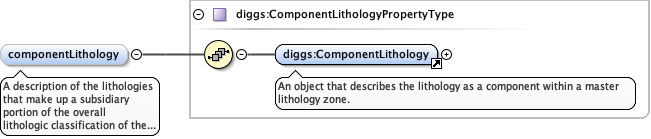

Diagram
DiagramKernel_xsd_Element_diggs_ComponentLithology.tmp#ComponentLithologyKernel_xsd_Complex_Type_diggs_ComponentLithologyPropertyType.tmp#ComponentLithologyPropertyType
Type diggs:ComponentLithologyPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:ComponentLithology
Instance

<diggs:componentLithology xmlns:diggs="http://diggsml.org/schemas/2.6">
  <diggs:ComponentLithology association="" gml:id="" xml:lang="">{1,1}</diggs:ComponentLithology>
</diggs:componentLithology>
Source

<element minOccurs="0" name="componentLithology" type="diggs:ComponentLithologyPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>A description of the lithologies that make up a subsidiary portion of the overall lithologic classification of the layer or sample, or exist as specific components of the primarylithology property</documentation>
  </annotation>
</element>
Complex Type diggs:LithologyObservationType
Namespace http://diggsml.org/schemas/2.6

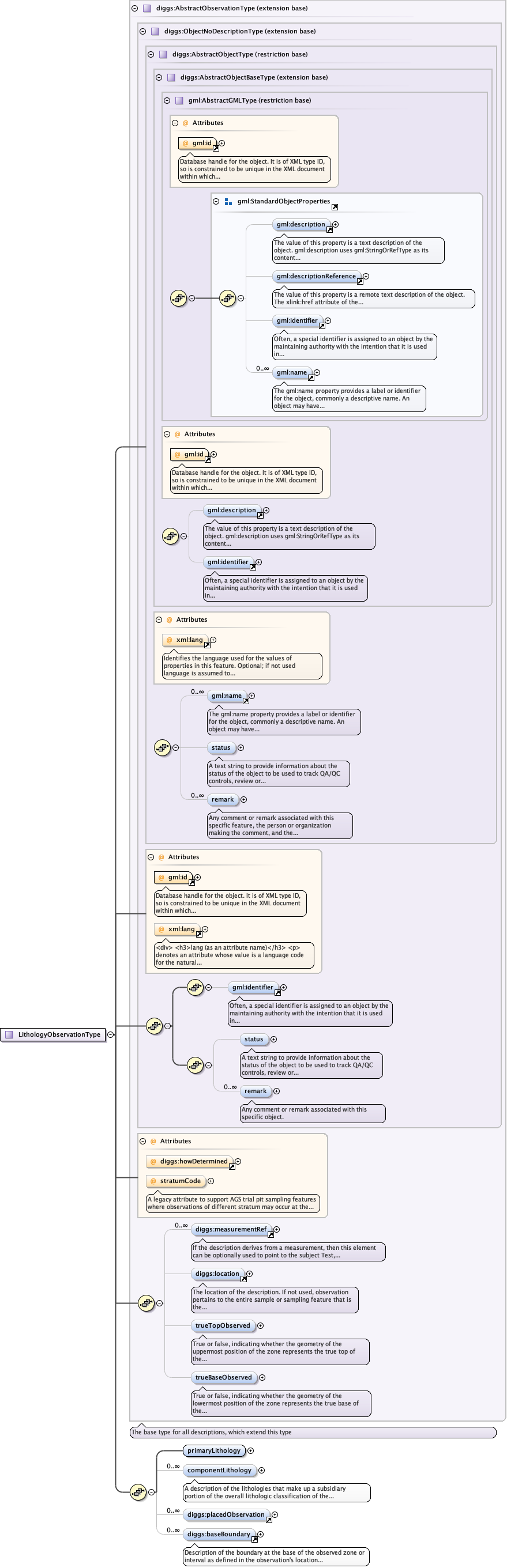

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idxml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_ObjectNoDescriptionType.tmp#ObjectNoDescriptionType_statusKernel_xsd_Complex_Type_diggs_ObjectNoDescriptionType.tmp#ObjectNoDescriptionType_remarkKernel_xsd_Complex_Type_diggs_ObjectNoDescriptionType.tmp#ObjectNoDescriptionTypeKernel_xsd_Attribute_diggs_howDetermined.tmp#howDeterminedKernel_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_stratumCodeKernel_xsd_Element_diggs_measurementRef.tmp#measurementRefKernel_xsd_Element_diggs_location.tmp#locationKernel_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_trueTopObservedKernel_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_trueBaseObservedKernel_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationTypeKernel_xsd_Complex_Type_diggs_LithologyObservationType.tmp#LithologyObservationType_primaryLithologyKernel_xsd_Complex_Type_diggs_LithologyObservationType.tmp#LithologyObservationType_componentLithologyKernel_xsd_Element_diggs_placedObservation_1.tmp#http___diggsml.org_schemas_2.6_placedObservationKernel_xsd_Element_diggs_baseBoundary.tmp#baseBoundary
Type extension of diggs:AbstractObservationType
Type hierarchy
Used by
Model
Children diggs:baseBoundary, diggs:componentLithology, diggs:location, diggs:measurementRef, diggs:placedObservation, diggs:primaryLithology, diggs:remark, diggs:status, diggs:trueBaseObserved, diggs:trueTopObserved, gml:identifier
Attributes
QName Type Use Annotation
diggs:howDetermined diggs:DescriptorMethodEnumType optional
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
stratumCode string optional
A legacy attribute to support AGS trial pit sampling features where observations of different stratum may occur at the same depth in a pit. It is a reference letter or number whose sole purpose is to link the stratum shown on a face sketch of the trial pit to the specific observation.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="LithologyObservationType">
  <complexContent>
    <extension base="diggs:AbstractObservationType">
      <sequence>
        <element name="primaryLithology" type="diggs:LithologyPropertyType"/>
        <element minOccurs="0" name="componentLithology" type="diggs:ComponentLithologyPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>A description of the lithologies that make up a subsidiary portion of the overall lithologic classification of the layer or sample, or exist as specific components of the primarylithology property</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" ref="diggs:placedObservation"/>
        <element minOccurs="0" ref="diggs:baseBoundary" maxOccurs="unbounded"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
