Element diggs:ComponentLithologyType / diggs:lithology
Namespace http://diggsml.org/schemas/2.6

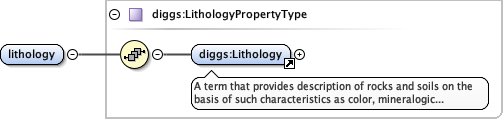

Diagram
DiagramKernel_xsd_Element_diggs_Lithology.tmp#LithologyKernel_xsd_Complex_Type_diggs_LithologyPropertyType.tmp#LithologyPropertyType
Type diggs:LithologyPropertyType
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children diggs:Lithology
Instance

<diggs:lithology xmlns:diggs="http://diggsml.org/schemas/2.6">
  <diggs:Lithology gml:id="" xml:lang="">{1,1}</diggs:Lithology>
</diggs:lithology>
Source

<element maxOccurs="1" minOccurs="1" name="lithology" type="diggs:LithologyPropertyType"/>
Element diggs:ComponentLithologyType / diggs:abundanceCode
Namespace http://diggsml.org/schemas/2.6
Annotations

A measure of the relative amount of the subordinate
lithology present as a string type, intended to come from a
controlled list (eg. few, rare, common, etc.)

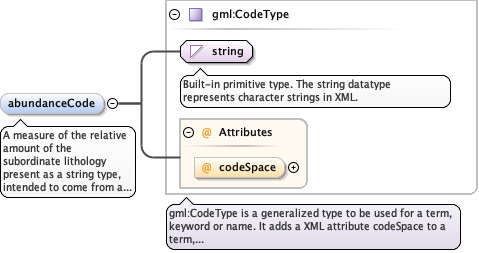

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="abundanceCode" type="gml:CodeType" minOccurs="0">
  <annotation>
    <documentation>A measure of the relative amount of the subordinate lithology present as a string type, intended to come from a controlled list (eg. few, rare, common, etc.)</documentation>
  </annotation>
</element>
Element diggs:ComponentLithologyType / diggs:abundancePercent
Namespace http://diggsml.org/schemas/2.6
Annotations

A measure of the amount of the subordinate lithology
present, expressed as a percentage.

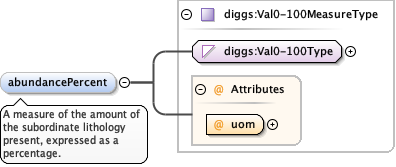

Diagram
DiagramKernel_xsd_Simple_Type_diggs_Val0-100Type.tmp#Val0-100TypeKernel_xsd_Complex_Type_diggs_Val0-100MeasureType.tmp#Val0-100MeasureType_uomKernel_xsd_Complex_Type_diggs_Val0-100MeasureType.tmp#Val0-100MeasureType
Type diggs:Val0-100MeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:DimensionlessUom required
Source

<element name="abundancePercent" type="diggs:Val0-100MeasureType" minOccurs="0">
  <annotation>
    <documentation>A measure of the amount of the subordinate lithology present, expressed as a percentage.</documentation>
  </annotation>
</element>
Complex Type diggs:ComponentLithologyType
Namespace http://diggsml.org/schemas/2.6

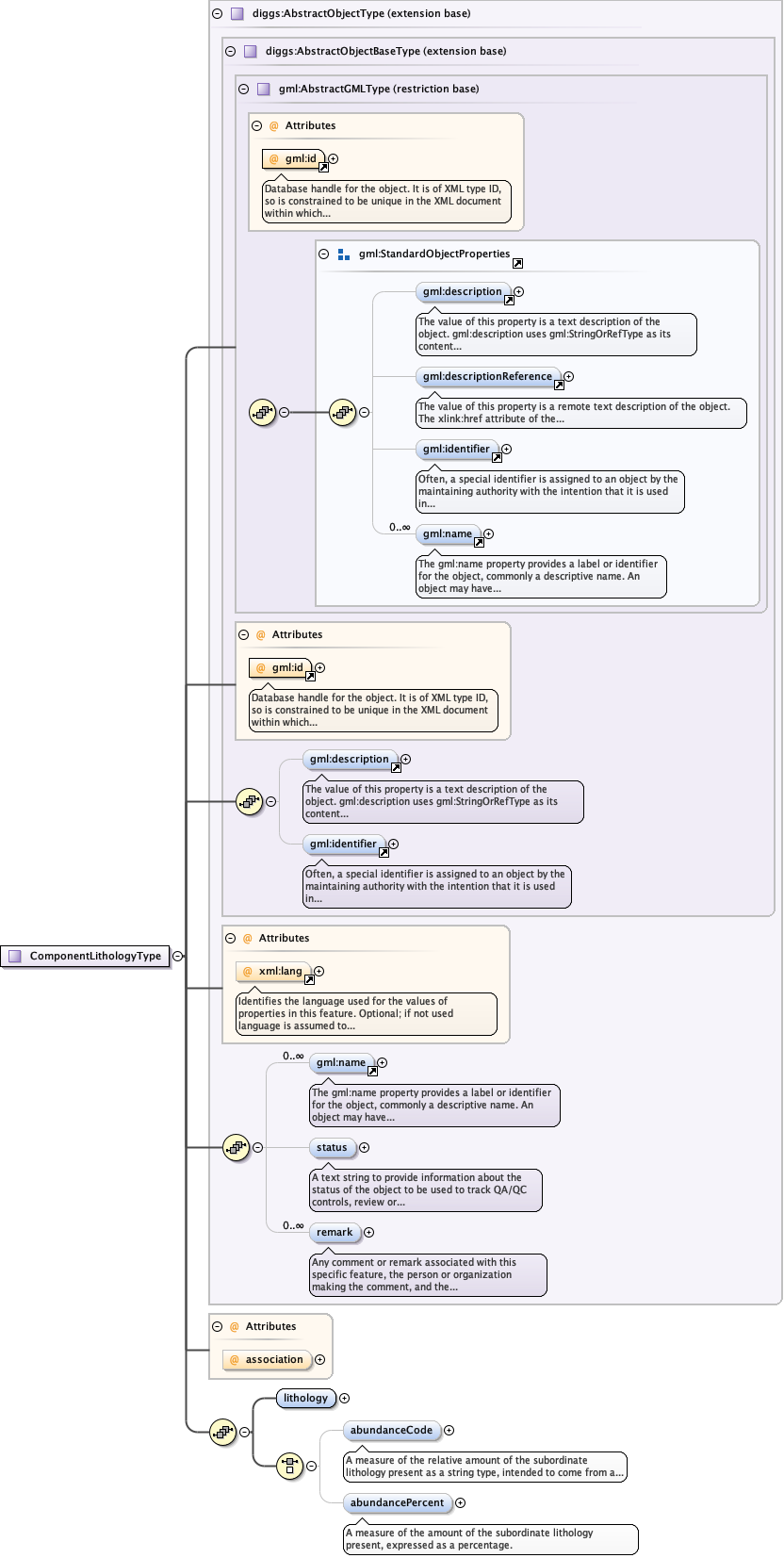

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_associationKernel_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_lithologyKernel_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_abundanceCodeKernel_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_abundancePercent
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:abundanceCode, diggs:abundancePercent, diggs:lithology, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
association diggs:LithologyCharacterEnumType optional
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="ComponentLithologyType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence maxOccurs="1" minOccurs="1">
        <element maxOccurs="1" minOccurs="1" name="lithology" type="diggs:LithologyPropertyType"/>
        <choice>
          <element name="abundanceCode" type="gml:CodeType" minOccurs="0">
            <annotation>
              <documentation>A measure of the relative amount of the subordinate lithology present as a string type, intended to come from a controlled list (eg. few, rare, common, etc.)</documentation>
            </annotation>
          </element>
          <element name="abundancePercent" type="diggs:Val0-100MeasureType" minOccurs="0">
            <annotation>
              <documentation>A measure of the amount of the subordinate lithology present, expressed as a percentage.</documentation>
            </annotation>
          </element>
        </choice>
      </sequence>
      <attribute name="association" type="diggs:LithologyCharacterEnumType"/>
    </extension>
  </complexContent>
</complexType>
Attribute diggs:ComponentLithologyType / @association
Namespace No namespace
Type diggs:LithologyCharacterEnumType
Properties
content simple
Used by
Source

<attribute name="association" type="diggs:LithologyCharacterEnumType"/>
