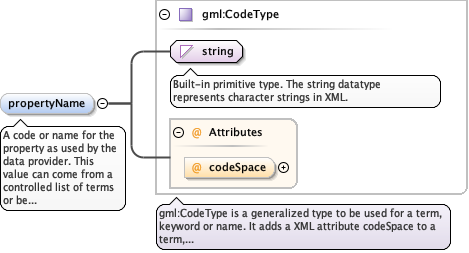

Schema documentation for component diggs:propertyName

A code or name for the property as used by the data
provider. This value can come from a controlled list of terms or be
an uncontrolled text string. The value would be commonly used to
label a column of a log sheet or provide other local meaning to the
property. The value of mnemonic should be unique for all of the
properties included in the dataValue block transmitted as part of
this measurement.

content	complex
minOccurs	0
maxOccurs	1

QName	Type	Use
codeSpace	anyURI	optional

<element maxOccurs="1" minOccurs="0" name="propertyName" type="gml:CodeType">
  <annotation>
    <documentation>A code or name for the property as used by the data provider. This value can come from a controlled list of terms or be an uncontrolled text string. The value would be commonly used to label a column of a log sheet or provide other local meaning to the property. The value of mnemonic should be unique for all of the properties included in the dataValue block transmitted as part of this measurement.</documentation>
  </annotation>
</element>

The data type for this property (eg. double, long,
string, etc.)

content	simple
minOccurs	1
maxOccurs	1

<element maxOccurs="1" minOccurs="1" name="typeData" type="diggs:PropertyDataTypeEnumType">
  <annotation>
    <documentation>The data type for this property (eg. double, long, string, etc.)</documentation>
  </annotation>
</element>

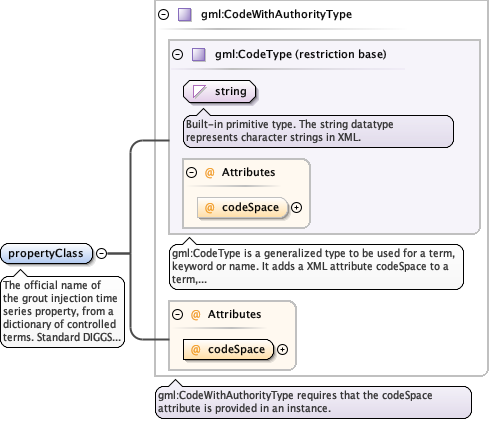

The official name of the grout injection time series
property, from a dictionary of controlled terms. Standard DIGGS
property class values are: - apparent_lugeon_value - column_pressure
- effective_pressure - elapsed_time - grout_flow_rate -
gauge_pressure - grout_specific_gravity - grout_temperature -
injection_pressure - line_loss - mix - packer_pressure -
stroke_count - take

content	complex
minOccurs	1
maxOccurs	1

QName	Type	Use
codeSpace	anyURI	required

<element maxOccurs="1" minOccurs="1" name="propertyClass" type="gml:CodeWithAuthorityType">
  <annotation>
    <documentation>The official name of the grout injection time series property, from a dictionary of controlled terms. Standard DIGGS property class values are: - apparent_lugeon_value - column_pressure - effective_pressure - elapsed_time - grout_flow_rate - gauge_pressure - grout_specific_gravity - grout_temperature - injection_pressure - line_loss - mix - packer_pressure - stroke_count - take</documentation>
  </annotation>
</element>

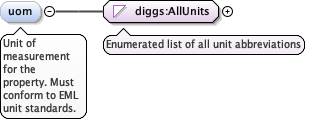

Unit of measurement for the property. Must conform to EML
unit standards.

content	simple
minOccurs	0
maxOccurs	1

<element maxOccurs="1" minOccurs="0" name="uom" type="diggs:AllUnits">
  <annotation>
    <documentation>Unit of measurement for the property. Must conform to EML unit standards.</documentation>
  </annotation>
</element>

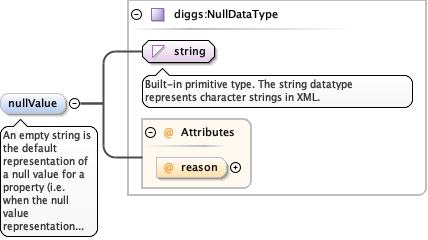

An empty string is the default representation of a null
value for a property (i.e. when the null value representation is not
explicitly defined). This value defines a value to be interpreted as
null for this property in the dataValues block. The reason attribute
can be used to define the reason for the null value, (eg. witheld).
This can be customized with an other: qualifier (eg. other:below
detection limit) or reference a URI for a more complete
definition.

content	complex
minOccurs	0
maxOccurs	1

QName	Type	Use
reason	gml:NilReasonType	optional

<element maxOccurs="1" minOccurs="0" name="nullValue" type="diggs:NullDataType">
  <annotation>
    <documentation>An empty string is the default representation of a null value for a property (i.e. when the null value representation is not explicitly defined). This value defines a value to be interpreted as null for this property in the dataValues block. The reason attribute can be used to define the reason for the null value, (eg. witheld). This can be customized with an other: qualifier (eg. other:below detection limit) or reference a URI for a more complete definition.</documentation>
  </annotation>
</element>

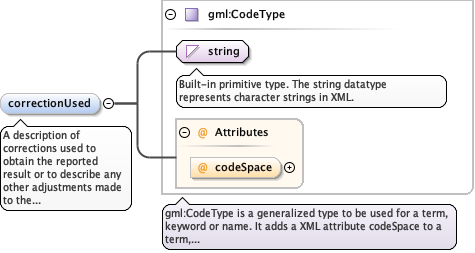

A description of corrections used to obtain the reported result or to
describe any other adjustments made to the reported data. Can come
from a controlled list.

content	complex
minOccurs	0
maxOccurs	unbounded

QName	Type	Use
codeSpace	anyURI	optional

<element maxOccurs="unbounded" minOccurs="0" name="correctionUsed" type="gml:CodeType">
  <annotation>
    <documentation>A description of corrections used to obtain the reported result or to describe any other adjustments made to the reported data. Can come from a controlled list.</documentation>
  </annotation>
</element>

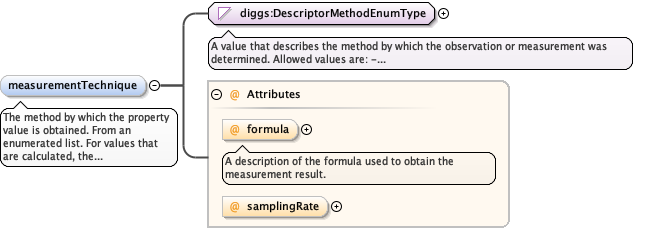

The method by which the property value is obtained. From
an enumerated list. For values that are calculated, the formula
attribute allows for a formula to be included, a
description/reference to the formula used to calculate te value, or
details of any moving average. The samplingRate attribute describes
the raw rate of measurement collection from which any moving
averages may be derived.

content	complex
minOccurs	0

QName

Type

Use

Annotation

formula

string

optional

A description of the formula used to
obtain the measurement result.

samplingRate

string

optional

<element minOccurs="0" name="measurementTechnique">
  <annotation>
    <documentation>The method by which the property value is obtained. From an enumerated list. For values that are calculated, the formula attribute allows for a formula to be included, a description/reference to the formula used to calculate te value, or details of any moving average. The samplingRate attribute describes the raw rate of measurement collection from which any moving averages may be derived.</documentation>
  </annotation>
  <complexType>
    <simpleContent>
      <extension base="diggs:DescriptorMethodEnumType">
        <attribute name="formula" type="string">
          <annotation>
            <documentation>A description of the formula used to obtain the measurement result.</documentation>
          </annotation>
        </attribute>
        <attribute name="samplingRate" type="string">
        </attribute>
      </extension>
    </simpleContent>
  </complexType>
</element>

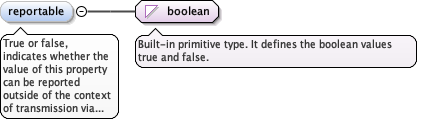

True or false, indicates whether the value of this
property can be reported outside of the context of transmission via
an xml instance.

content	simple
minOccurs	0
maxOccurs	1
default	true

<element default="true" maxOccurs="1" minOccurs="0" name="reportable" type="boolean">
  <annotation>
    <documentation>True or false, indicates whether the value of this property can be reported outside of the context of transmission via an xml instance.</documentation>
  </annotation>
</element>

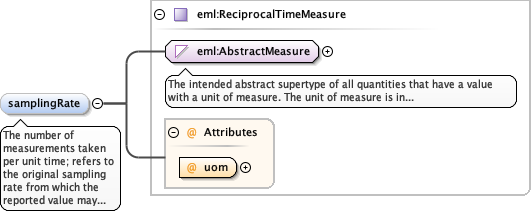

The number of measurements taken per unit time; refers to
the original sampling rate from which the reported value may
represent an average or some other value.

content	complex
minOccurs	0
maxOccurs	1

QName	Type	Use
uom	eml:ReciprocalTimeUom	required

<element maxOccurs="1" minOccurs="0" name="samplingRate" type="eml:ReciprocalTimeMeasure">
  <annotation>
    <documentation>The number of measurements taken per unit time; refers to the original sampling rate from which the reported value may represent an average or some other value.</documentation>
  </annotation>
</element>

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

index

union of(restriction of string, integer)

required

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>

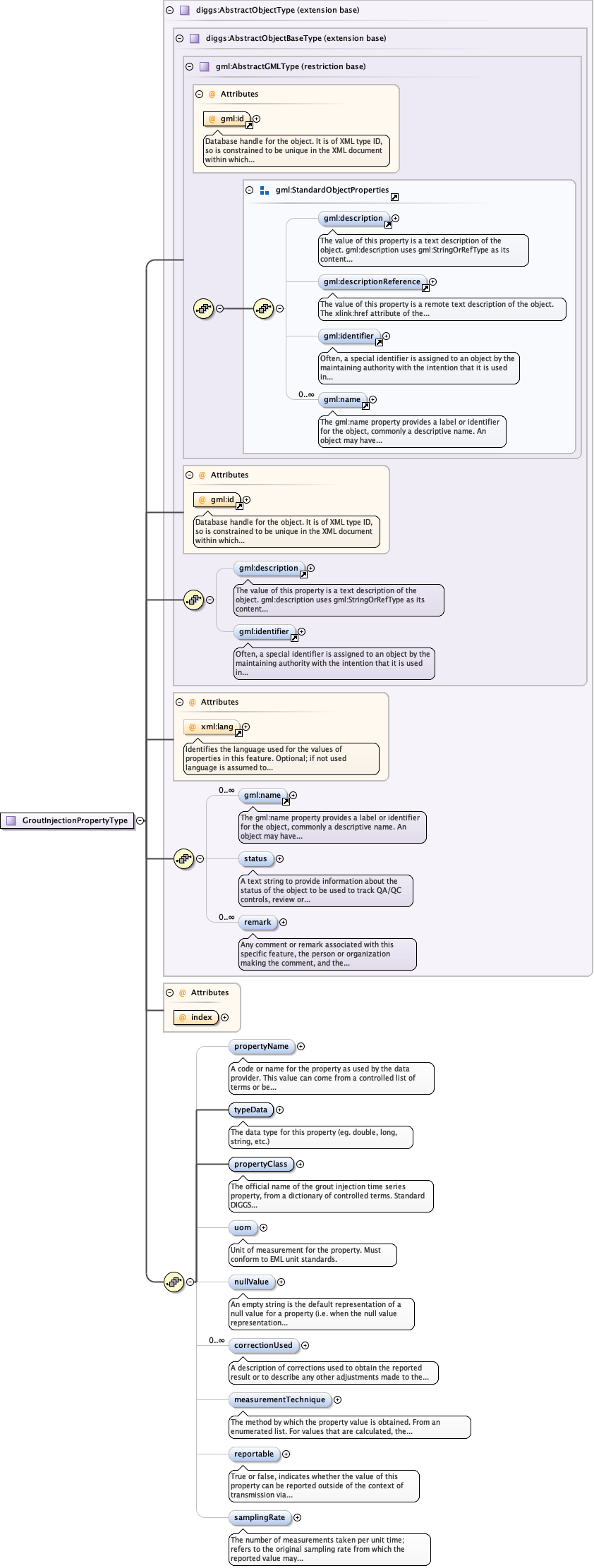

<complexType name="GroutInjectionPropertyType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element maxOccurs="1" minOccurs="0" name="propertyName" type="gml:CodeType">
          <annotation>
            <documentation>A code or name for the property as used by the data provider. This value can come from a controlled list of terms or be an uncontrolled text string. The value would be commonly used to label a column of a log sheet or provide other local meaning to the property. The value of mnemonic should be unique for all of the properties included in the dataValue block transmitted as part of this measurement.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="1" name="typeData" type="diggs:PropertyDataTypeEnumType">
          <annotation>
            <documentation>The data type for this property (eg. double, long, string, etc.)</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="1" name="propertyClass" type="gml:CodeWithAuthorityType">
          <annotation>
            <documentation>The official name of the grout injection time series property, from a dictionary of controlled terms. Standard DIGGS property class values are: - apparent_lugeon_value - column_pressure - effective_pressure - elapsed_time - grout_flow_rate - gauge_pressure - grout_specific_gravity - grout_temperature - injection_pressure - line_loss - mix - packer_pressure - stroke_count - take</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="uom" type="diggs:AllUnits">
          <annotation>
            <documentation>Unit of measurement for the property. Must conform to EML unit standards.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="nullValue" type="diggs:NullDataType">
          <annotation>
            <documentation>An empty string is the default representation of a null value for a property (i.e. when the null value representation is not explicitly defined). This value defines a value to be interpreted as null for this property in the dataValues block. The reason attribute can be used to define the reason for the null value, (eg. witheld). This can be customized with an other: qualifier (eg. other:below detection limit) or reference a URI for a more complete definition.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="correctionUsed" type="gml:CodeType">
          <annotation>
            <documentation>A description of corrections used to obtain the reported result or to describe any other adjustments made to the reported data. Can come from a controlled list.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="measurementTechnique">
          <annotation>
            <documentation>The method by which the property value is obtained. From an enumerated list. For values that are calculated, the formula attribute allows for a formula to be included, a description/reference to the formula used to calculate te value, or details of any moving average. The samplingRate attribute describes the raw rate of measurement collection from which any moving averages may be derived.</documentation>
          </annotation>
          <complexType>
            <simpleContent>
              <extension base="diggs:DescriptorMethodEnumType">
                <attribute name="formula" type="string">
                  <annotation>
                    <documentation>A description of the formula used to obtain the measurement result.</documentation>
                  </annotation>
                </attribute>
                <attribute name="samplingRate" type="string">
                </attribute>
              </extension>
            </simpleContent>
          </complexType>
        </element>
        <element default="true" maxOccurs="1" minOccurs="0" name="reportable" type="boolean">
          <annotation>
            <documentation>True or false, indicates whether the value of this property can be reported outside of the context of transmission via an xml instance.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="samplingRate" type="eml:ReciprocalTimeMeasure">
          <annotation>
            <documentation>The number of measurements taken per unit time; refers to the original sampling rate from which the reported value may represent an average or some other value.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="index" use="required">
        <simpleType>
          <union>
            <simpleType>
              <restriction base="string">
                <enumeration value=""/>
              </restriction>
            </simpleType>
            <simpleType>
              <restriction base="integer"/>
            </simpleType>
          </union>
        </simpleType>
      </attribute>
    </extension>
  </complexContent>
</complexType>

A description of the formula used to
obtain the measurement result.

<attribute name="formula" type="string">
  <annotation>
    <documentation>A description of the formula used to obtain the measurement result.</documentation>
  </annotation>
</attribute>

<attribute name="samplingRate" type="string">
</attribute>

<attribute name="index" use="required">
  <simpleType>
    <union>
      <simpleType>
        <restriction base="string">
          <enumeration value=""/>
        </restriction>
      </simpleType>
      <simpleType>
        <restriction base="integer"/>
      </simpleType>
    </union>
  </simpleType>
</attribute>
