Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:minimumDepthBelowLS
Namespace http://diggsml.org/schemas/2.6
Annotations

The minimum vertical depth below land surface for which
associated construction criteria are applicable.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element form="qualified" name="minimumDepthBelowLS" type="eml:LengthMeasure">
  <annotation>
    <documentation>The minimum vertical depth below land surface for which associated construction criteria are applicable.</documentation>
  </annotation>
</element>

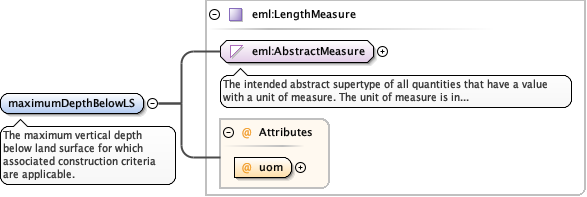

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:maximumDepthBelowLS
Namespace http://diggsml.org/schemas/2.6
Annotations

The maximum vertical depth below land surface for which
associated construction criteria are applicable.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element form="qualified" name="maximumDepthBelowLS" type="eml:LengthMeasure">
  <annotation>
    <documentation>The maximum vertical depth below land surface for which associated construction criteria are applicable.</documentation>
  </annotation>
</element>

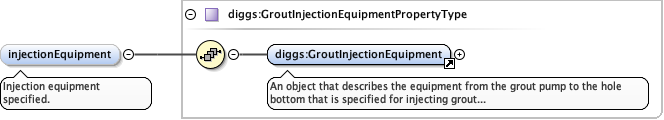

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:injectionEquipment
Namespace http://diggsml.org/schemas/2.6
Annotations

Injection equipment specified.
Diagram
DiagramConstruction_xsd_Element_diggs_GroutInjectionEquipment.tmp#GroutInjectionEquipmentConstruction_xsd_Complex_Type_diggs_GroutInjectionEquipmentPropertyType.tmp#GroutInjectionEquipmentPropertyType
Type diggs:GroutInjectionEquipmentPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutInjectionEquipment
Instance

<diggs:injectionEquipment xmlns:diggs="http://diggsml.org/schemas/2.6">
  <diggs:GroutInjectionEquipment gml:id="" xml:lang="">{1,1}</diggs:GroutInjectionEquipment>
</diggs:injectionEquipment>
Source

<element maxOccurs="1" minOccurs="0" name="injectionEquipment" type="diggs:GroutInjectionEquipmentPropertyType">
  <annotation>
    <documentation>Injection equipment specified.</documentation>
  </annotation>
</element>

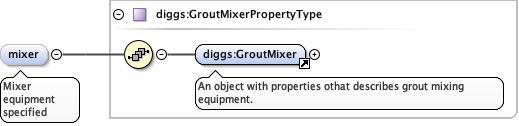

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:mixer
Namespace http://diggsml.org/schemas/2.6
Annotations

Mixer equipment specified
Diagram
DiagramConstruction_xsd_Element_diggs_GroutMixer.tmp#GroutMixerConstruction_xsd_Complex_Type_diggs_GroutMixerPropertyType.tmp#GroutMixerPropertyType
Type diggs:GroutMixerPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutMixer
Instance

<diggs:mixer xmlns:diggs="http://diggsml.org/schemas/2.6">
  <diggs:GroutMixer gml:id="" xml:lang="">{1,1}</diggs:GroutMixer>
</diggs:mixer>
Source

<element maxOccurs="1" minOccurs="0" name="mixer" type="diggs:GroutMixerPropertyType">
  <annotation>
    <documentation>Mixer equipment specified</documentation>
  </annotation>
</element>

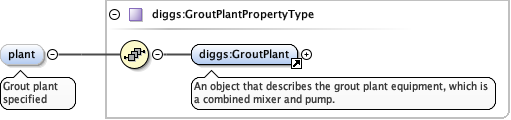

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:plant
Namespace http://diggsml.org/schemas/2.6
Annotations

Grout plant specified
Diagram
DiagramConstruction_xsd_Element_diggs_GroutPlant.tmp#GroutPlantConstruction_xsd_Complex_Type_diggs_GroutPlantPropertyType.tmp#GroutPlantPropertyType
Type diggs:GroutPlantPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutPlant
Instance

<diggs:plant xmlns:diggs="http://diggsml.org/schemas/2.6">
  <diggs:GroutPlant gml:id="" xml:lang="">{1,1}</diggs:GroutPlant>
</diggs:plant>
Source

<element maxOccurs="1" minOccurs="0" name="plant" type="diggs:GroutPlantPropertyType">
  <annotation>
    <documentation>Grout plant specified</documentation>
  </annotation>
</element>

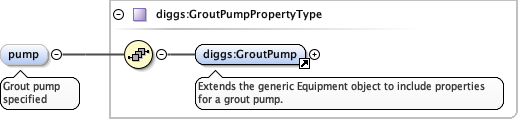

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:pump
Namespace http://diggsml.org/schemas/2.6
Annotations

Grout pump specified
Diagram
DiagramConstruction_xsd_Element_diggs_GroutPump.tmp#GroutPumpConstruction_xsd_Complex_Type_diggs_GroutPumpPropertyType.tmp#GroutPumpPropertyType
Type diggs:GroutPumpPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutPump
Instance

<diggs:pump xmlns:diggs="http://diggsml.org/schemas/2.6">
  <diggs:GroutPump gml:id="" xml:lang="">{1,1}</diggs:GroutPump>
</diggs:pump>
Source

<element maxOccurs="1" minOccurs="0" name="pump" type="diggs:GroutPumpPropertyType">
  <annotation>
    <documentation>Grout pump specified</documentation>
  </annotation>
</element>

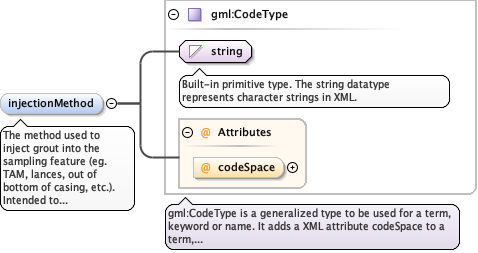

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:injectionMethod
Namespace http://diggsml.org/schemas/2.6
Annotations

The method used to inject grout into the sampling feature
(eg. TAM, lances, out of bottom of casing, etc.). Intended to come
from a controlled list of terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="injectionMethod" maxOccurs="1" type="gml:CodeType">
  <annotation>
    <documentation>The method used to inject grout into the sampling feature (eg. TAM, lances, out of bottom of casing, etc.). Intended to come from a controlled list of terms.</documentation>
  </annotation>
</element>

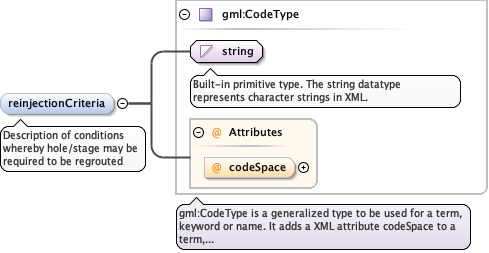

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:reinjectionCriteria
Namespace http://diggsml.org/schemas/2.6
Annotations

Description of conditions whereby hole/stage may be
required to be regrouted
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="reinjectionCriteria" maxOccurs="unbounded" type="gml:CodeType">
  <annotation>
    <documentation>Description of conditions whereby hole/stage may be required to be regrouted</documentation>
  </annotation>
</element>
Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:digitalRecordingRequired
Namespace http://diggsml.org/schemas/2.6
Annotations

Set to true here, grouting parameters are
required to be recorded digitally.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 1
fixed true
Source

<element minOccurs="1" name="digitalRecordingRequired" type="boolean" fixed="true">
  <annotation>
    <documentation>Set to true here, grouting parameters are required to be recorded digitally.</documentation>
  </annotation>
</element>

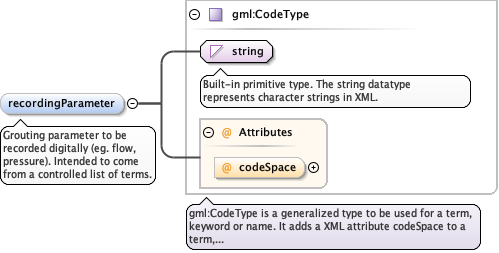

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:recordingParameter
Namespace http://diggsml.org/schemas/2.6
Annotations

Grouting parameter to be recorded digitally (eg.
flow, pressure). Intended to come from a controlled list of
terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element maxOccurs="unbounded" minOccurs="0" name="recordingParameter" type="gml:CodeType">
  <annotation>
    <documentation>Grouting parameter to be recorded digitally (eg. flow, pressure). Intended to come from a controlled list of terms.</documentation>
  </annotation>
</element>
Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:digitalRecordingNotRequired
Namespace http://diggsml.org/schemas/2.6
Annotations

Set to true here, grouting parameters are NOT
required to be recorded digitally.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 1
fixed true
Source

<element minOccurs="1" name="digitalRecordingNotRequired" type="boolean" fixed="true">
  <annotation>
    <documentation>Set to true here, grouting parameters are NOT required to be recorded digitally.</documentation>
  </annotation>
</element>

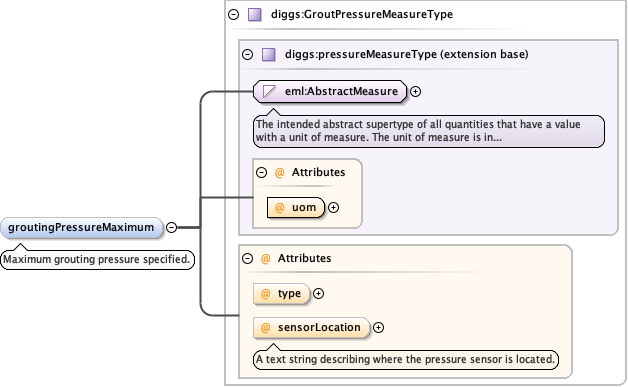

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:groutingPressureMaximum
Namespace http://diggsml.org/schemas/2.6
Annotations

Maximum grouting pressure specified.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType_uomKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureTypeConstruction_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_typeConstruction_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_sensorLocationConstruction_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType
Type diggs:GroutPressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
sensorLocation string optional
A text string describing where the pressure sensor is
located.
type diggs:pressureMeasureTypeEnumType optional
uom diggs:diggsPressureUom required
Source

<element minOccurs="0" name="groutingPressureMaximum" type="diggs:GroutPressureMeasureType" maxOccurs="1">
  <annotation>
    <documentation>Maximum grouting pressure specified.</documentation>
  </annotation>
</element>
Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:groutingPressureMinimum
Namespace http://diggsml.org/schemas/2.6
Annotations

Minimum grouting pressure specified.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType_uomKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureTypeConstruction_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_typeConstruction_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_sensorLocationConstruction_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType
Type diggs:GroutPressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
sensorLocation string optional
A text string describing where the pressure sensor is
located.
type diggs:pressureMeasureTypeEnumType optional
uom diggs:diggsPressureUom required
Source

<element minOccurs="0" name="groutingPressureMinimum" type="diggs:GroutPressureMeasureType" maxOccurs="1">
  <annotation>
    <documentation>Minimum grouting pressure specified.</documentation>
  </annotation>
</element>

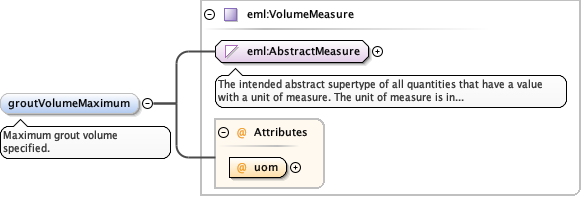

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:groutVolumeMaximum
Namespace http://diggsml.org/schemas/2.6
Annotations

Maximum grout volume specified.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure
Type eml:VolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumeUom required
Source

<element minOccurs="0" name="groutVolumeMaximum" type="eml:VolumeMeasure">
  <annotation>
    <documentation>Maximum grout volume specified.</documentation>
  </annotation>
</element>

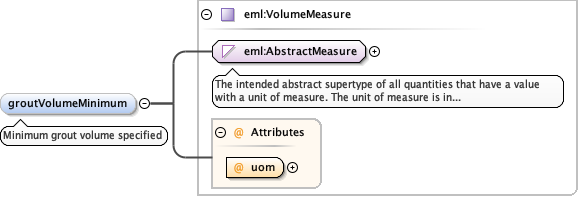

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:groutVolumeMinimum
Namespace http://diggsml.org/schemas/2.6
Annotations

Minimum grout volume specified
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure
Type eml:VolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumeUom required
Source

<element minOccurs="0" name="groutVolumeMinimum" type="eml:VolumeMeasure">
  <annotation>
    <documentation>Minimum grout volume specified</documentation>
  </annotation>
</element>

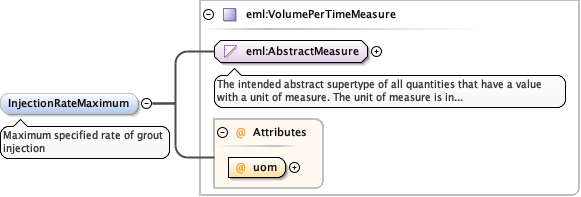

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:InjectionRateMaximum
Namespace http://diggsml.org/schemas/2.6
Annotations

Maximum specified rate of grout injection
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure
Type eml:VolumePerTimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerTimeUom required
Source

<element minOccurs="0" name="InjectionRateMaximum" type="eml:VolumePerTimeMeasure">
  <annotation>
    <documentation>Maximum specified rate of grout injection</documentation>
  </annotation>
</element>

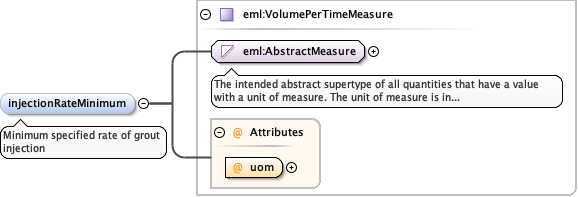

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:injectionRateMinimum
Namespace http://diggsml.org/schemas/2.6
Annotations

Minimum specified rate of grout injection
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure
Type eml:VolumePerTimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerTimeUom required
Source

<element minOccurs="0" name="injectionRateMinimum" type="eml:VolumePerTimeMeasure">
  <annotation>
    <documentation>Minimum specified rate of grout injection</documentation>
  </annotation>
</element>
Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:pressureControlLogic
Namespace http://diggsml.org/schemas/2.6
Annotations

Property defining how grout injection is to be
controlled, either by constant flow or constant pressure. From an
enumerated list.
Diagram
Diagram
Type restriction of string
Properties
content simple
minOccurs 0
Facets
enumeration constant flow
enumeration constant pressure
Source

<element minOccurs="0" name="pressureControlLogic">
  <annotation>
    <documentation>Property defining how grout injection is to be controlled, either by constant flow or constant pressure. From an enumerated list.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="constant flow"/>
      <enumeration value="constant pressure"/>
    </restriction>
  </simpleType>
</element>

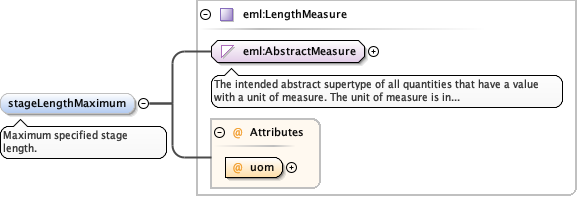

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:stageLengthMaximum
Namespace http://diggsml.org/schemas/2.6
Annotations

Maximum specified stage length.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="stageLengthMaximum" type="eml:LengthMeasure">
  <annotation>
    <documentation>Maximum specified stage length.</documentation>
  </annotation>
</element>
Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:stageLengthMinimum
Namespace http://diggsml.org/schemas/2.6
Annotations

Minimum specified stage length.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="stageLengthMinimum" type="eml:LengthMeasure">
  <annotation>
    <documentation>Minimum specified stage length.</documentation>
  </annotation>
</element>

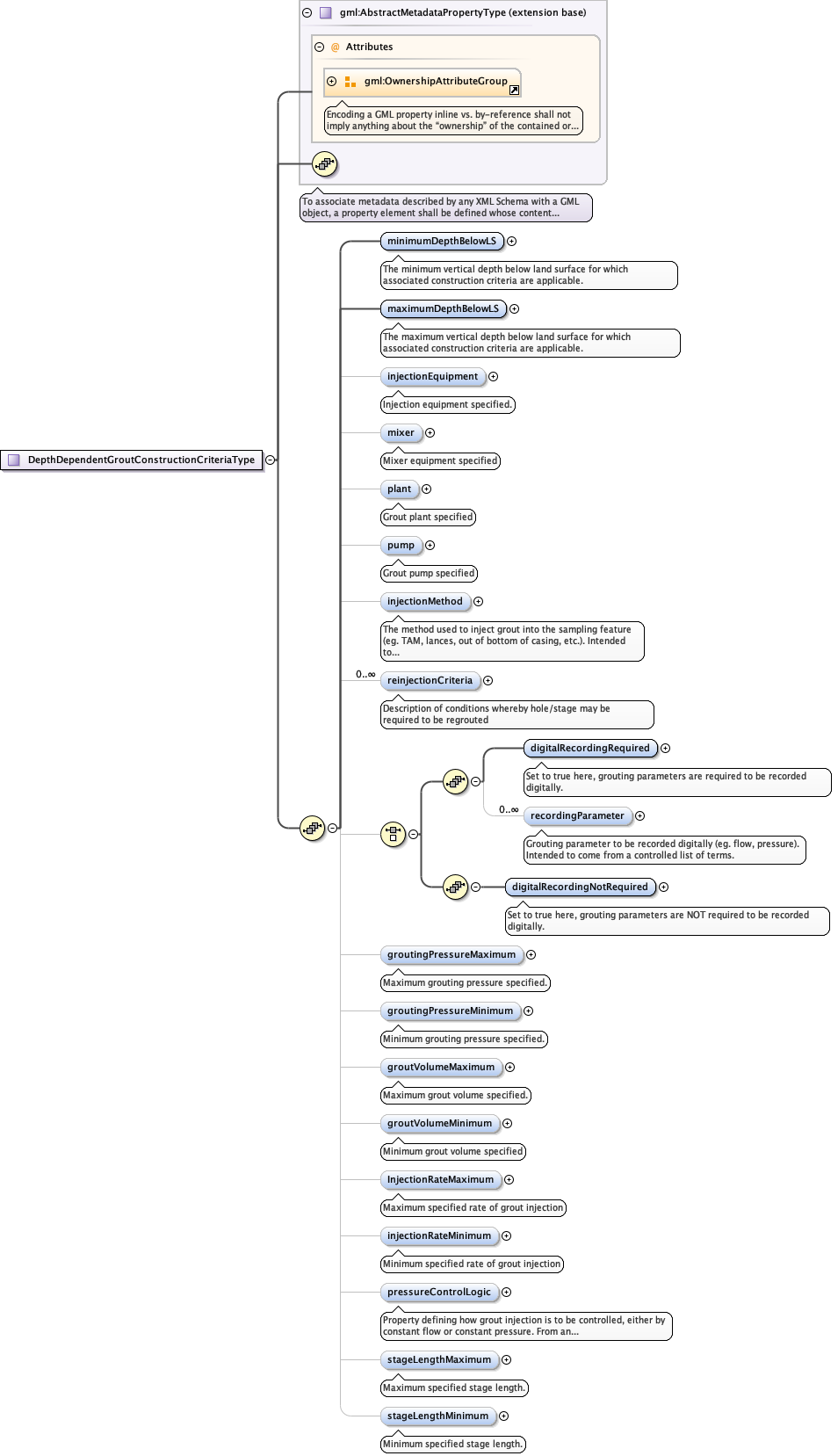

Complex Type diggs:DepthDependentGroutConstructionCriteriaType
Namespace http://diggsml.org/schemas/2.6
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractMetadataPropertyType.tmp#AbstractMetadataPropertyTypeConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_minimumDepthBelowLSConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_maximumDepthBelowLSConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_injectionEquipmentConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_mixerConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_plantConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_pumpConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_injectionMethodConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_reinjectionCriteriaConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_digitalRecordingRequiredConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_recordingParameterConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_digitalRecordingNotRequiredConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_groutingPressureMaximumConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_groutingPressureMinimumConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_groutVolumeMaximumConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_groutVolumeMinimumConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_InjectionRateMaximumConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_injectionRateMinimumConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_pressureControlLogicConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_stageLengthMaximumConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_stageLengthMinimum
Type extension of gml:AbstractMetadataPropertyType
Type hierarchy
Used by
Model
Children diggs:InjectionRateMaximum, diggs:digitalRecordingNotRequired, diggs:digitalRecordingRequired, diggs:groutVolumeMaximum, diggs:groutVolumeMinimum, diggs:groutingPressureMaximum, diggs:groutingPressureMinimum, diggs:injectionEquipment, diggs:injectionMethod, diggs:injectionRateMinimum, diggs:maximumDepthBelowLS, diggs:minimumDepthBelowLS, diggs:mixer, diggs:plant, diggs:pressureControlLogic, diggs:pump, diggs:recordingParameter, diggs:reinjectionCriteria, diggs:stageLengthMaximum, diggs:stageLengthMinimum
Attributes
QName Type Default Use
owns boolean false optional
Source

<complexType name="DepthDependentGroutConstructionCriteriaType">
  <complexContent>
    <extension base="gml:AbstractMetadataPropertyType">
      <sequence>
        <element form="qualified" name="minimumDepthBelowLS" type="eml:LengthMeasure">
          <annotation>
            <documentation>The minimum vertical depth below land surface for which associated construction criteria are applicable.</documentation>
          </annotation>
        </element>
        <element form="qualified" name="maximumDepthBelowLS" type="eml:LengthMeasure">
          <annotation>
            <documentation>The maximum vertical depth below land surface for which associated construction criteria are applicable.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="injectionEquipment" type="diggs:GroutInjectionEquipmentPropertyType">
          <annotation>
            <documentation>Injection equipment specified.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="mixer" type="diggs:GroutMixerPropertyType">
          <annotation>
            <documentation>Mixer equipment specified</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="plant" type="diggs:GroutPlantPropertyType">
          <annotation>
            <documentation>Grout plant specified</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="pump" type="diggs:GroutPumpPropertyType">
          <annotation>
            <documentation>Grout pump specified</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="injectionMethod" maxOccurs="1" type="gml:CodeType">
          <annotation>
            <documentation>The method used to inject grout into the sampling feature (eg. TAM, lances, out of bottom of casing, etc.). Intended to come from a controlled list of terms.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="reinjectionCriteria" maxOccurs="unbounded" type="gml:CodeType">
          <annotation>
            <documentation>Description of conditions whereby hole/stage may be required to be regrouted</documentation>
          </annotation>
        </element>
        <choice minOccurs="0">
          <sequence>
            <element minOccurs="1" name="digitalRecordingRequired" type="boolean" fixed="true">
              <annotation>
                <documentation>Set to true here, grouting parameters are required to be recorded digitally.</documentation>
              </annotation>
            </element>
            <element maxOccurs="unbounded" minOccurs="0" name="recordingParameter" type="gml:CodeType">
              <annotation>
                <documentation>Grouting parameter to be recorded digitally (eg. flow, pressure). Intended to come from a controlled list of terms.</documentation>
              </annotation>
            </element>
          </sequence>
          <sequence>
            <element minOccurs="1" name="digitalRecordingNotRequired" type="boolean" fixed="true">
              <annotation>
                <documentation>Set to true here, grouting parameters are NOT required to be recorded digitally.</documentation>
              </annotation>
            </element>
          </sequence>
        </choice>
        <element minOccurs="0" name="groutingPressureMaximum" type="diggs:GroutPressureMeasureType" maxOccurs="1">
          <annotation>
            <documentation>Maximum grouting pressure specified.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="groutingPressureMinimum" type="diggs:GroutPressureMeasureType" maxOccurs="1">
          <annotation>
            <documentation>Minimum grouting pressure specified.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="groutVolumeMaximum" type="eml:VolumeMeasure">
          <annotation>
            <documentation>Maximum grout volume specified.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="groutVolumeMinimum" type="eml:VolumeMeasure">
          <annotation>
            <documentation>Minimum grout volume specified</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="InjectionRateMaximum" type="eml:VolumePerTimeMeasure">
          <annotation>
            <documentation>Maximum specified rate of grout injection</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="injectionRateMinimum" type="eml:VolumePerTimeMeasure">
          <annotation>
            <documentation>Minimum specified rate of grout injection</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pressureControlLogic">
          <annotation>
            <documentation>Property defining how grout injection is to be controlled, either by constant flow or constant pressure. From an enumerated list.</documentation>
          </annotation>
          <simpleType>
            <restriction base="string">
              <enumeration value="constant flow"/>
              <enumeration value="constant pressure"/>
            </restriction>
          </simpleType>
        </element>
        <element minOccurs="0" name="stageLengthMaximum" type="eml:LengthMeasure">
          <annotation>
            <documentation>Maximum specified stage length.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="stageLengthMinimum" type="eml:LengthMeasure">
          <annotation>
            <documentation>Minimum specified stage length.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
