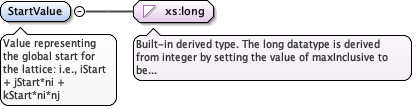

<xs:element name="StartValue" type="xs:long" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Value representing the global start for the lattice: i.e., iStart + jStart*ni + kStart*ni*nj</xs:documentation>
  </xs:annotation>
</xs:element>

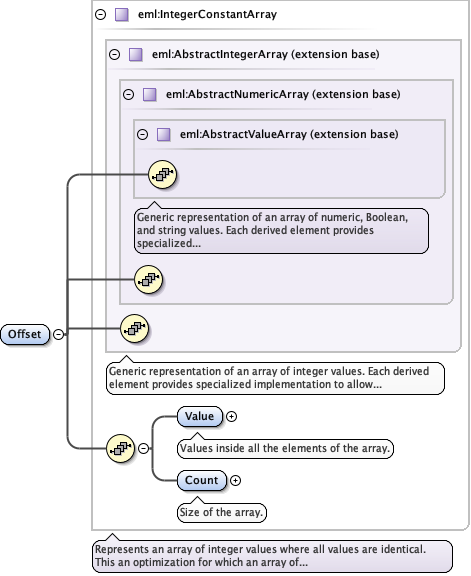

<eml:Offset xmlns:eml="http://www.energistics.org/energyml/data/commonv2">
  <eml:Value>{1,1}</eml:Value>
  <eml:Count>{1,1}</eml:Count>
</eml:Offset>

<xs:element name="Offset" type="eml:IntegerConstantArray" minOccurs="1" maxOccurs="unbounded"/>

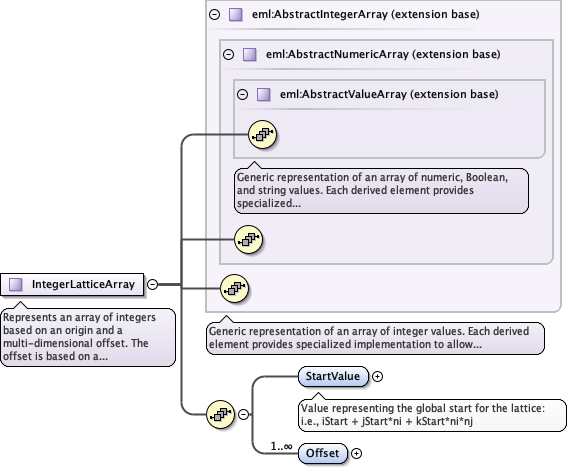

<xs:complexType name="IntegerLatticeArray">
  <xs:annotation>
    <xs:documentation>Represents an array of integers based on an origin and a multi-dimensional offset. The offset is based on a linearization of a multi-dimensional offset. If count(i) is the number of elements in the dimension i and offset(i) is the offset in the dimension i, then: globalOffsetInNDimension = startValue+ ni*offset(n) + n_1i*count(n)*offset(n-1) + .... + 0i*count(n)*count(n-1)*....count(1)*offset(0)</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="eml:AbstractIntegerArray">
      <xs:sequence>
        <xs:element name="StartValue" type="xs:long" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Value representing the global start for the lattice: i.e., iStart + jStart*ni + kStart*ni*nj</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Offset" type="eml:IntegerConstantArray" minOccurs="1" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
