Schema documentation for component eml:AbstractBooleanArray

Showing:

Annotations

Diagrams

Model

Properties

Source

Used by

Complex Type eml:AbstractBooleanArray

Namespace

http://www.energistics.org/energyml/data/commonv2

Annotations

Generic representation of an array of Boolean values. Each derived element provides a specialized implementation to allow specific optimization of the representation.

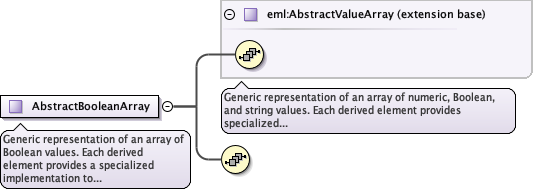

Diagram

Type

extension of eml:AbstractValueArray

Type hierarchy

eml:AbstractValueArray
- eml:AbstractBooleanArray

Properties

abstract

true

Used by

Complex Types	eml:BooleanArrayFromIndexArray, eml:BooleanConstantArray, eml:BooleanExternalArray
Element	eml:IntegerArrayFromBooleanMaskArray/eml:Mask

Model

Source

<xs:complexType name="AbstractBooleanArray" abstract="true">
  <xs:annotation>
    <xs:documentation>Generic representation of an array of Boolean values. Each derived element provides a specialized implementation to allow specific optimization of the representation.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="eml:AbstractValueArray">
      <xs:sequence/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
