Element gml:timeInterval
Namespace http://www.opengis.net/gml/3.2
Annotations

gml:timeInterval conforms to ISO 11404 which is based on floating point values
for temporal length. ISO 11404 syntax specifies the use of a positiveInteger together with
appropriate values for radix and factor. The resolution of the time interval is to one radix
^(-factor) of the specified time unit. The value of the unit is either selected from the
units for time intervals from ISO 31-1:1992, or is another suitable unit. The encoding is
defined for GML in gml:TimeUnitType. The second component of this union type provides a
method for indicating time units other than the six standard units given in the
enumeration.

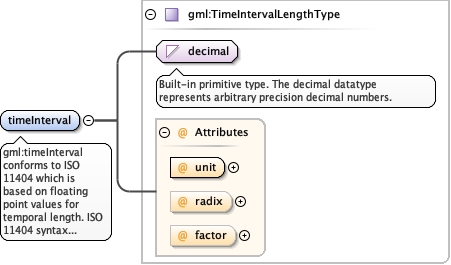

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_TimeIntervalLengthType.tmp#TimeIntervalLengthType_unitgml3_2Profile_diggs_xsd_Complex_Type_gml_TimeIntervalLengthType.tmp#TimeIntervalLengthType_radixgml3_2Profile_diggs_xsd_Complex_Type_gml_TimeIntervalLengthType.tmp#TimeIntervalLengthType_factorgml3_2Profile_diggs_xsd_Complex_Type_gml_TimeIntervalLengthType.tmp#TimeIntervalLengthType
Type gml:TimeIntervalLengthType
Properties
content complex
Used by
Element Group gml:timeLength
Attributes
QName Type Use
factor integer optional
radix positiveInteger optional
unit gml:TimeUnitType required
Source

<element name="timeInterval" type="gml:TimeIntervalLengthType">
  <annotation>
    <documentation>gml:timeInterval conforms to ISO 11404 which is based on floating point values for temporal length. ISO 11404 syntax specifies the use of a positiveInteger together with appropriate values for radix and factor. The resolution of the time interval is to one radix ^(-factor) of the specified time unit. The value of the unit is either selected from the units for time intervals from ISO 31-1:1992, or is another suitable unit. The encoding is defined for GML in gml:TimeUnitType. The second component of this union type provides a method for indicating time units other than the six standard units given in the enumeration.</documentation>
  </annotation>
</element>
