Element gml:pointProperty
Namespace http://www.opengis.net/gml/3.2
Annotations

This property element either references a point via the XLink-attributes or
contains the point element. pointProperty is the predefined property which may be used by
GML Application Schemas whenever a GML feature has a property with a value that is
substitutable for Point.

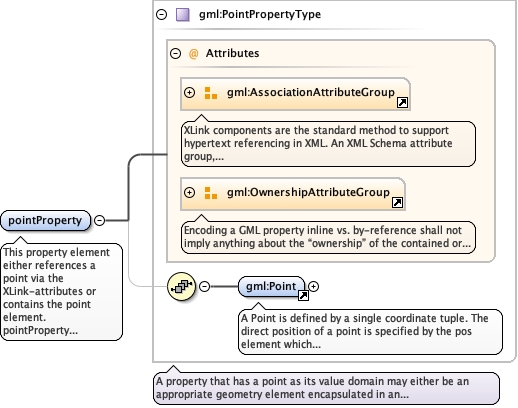

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_Point.tmp#Pointgml3_2Profile_diggs_xsd_Complex_Type_gml_PointPropertyType.tmp#PointPropertyType
Type gml:PointPropertyType
Properties
content complex
Used by
Complex Type gml:LineStringType
Model
Children gml:Point
Instance

<gml:pointProperty xlink:href="" nilReason="" owns="false" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:Point axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:Point>
</gml:pointProperty>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="pointProperty" type="gml:PointPropertyType">
  <annotation>
    <documentation>This property element either references a point via the XLink-attributes or contains the point element. pointProperty is the predefined property which may be used by GML Application Schemas whenever a GML feature has a property with a value that is substitutable for Point.</documentation>
  </annotation>
</element>
