Element gml:dictionaryEntry
Namespace http://www.opengis.net/gml/3.2
Annotations

This property element contains or refers to the definitions which are members
of a dictionary. The content model follows the standard GML property pattern, so a
gml:dictionaryEntry may either contain or refer to a single gml:Definition. Since
gml:Dictionary is substitutable for gml:Definition, the content of an entry may itself be a
lower level dictionary. Note that if the value is provided by reference, this definition
does not carry a handle (gml:id) in this context, so does not allow external references to
this specific definition in this context. When used in this way the referenced definition
will usually be in a dictionary in the same XML document.

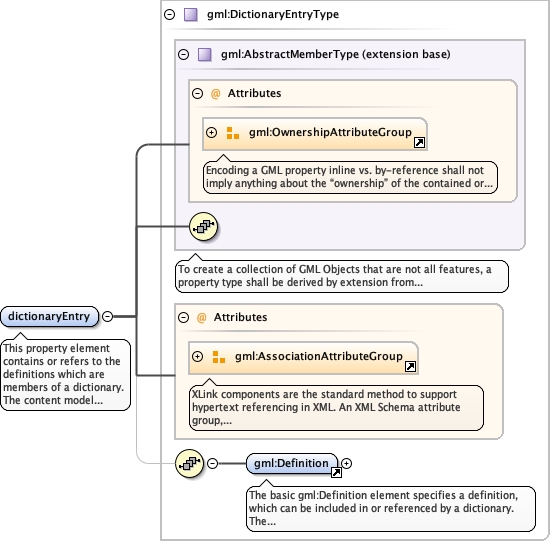

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractMemberType.tmp#AbstractMemberTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_Definition.tmp#Definitiongml3_2Profile_diggs_xsd_Complex_Type_gml_DictionaryEntryType.tmp#DictionaryEntryType
Type gml:DictionaryEntryType
Type hierarchy
Properties
content complex
Used by
Complex Type gml:DictionaryType
Model
Children gml:Definition
Instance

<gml:dictionaryEntry xlink:href="" nilReason="" owns="false" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:Definition gml:id="">{1,1}</gml:Definition>
</gml:dictionaryEntry>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="dictionaryEntry" type="gml:DictionaryEntryType">
  <annotation>
    <documentation>This property element contains or refers to the definitions which are members of a dictionary. The content model follows the standard GML property pattern, so a gml:dictionaryEntry may either contain or refer to a single gml:Definition. Since gml:Dictionary is substitutable for gml:Definition, the content of an entry may itself be a lower level dictionary. Note that if the value is provided by reference, this definition does not carry a handle (gml:id) in this context, so does not allow external references to this specific definition in this context. When used in this way the referenced definition will usually be in a dictionary in the same XML document.</documentation>
  </annotation>
</element>
