Element gml:componentReferenceSystem
Namespace http://www.opengis.net/gml/3.2
Annotations

The gml:componentReferenceSystem elements are an ordered sequence of associations to all the component coordinate reference systems included in this compound coordinate reference system. The gml:AggregationAttributeGroup should be used to specify that the gml:componentReferenceSystem properties are ordered.

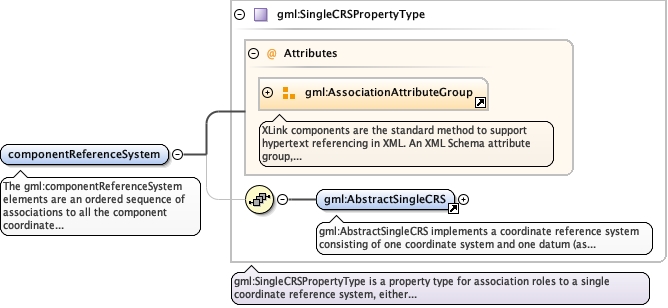

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractSingleCRS.tmp#AbstractSingleCRSgml3_2Profile_diggs_xsd_Complex_Type_gml_SingleCRSPropertyType.tmp#SingleCRSPropertyType
Type gml:SingleCRSPropertyType
Properties
content complex
Used by
Complex Type gml:CompoundCRSType
Model
Children gml:AbstractSingleCRS
Instance

<gml:componentReferenceSystem xlink:href="" nilReason="" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:AbstractSingleCRS gml:id="">{1,1}</gml:AbstractSingleCRS>
</gml:componentReferenceSystem>
Attributes
QName Type Use
nilReason gml:NilReasonType optional
xlink:href anyURI optional
Source

<element name="componentReferenceSystem" type="gml:SingleCRSPropertyType">
  <annotation>
    <documentation>The gml:componentReferenceSystem elements are an ordered sequence of associations to all the component coordinate reference systems included in this compound coordinate reference system. The gml:AggregationAttributeGroup should be used to specify that the gml:componentReferenceSystem properties are ordered.</documentation>
  </annotation>
</element>
