Element gml:baseCurve
Namespace http://www.opengis.net/gml/3.2
Annotations

The property baseCurve references or contains the base curve, i.e. it either
references the base curve via the XLink-attributes or contains the curve element. A curve
element is any element which is substitutable for AbstractCurve. The base curve has positive
orientation.

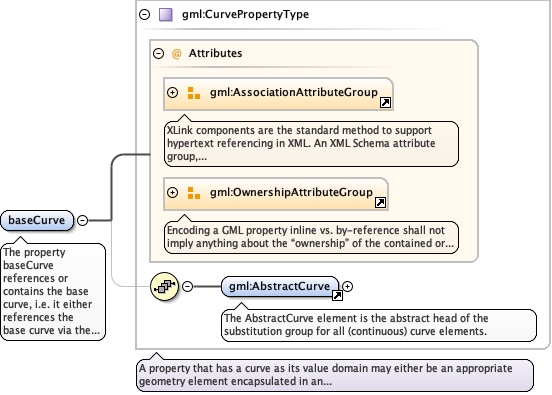

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractCurve.tmp#AbstractCurvegml3_2Profile_diggs_xsd_Complex_Type_gml_CurvePropertyType.tmp#CurvePropertyType
Type gml:CurvePropertyType
Properties
content complex
Used by
Model
Children gml:AbstractCurve
Instance

<gml:baseCurve xlink:href="" nilReason="" owns="false" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:AbstractCurve axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:AbstractCurve>
</gml:baseCurve>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="baseCurve" type="gml:CurvePropertyType">
  <annotation>
    <documentation>The property baseCurve references or contains the base curve, i.e. it either references the base curve via the XLink-attributes or contains the curve element. A curve element is any element which is substitutable for AbstractCurve. The base curve has positive orientation.</documentation>
  </annotation>
</element>
