Element gml:axisDirection
Namespace http://www.opengis.net/gml/3.2
Annotations
gml:axisDirection is the direction of this coordinate system axis (or in the
case of Cartesian projected coordinates, the direction of this coordinate system axis at the
origin). Within any set of coordinate system axes, only one of each pair of terms may be
used. For earth-fixed CRSs, this direction is often approximate and intended to provide a
human interpretable meaning to the axis. When a geodetic datum is used, the precise
directions of the axes may therefore vary slightly from this approximate direction. The
codeSpace attribute shall reference a source of information specifying the values and
meanings of all the allowed string values for this property.

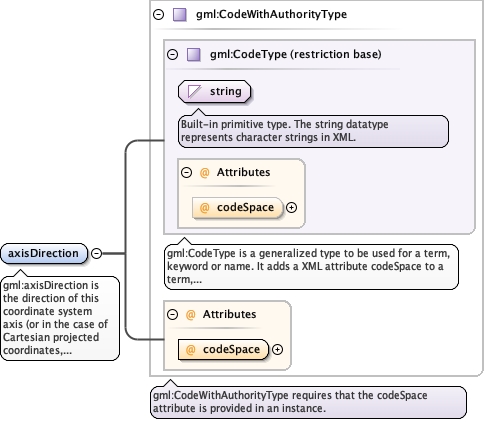

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeTypegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeWithAuthorityType.tmp#CodeWithAuthorityType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeWithAuthorityType.tmp#CodeWithAuthorityType
Type gml:CodeWithAuthorityType
Type hierarchy
Properties
content complex
Used by
Attributes
QName Type Use
codeSpace anyURI required
Source
<element name="axisDirection" type="gml:CodeWithAuthorityType">
  <annotation>
    <documentation>gml:axisDirection is the direction of this coordinate system axis (or in the case of Cartesian projected coordinates, the direction of this coordinate system axis at the origin). Within any set of coordinate system axes, only one of each pair of terms may be used. For earth-fixed CRSs, this direction is often approximate and intended to provide a human interpretable meaning to the axis. When a geodetic datum is used, the precise directions of the axes may therefore vary slightly from this approximate direction. The codeSpace attribute shall reference a source of information specifying the values and meanings of all the allowed string values for this property.</documentation>
  </annotation>
</element>
