Element gml:axis
Namespace http://www.opengis.net/gml/3.2
Annotations

The gml:axis property is an association role (ordered sequence) to the
coordinate system axes included in this coordinate system. The coordinate values in a
coordinate tuple shall be recorded in the order in which the coordinate system axes
associations are recorded, whenever those coordinates use a coordinate reference system that
uses this coordinate system. The gml:AggregationAttributeGroup should be used to specify
that the axis objects are ordered.

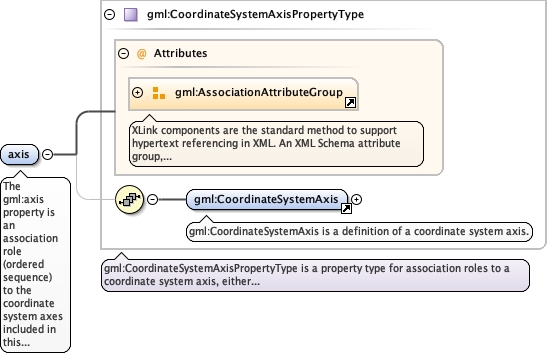

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_CoordinateSystemAxis.tmp#CoordinateSystemAxisgml3_2Profile_diggs_xsd_Complex_Type_gml_CoordinateSystemAxisPropertyType.tmp#CoordinateSystemAxisPropertyType
Type gml:CoordinateSystemAxisPropertyType
Properties
content complex
Used by
Model
Children gml:CoordinateSystemAxis
Instance

<gml:axis xlink:href="" nilReason="" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:CoordinateSystemAxis gml:id="" uom="">{1,1}</gml:CoordinateSystemAxis>
</gml:axis>
Attributes
QName Type Use
nilReason gml:NilReasonType optional
xlink:href anyURI optional
Source

<element name="axis" type="gml:CoordinateSystemAxisPropertyType">
  <annotation>
    <documentation>The gml:axis property is an association role (ordered sequence) to the coordinate system axes included in this coordinate system. The coordinate values in a coordinate tuple shall be recorded in the order in which the coordinate system axes associations are recorded, whenever those coordinates use a coordinate reference system that uses this coordinate system. The gml:AggregationAttributeGroup should be used to specify that the axis objects are ordered.</documentation>
  </annotation>
</element>
