Schema documentation for component gml:PolygonPatch

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Element gml:PolygonPatch

Namespace

http://www.opengis.net/gml/3.2

Annotations

A gml:PolygonPatch is a surface patch that is defined by a set of boundary
curves and an underlying surface to which these curves adhere. The curves shall be coplanar
and the polygon uses planar interpolation in its interior. interpolation is fixed to
"planar", i.e. an interpolation shall return points on a single plane. The boundary of the
patch shall be contained within that plane.

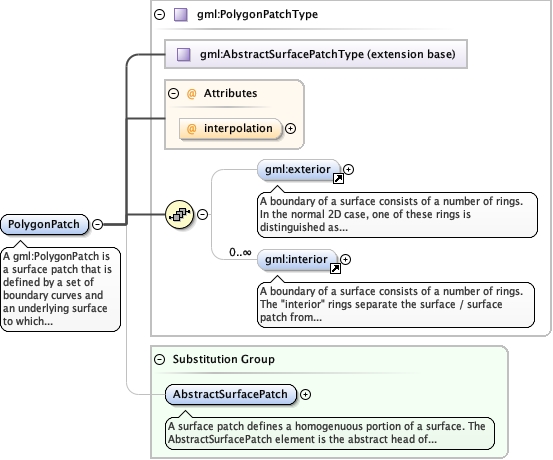

Diagram

Type

gml:PolygonPatchType

Type hierarchy

gml:AbstractSurfacePatchType
- gml:PolygonPatchType

Properties

content

complex

Substitution Group Affiliation

gml:AbstractSurfacePatch

Model

gml:exterior{0,1} , gml:interior*

Children

gml:exterior, gml:interior

Instance

<gml:PolygonPatch interpolation="planar" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:exterior>{0,1}</gml:exterior>
  <gml:interior>{0,unbounded}</gml:interior>
</gml:PolygonPatch>

Attributes

QName	Type	Fixed	Use
interpolation	gml:SurfaceInterpolationType	planar	optional

Source

<element name="PolygonPatch" type="gml:PolygonPatchType" substitutionGroup="gml:AbstractSurfacePatch">
  <annotation>
    <documentation>A gml:PolygonPatch is a surface patch that is defined by a set of boundary curves and an underlying surface to which these curves adhere. The curves shall be coplanar and the polygon uses planar interpolation in its interior. interpolation is fixed to "planar", i.e. an interpolation shall return points on a single plane. The boundary of the patch shall be contained within that plane.</documentation>
  </annotation>
</element>
