Schema documentation for component gml:CoverageMappingRule

Showing:

Annotations

Diagrams

Instances

Model

Properties

Source

Element gml:CoverageMappingRule

Namespace

http://www.opengis.net/gml/3.2

Annotations

gml:CoverageMappingRule provides a formal or informal description of the
coverage function. The mapping rule may be defined as an in-line string (gml:ruleDefinition)
or via a remote reference through xlink:href (gml:ruleReference). If no rule name is
specified, the default is â€˜Linearâ€™ with respect to members of the domain in document
order.

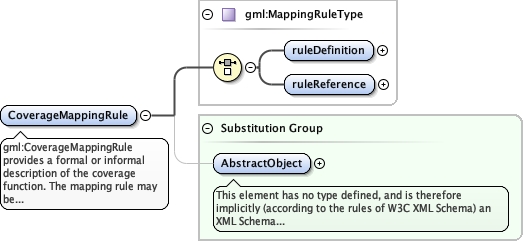

Diagram

Type

gml:MappingRuleType

Properties

content

complex

Substitution Group Affiliation

gml:AbstractObject

Model

gml:ruleDefinition | gml:ruleReference

Children

gml:ruleDefinition, gml:ruleReference

Instance

<gml:CoverageMappingRule xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:ruleDefinition>{1,1}</gml:ruleDefinition>
  <gml:ruleReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:ruleReference>
</gml:CoverageMappingRule>

Source

<element name="CoverageMappingRule" type="gml:MappingRuleType" substitutionGroup="gml:AbstractObject">
  <annotation>
    <documentation>gml:CoverageMappingRule provides a formal or informal description of the coverage function. The mapping rule may be defined as an in-line string (gml:ruleDefinition) or via a remote reference through xlink:href (gml:ruleReference). If no rule name is specified, the default is â€˜Linearâ€™ with respect to members of the domain in document order.</documentation>
  </annotation>
</element>
