Element diggs:DriveSet

Namespace

http://diggsml.org/schema-dev

Annotations

An object containing properties that capturea blow counts for tests where samplers
or instruments are driven by impact methods.

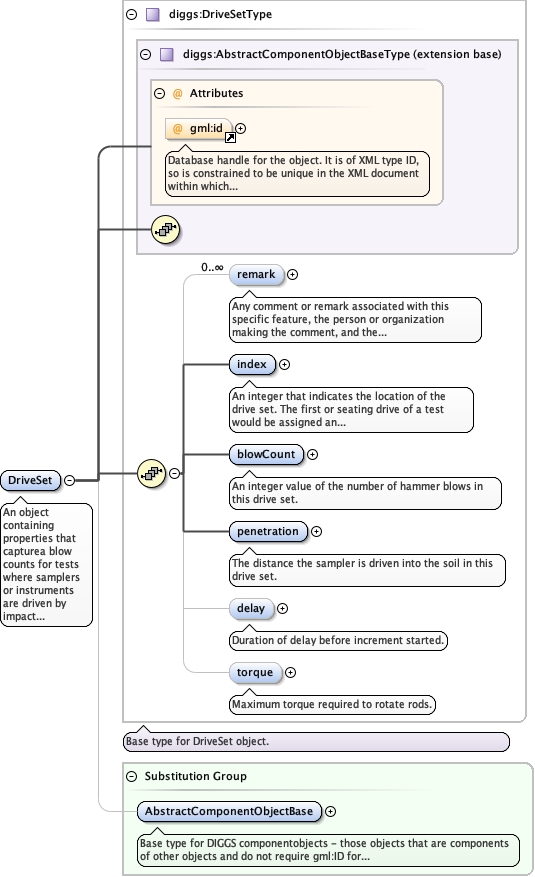

Diagram

Type

diggs:DriveSetType

Type hierarchy

diggs:AbstractComponentObjectBaseType
- diggs:DriveSetType

Properties

content	complex
abstract	false

Substitution Group Affiliation

diggs:AbstractComponentObjectBase

Used by

Complex Type

diggs:DriveSetPropertyType

Model

diggs:remark* , diggs:index , diggs:blowCount , diggs:penetration , diggs:delay{0,1} , diggs:torque{0,1}

Children

diggs:blowCount, diggs:delay, diggs:index, diggs:penetration, diggs:remark, diggs:torque

Instance

<diggs:DriveSet gml:id="" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:index>{1,1}</diggs:index>
  <diggs:blowCount>{1,1}</diggs:blowCount>
  <diggs:penetration uom="">{1,1}</diggs:penetration>
  <diggs:delay>{0,1}</diggs:delay>
  <diggs:torque uom="">{0,1}</diggs:torque>
</diggs:DriveSet>

Attributes

QName

Type

Use

Annotation

gml:id

optional

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<element name="DriveSet" type="diggs:DriveSetType" abstract="false" substitutionGroup="diggs:AbstractComponentObjectBase">
  <annotation>
    <documentation>An object containing properties that capturea blow counts for tests where samplers or instruments are driven by impact methods.</documentation>
  </annotation>
</element>
