Element diggs:PDAStrainTransducer
Namespace http://diggsml.org/schema-dev

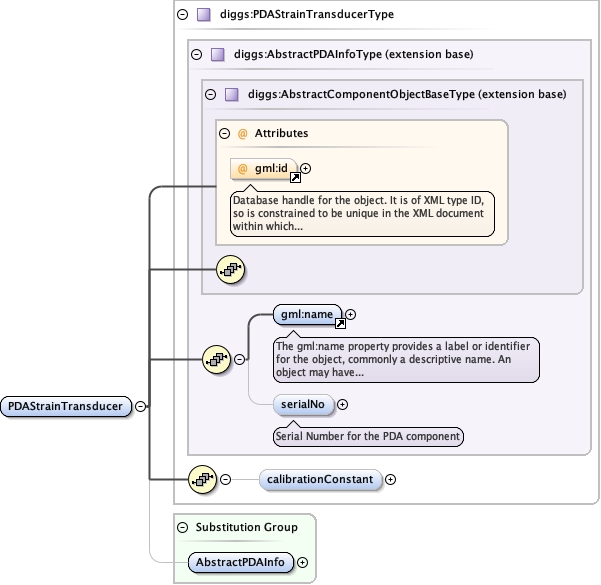

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idKernel_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#namePiling_xsd_Complex_Type_diggs_AbstractPDAInfoType.tmp#AbstractPDAInfoType_serialNoPiling_xsd_Complex_Type_diggs_AbstractPDAInfoType.tmp#AbstractPDAInfoTypePiling_xsd_Complex_Type_diggs_PDAStrainTransducerType.tmp#PDAStrainTransducerType_calibrationConstantPiling_xsd_Complex_Type_diggs_PDAStrainTransducerType.tmp#PDAStrainTransducerTypePiling_xsd_Element_diggs_AbstractPDAInfo.tmp#AbstractPDAInfo
Type diggs:PDAStrainTransducerType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:calibrationConstant, diggs:serialNo, gml:name
Instance

<diggs:PDAStrainTransducer gml:id="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:name codeSpace="">{1,1}</gml:name>
  <diggs:serialNo>{0,1}</diggs:serialNo>
  <diggs:calibrationConstant>{0,1}</diggs:calibrationConstant>
</diggs:PDAStrainTransducer>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="PDAStrainTransducer" substitutionGroup="diggs:AbstractPDAInfo" type="diggs:PDAStrainTransducerType"/>
