Element diggs:Color
Namespace http://diggsml.org/schema-dev
Annotations
An object that describes the color of earth materials.

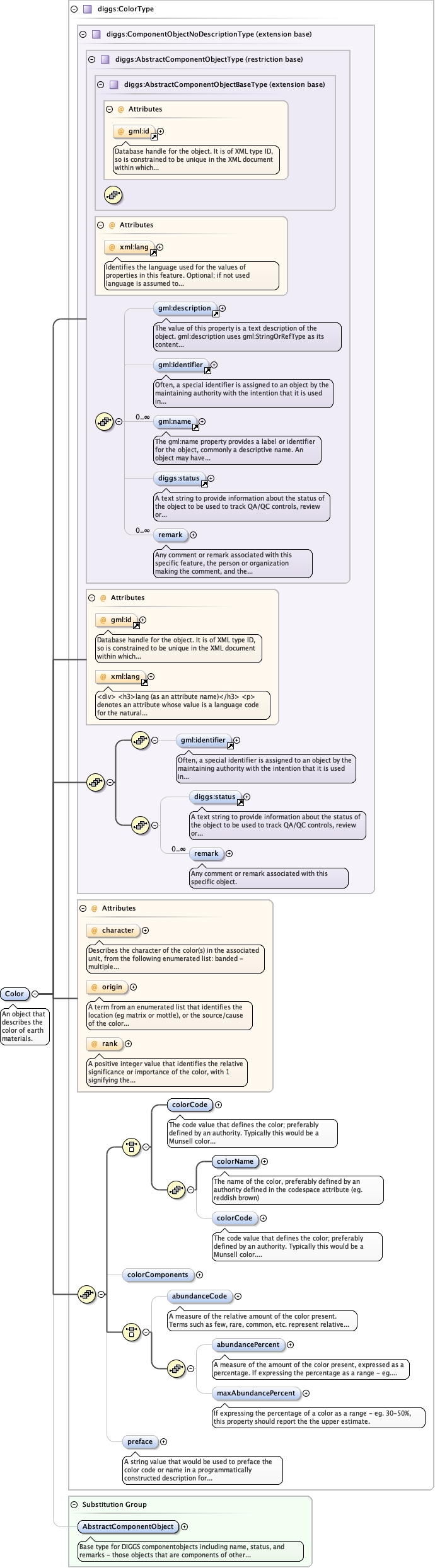

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idKernel_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idxml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_ComponentObjectNoDescriptionType.tmp#ComponentObjectNoDescriptionType_remarkKernel_xsd_Complex_Type_diggs_ComponentObjectNoDescriptionType.tmp#ComponentObjectNoDescriptionTypeKernel_xsd_Complex_Type_diggs_ColorType.tmp#ColorType_characterKernel_xsd_Complex_Type_diggs_ColorType.tmp#ColorType_originKernel_xsd_Complex_Type_diggs_ColorType.tmp#ColorType_rankKernel_xsd_Complex_Type_diggs_ColorType.tmp#ColorType_colorCodeKernel_xsd_Complex_Type_diggs_ColorType.tmp#ColorType_colorNameKernel_xsd_Complex_Type_diggs_ColorType.tmp#ColorType_colorComponentsKernel_xsd_Complex_Type_diggs_ColorType.tmp#ColorType_abundanceCodeKernel_xsd_Complex_Type_diggs_ColorType.tmp#ColorType_abundancePercentKernel_xsd_Complex_Type_diggs_ColorType.tmp#ColorType_maxAbundancePercentKernel_xsd_Complex_Type_diggs_ColorType.tmp#ColorType_prefaceKernel_xsd_Complex_Type_diggs_ColorType.tmp#ColorTypeKernel_xsd_Element_diggs_AbstractComponentObject.tmp#AbstractComponentObject
Type diggs:ColorType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children diggs:abundanceCode, diggs:abundancePercent, diggs:colorCode, diggs:colorComponents, diggs:colorName, diggs:maxAbundancePercent, diggs:preface, diggs:remark, diggs:status, gml:identifier
Instance
<diggs:Color character="" gml:id="" xml:lang="" origin="" rank="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:colorCode codeSpace="" howDetermined="">{1,1}</diggs:colorCode>
  <diggs:colorName codeSpace="" howDetermined="">{1,1}</diggs:colorName>
  <diggs:colorCode codeSpace="" howDetermined="">{0,1}</diggs:colorCode>
  <diggs:colorComponents>{0,1}</diggs:colorComponents>
  <diggs:abundanceCode codeSpace="">{0,1}</diggs:abundanceCode>
  <diggs:abundancePercent approximator="" byVolume="" uom="">{0,1}</diggs:abundancePercent>
  <diggs:maxAbundancePercent approximator="" byVolume="" uom="">{0,1}</diggs:maxAbundancePercent>
  <diggs:preface xml:lang="">{0,1}</diggs:preface>
</diggs:Color>
Attributes
QName Type Use Annotation
character diggs:ColorCharacterEnumType optional
Describes the character of the color(s) in the associated
unit, from the following enumerated list: banded - multiple colors occur
in horizontal layers within the unit mottled - unit consists of a
pattern of irregular spots, blotches or patches of a different color
than the unit matrix color multicalored - unit consists of multiple
colors where there is no description of the pattern or character of the
various colors uniform - unit consists of a single color variegated - a
multicolored unit containing spots, streaks, or blotches of multiple
colors
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
origin diggs:ColorOriginEnumType optional
A term from an enumerated list that identifies the location
(eg matrix or mottle), or the source/cause of the color described.
Defined terms are: matrix - the color of the soil or rock matrix mottle
- the color of soil mottles clay depletion - color caused by depletion
of clay iron depletion - color caused by depletion of iron iron Fe2 mass
- color caused by masses of reduced iron iron Fe3 mass - color caused by
masses of oxidized iron iron-manganese mass - color caused by masses of
iron and manganese jarosite mass - color caused by masses of jarosite
manganese mass - color caused by masses of manganese ironstone module -
color caused by ironstone nodules iron-manganese nodule - color caused
by iron-manganese nodules jarosite nodule - color caused by jarosite
nodules plinthite - color caused by plinthite(s) (an iron-rich,
humus-poor mixture of clay with quartz and other minerals).
iron-manganese concretion - color caused by iron-manganese concretions
manganese coat or film - color caused by manganese coats or films
disseminated carbonate - color caused by disseminated calcium carbonate
disseminated salts - color caused by disseminated unspecified salts
disseminated gypsum - color caused by disseminated gypsum barite mass -
color caused by masses of barite gypsum mass - color caused by masses of
gypsum carbonate mass - color caused by masses of calcium carbonate salt
mass - color caused by masses of unspecified salt clay body - color
caused by included bodies of clay silica mass - color caused by masses
of silica gypsum crystal clusters - color caused by crystal clusters of
gypsum carbonate nodule - color caused by nodules of carbonate durinode
(SiO2) nodule - color caused by nodules of SiO2 gibbsite (Al1O3) nodule
- color caused by nodules of Al2O3 opal nodule - color caused by nodules
of opal ortstein nodule - color caused by hardpans cemented with iron
and organic matter carbonate concretion - color caused by concretions of
calcium carbonate gibbsite concretion - color caused by concretions of
gibbsite silica concretion - color caused by concretions of silica
titanium oxide - color caused by concretions of titanium oxide barite
crystals - color caused by crystals of barite calcite crystals - color
caused by calcite crystals gypsum crystals - color caused by gypsum
crystals salt crystals - color caused by salt crystals satin spar
crystals - color caused by crystals of satin spar gypsum selenite
crystals - color caused by crystals of selenite gypsum
rank positiveInteger optional
A positive integer value that identifies the relative significance or importance of the color, with 1 signifying the highest rank. Using this attribute eliminates possible ambiguity when using abundanceCode to infer significance.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source
<element name="Color" substitutionGroup="diggs:AbstractComponentObject" type="diggs:ColorType">
  <annotation>
    <documentation>An object that describes the color of earth materials.</documentation>
  </annotation>
</element>
