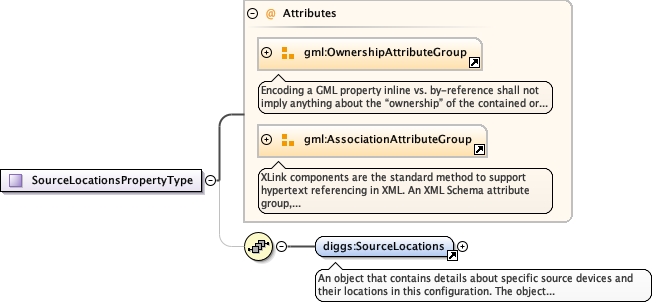

Schema documentation for component diggs:SourceLocationsPropertyType

QName

Type

Fixed

Default

Use

Annotation

nilReason

gml:NilReasonType

optional

owns

boolean

false

optional

xlink:actuate

restriction of string

optional

The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained

xlink:arcrole

anyURI

optional

xlink:href

anyURI

optional

xlink:role

anyURI

optional

xlink:show

restriction of string

optional

The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained

xlink:title

string

optional

xlink:type

string

simple

optional

<complexType name="SourceLocationsPropertyType"> <sequence maxOccurs="1" minOccurs="0"> <element ref="diggs:SourceLocations"> <annotation> <documentation>An object that contains details about specific source devices and their locations in this configuration. The object contains two properties: sourceRef and sourceLocations. sourcerRef references a sincle GP_Source object. If only one GP_Source object is listed, then the sourceLocations property may contain any of PointLocation, MultiPointLocation or RecifiedGrid geometries. If MultiPointLocation or RectifiedGrid is used, then either the GP_Source identified is successively moved to all locations of the geometry or the GP_Source represents a group of receivers with identical properties that are installed at each location. This distinction is identified using the IsGroup property of the GP_Source object. If more than one GP_Source is referenced, then use of the PointLocation geometry implies that all sources are located at the same point location. If MultiPointLocation or RectifiedGrid geometries are used, then there must be the same number of individual locations in the geometry as there are GF_Source objects referenced, and the individual locations must be in sourceRef order so that each receiver's location can be determined.</documentation> </annotation> </element> </sequence> <attributeGroup ref="gml:OwnershipAttributeGroup"/> <attributeGroup ref="gml:AssociationAttributeGroup"/> </complexType>
