Schema documentation for component diggs:DataAcquisitionSystemPropertyType

Showing:

Annotations

Attributes

Diagrams

Model

Source

Used by

Complex Type diggs:DataAcquisitionSystemPropertyType

Namespace

http://diggsml.org/schemas/3

Annotations

Property type for data acquisition system references. Used to wrap data acquisition system objects or references in properties.

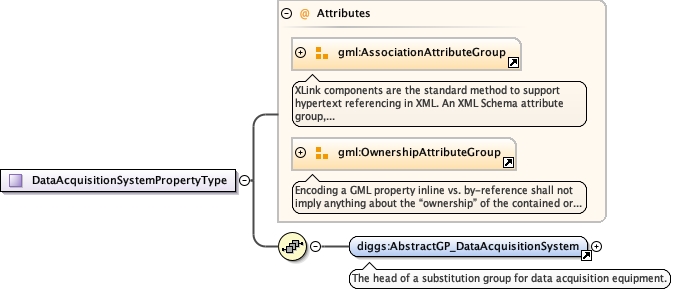

Diagram

Used by

Element

diggs:GP_FieldProcedureType/diggs:dataAcquisitionSystem

Model

diggs:AbstractGP_DataAcquisitionSystem

Children

diggs:AbstractGP_DataAcquisitionSystem

Attributes

QName	Type	Default	Use
nilReason	gml:NilReasonType		optional
owns	boolean	false	optional
xlink:href	anyURI		optional

Source

<complexType name="DataAcquisitionSystemPropertyType">
  <annotation>
    <documentation>Property type for data acquisition system references. Used to wrap data acquisition system objects or references in properties.</documentation>
  </annotation>
  <sequence minOccurs="0" maxOccurs="1">
    <element ref="diggs:AbstractGP_DataAcquisitionSystem"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
  <attributeGroup ref="gml:OwnershipAttributeGroup"/>
</complexType>
