Element diggs_geo:parameters
Namespace http://diggsml.org/schemas/3/geotechnical
Annotations

An object that contains Diggs property parameters.

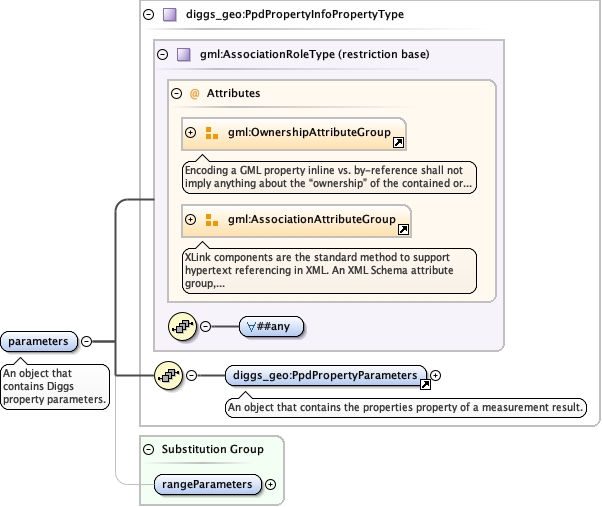

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AssociationRoleType.tmp#AssociationRoleTypeDiggs_geo_deprecated_xsd_Element_diggs_geo_PpdPropertyParameters.tmp#PpdPropertyParametersDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_PpdPropertyInfoPropertyType.tmp#PpdPropertyInfoPropertyTypegml3_2Profile_diggs_xsd_Element_gml_rangeParameters.tmp#rangeParameters
Type diggs_geo:PpdPropertyInfoPropertyType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Complex Type diggs_geo:PpdResultSetType
Model
diggs_geo:PpdPropertyParameters
Children diggs_geo:PpdPropertyParameters
Instance

<diggs_geo:parameters xlink:href="" nilReason="" owns="false" xmlns:diggs_geo="http://diggsml.org/schemas/3/geotechnical">
  <diggs_geo:PpdPropertyParameters aggregationType="" gml:id="">{1,1}</diggs_geo:PpdPropertyParameters>
</diggs_geo:parameters>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="parameters" substitutionGroup="gml:rangeParameters" type="diggs_geo:PpdPropertyInfoPropertyType">
  <annotation>
    <appinfo>DEPRECATED 1/26. Please use equivalent element in the diggs: namespace</appinfo>
    <documentation>An object that contains Diggs property parameters.</documentation>
  </annotation>
</element>
