Schema documentation for component diggs:ValueBinding

Showing:

Annotations

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:ValueBinding

Namespace

http://diggsml.org/schemas/3

Annotations

One way of finding the value of a defined property in DIGGS data, and of
turning it into the value an acceptance criterion's limit is compared against.

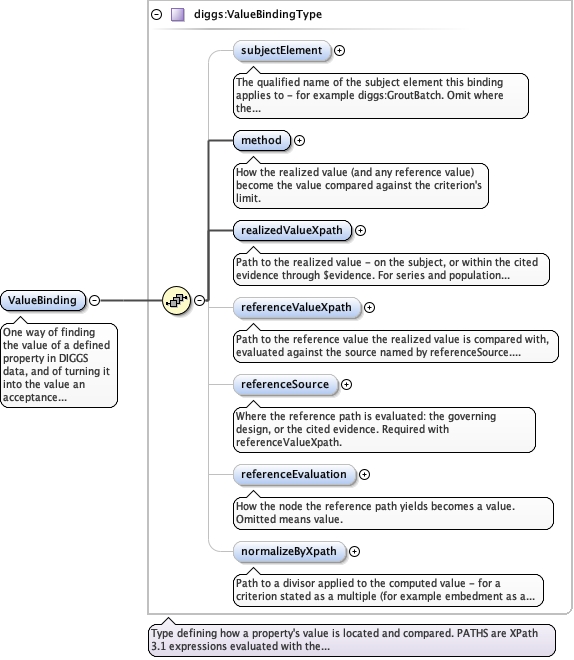

Diagram

Type

diggs:ValueBindingType

Properties

content

complex

Used by

Complex Type

diggs:ValueBindingArrayPropertyType

Model

diggs:subjectElement{0,1} , diggs:method , diggs:realizedValueXpath , diggs:referenceValueXpath{0,1} , diggs:referenceSource{0,1} , diggs:referenceEvaluation{0,1} , diggs:normalizeByXpath{0,1}

Children

diggs:method, diggs:normalizeByXpath, diggs:realizedValueXpath, diggs:referenceEvaluation, diggs:referenceSource, diggs:referenceValueXpath, diggs:subjectElement

Instance

<diggs:ValueBinding xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:subjectElement>{0,1}</diggs:subjectElement>
  <diggs:method>{1,1}</diggs:method>
  <diggs:realizedValueXpath>{1,1}</diggs:realizedValueXpath>
  <diggs:referenceValueXpath>{0,1}</diggs:referenceValueXpath>
  <diggs:referenceSource>{0,1}</diggs:referenceSource>
  <diggs:referenceEvaluation>{0,1}</diggs:referenceEvaluation>
  <diggs:normalizeByXpath>{0,1}</diggs:normalizeByXpath>
</diggs:ValueBinding>

Source

<element name="ValueBinding" type="diggs:ValueBindingType">
  <annotation>
    <documentation>One way of finding the value of a defined property in DIGGS data, and of turning it into the value an acceptance criterion's limit is compared against.</documentation>
  </annotation>
</element>
