Element diggs:holeBearing
Namespace http://diggsml.org/schemas/3
Annotations

DEPRECATED. Use bearing. The bearing of the hole.

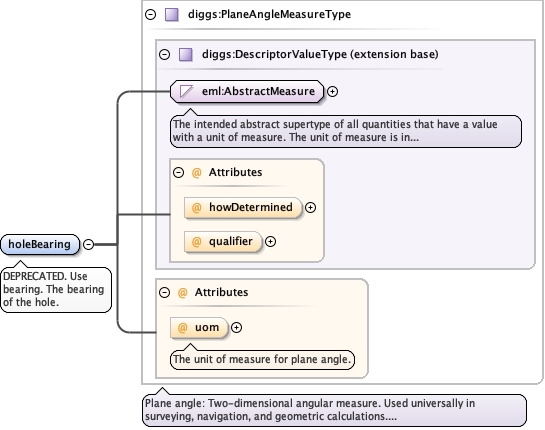

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType
Type diggs:PlaneAngleMeasureType
Type hierarchy
Properties
content complex
Used by
Complex Type diggs:BoreholeType
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PlaneAngleUomEnumType optional
The unit of measure for plane angle.
Source

<element name="holeBearing" type="diggs:PlaneAngleMeasureType">
  <annotation>
    <appinfo>
      <diggs:deprecated since="3.0.0" replacedBy="diggs:bearing"/>
    </appinfo>
    <documentation>DEPRECATED. Use bearing. The bearing of the hole.</documentation>
  </annotation>
</element>
