Element diggs:gridMappingFunction
Namespace http://diggsml.org/schemas/3
Annotations

The mapping function from the domain to the range for gridded locations. If omitted,
gml:startPoint is assumed to be the value of gml:low in the gml:Grid geometry,
gml:sequenceRule is assumed to be linear, and gml:axisOrder is assumed to be "+1
+2".

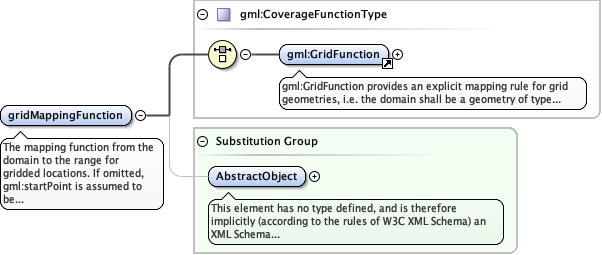

Diagram
Diagramgml3_2Profile_diggs_xsd_Element_gml_GridFunction.tmp#GridFunctiongml3_2Profile_diggs_xsd_Complex_Type_gml_CoverageFunctionType.tmp#CoverageFunctionTypegml3_2Profile_diggs_xsd_Element_gml_AbstractObject.tmp#AbstractObject
Type gml:CoverageFunctionType
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children gml:GridFunction
Instance

<diggs:gridMappingFunction xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:GridFunction>{1,1}</gml:GridFunction>
</diggs:gridMappingFunction>
Source

<element name="gridMappingFunction" substitutionGroup="gml:AbstractObject" type="gml:CoverageFunctionType">
  <annotation>
    <documentation>The mapping function from the domain to the range for gridded locations. If omitted, gml:startPoint is assumed to be the value of gml:low in the gml:Grid geometry, gml:sequenceRule is assumed to be linear, and gml:axisOrder is assumed to be "+1 +2".</documentation>
  </annotation>
</element>
