Element gml:valueComponents
Namespace http://www.opengis.net/gml/3.2
Annotations

Property that contains Values.

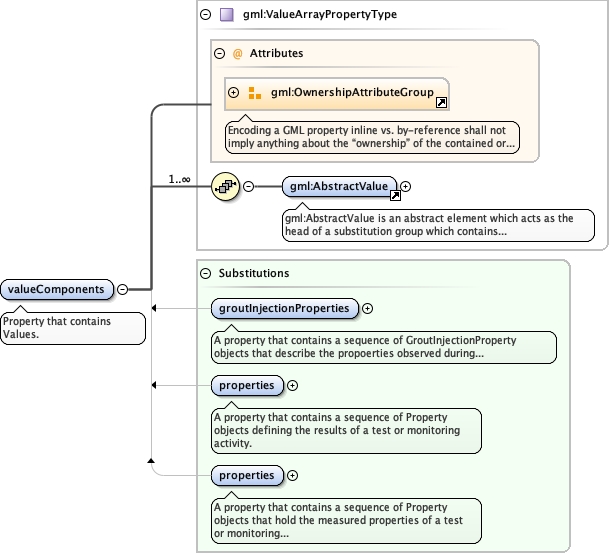

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractValue.tmp#AbstractValuegml3_2Profile_diggs_xsd_Complex_Type_gml_ValueArrayPropertyType.tmp#ValueArrayPropertyTypeGrouting_xsd_Element_diggs_groutInjectionProperties.tmp#groutInjectionPropertiesDiggs_geo_deprecated_xsd_Element_diggs_geo_properties.tmp#http___diggsml.org_schemas_3_geotechnical_propertiesCommon_xsd_Element_diggs_properties.tmp#properties
Type gml:ValueArrayPropertyType
Properties
content complex
Substitution Group
Used by
Model
Children gml:AbstractValue
Instance

<gml:valueComponents owns="false" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:AbstractValue>{1,1}</gml:AbstractValue>
</gml:valueComponents>
Attributes
QName Type Default Use
owns boolean false optional
Schema location file:/Users/dponti/GitHub/diggs-schema/core/gml3.2Profile_diggs.xsd
