Element gml:LinearRing
Namespace http://www.opengis.net/gml/3.2
Annotations

A LinearRing is defined by four or more coordinate tuples, with linear
interpolation between them; the first and last coordinates shall be coincident. The number
of direct positions in the list shall be at least four.

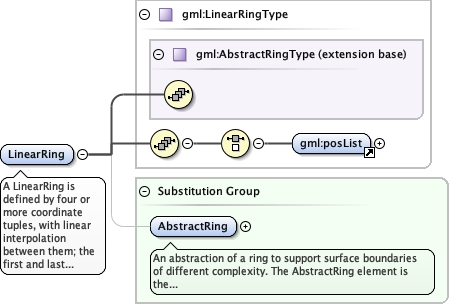

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractRingType.tmp#AbstractRingTypegml3_2Profile_diggs_xsd_Element_gml_posList.tmp#posListgml3_2Profile_diggs_xsd_Complex_Type_gml_LinearRingType.tmp#LinearRingTypegml3_2Profile_diggs_xsd_Element_gml_AbstractRing.tmp#AbstractRing
Type gml:LinearRingType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children gml:posList
Instance

<gml:LinearRing xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:posList axisLabels="" count="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:posList>
</gml:LinearRing>
Schema location file:/Users/dponti/GitHub/diggs-schema/core/gml3.2Profile_diggs.xsd
