Element gml:coverageFunction
Namespace http://www.opengis.net/gml/3.2
Annotations

The gml:coverageFunction property describes the mapping function from the
domain to the range of the coverage. The value of the CoverageFunction is one of
gml:CoverageMappingRule and gml:GridFunction. If the gml:coverageFunction property is
omitted for a gridded coverage (including rectified gridded coverages) the gml:startPoint is
assumed to be the value of the gml:low property in the gml:Grid geometry, and the
gml:sequenceRule is assumed to be linear and the gml:axisOrder property is assumed to be
“+1 +2”.

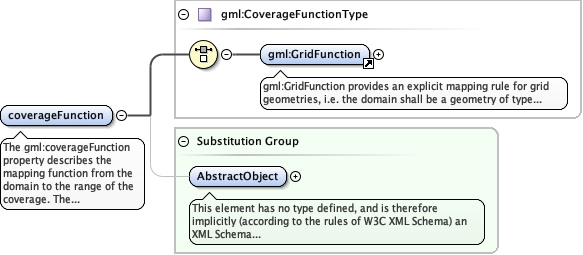

Diagram
Diagramgml3_2Profile_diggs_xsd_Element_gml_GridFunction.tmp#GridFunctiongml3_2Profile_diggs_xsd_Complex_Type_gml_CoverageFunctionType.tmp#CoverageFunctionTypegml3_2Profile_diggs_xsd_Element_gml_AbstractObject.tmp#AbstractObject
Type gml:CoverageFunctionType
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children gml:GridFunction
Instance

<gml:coverageFunction xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:GridFunction>{1,1}</gml:GridFunction>
</gml:coverageFunction>
Schema location file:/Users/dponti/GitHub/diggs-schema/core/gml3.2Profile_diggs.xsd
