Element gml:Grid
Namespace http://www.opengis.net/gml/3.2
Annotations

The gml:Grid implicitly defines an unrectified grid, which is a network
composed of two or more sets of curves in which the members of each set intersect the
members of the other sets in an algorithmic way. The region of interest within the grid is
given in terms of its gml:limits, being the grid coordinates of diagonally opposed corners
of a rectangular region. gml:axisLabels is provided with a list of labels of the axes of the
grid (gml:axisName has been deprecated). gml:dimension specifies the dimension of the grid.
The gml:limits element contains a single gml:GridEnvelope. The gml:low and gml:high property
elements of the envelope are each integerLists, which are coordinate tuples, the coordinates
being measured as offsets from the origin of the grid along each axis, of the diagonally
opposing corners of a “rectangular” region of interest.

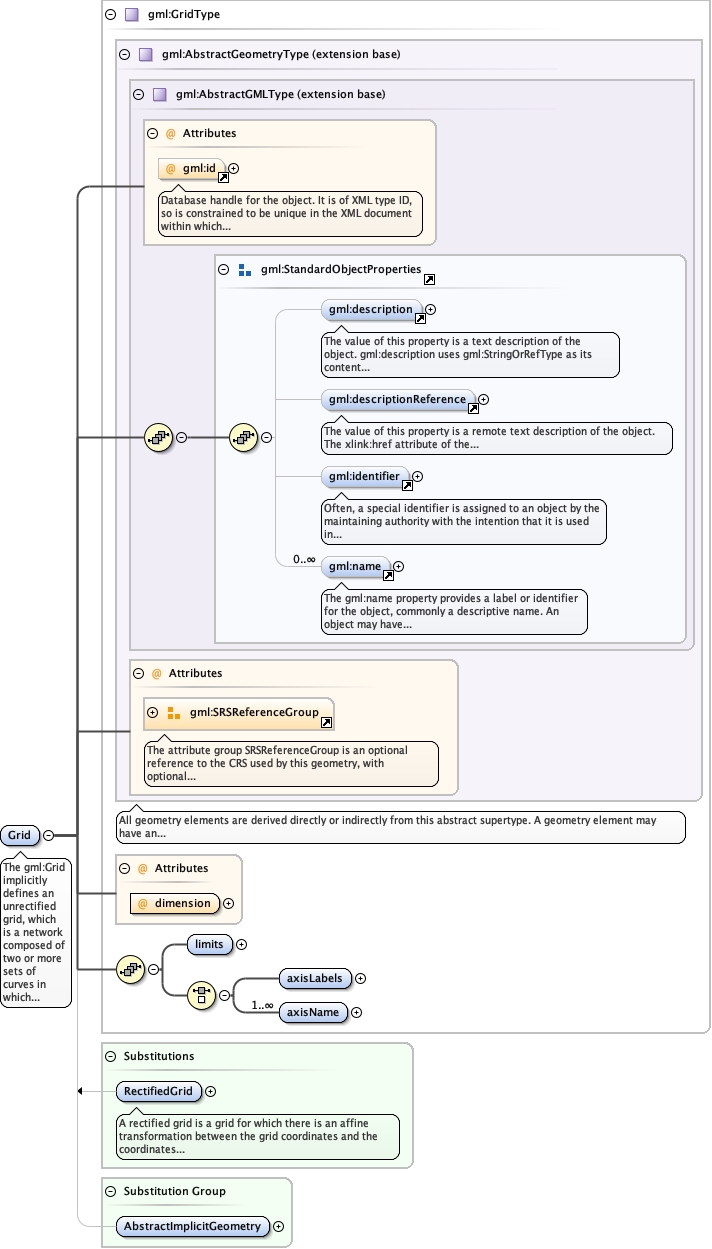

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#AbstractGeometryTypegml3_2Profile_diggs_xsd_Complex_Type_gml_GridType.tmp#GridType_dimensiongml3_2Profile_diggs_xsd_Complex_Type_gml_GridType.tmp#GridType_limitsgml3_2Profile_diggs_xsd_Complex_Type_gml_GridType.tmp#GridType_axisLabelsgml3_2Profile_diggs_xsd_Complex_Type_gml_GridType.tmp#GridType_axisNamegml3_2Profile_diggs_xsd_Complex_Type_gml_GridType.tmp#GridTypegml3_2Profile_diggs_xsd_Element_gml_RectifiedGrid.tmp#RectifiedGridgml3_2Profile_diggs_xsd_Element_gml_AbstractImplicitGeometry.tmp#AbstractImplicitGeometry
Type gml:GridType
Type hierarchy
Properties
content complex
Substitution Group
Substitution Group Affiliation
Model
Children gml:axisLabels, gml:axisName, gml:description, gml:descriptionReference, gml:identifier, gml:limits, gml:name
Instance

<gml:Grid axisLabels="" dimension="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:limits>{1,1}</gml:limits>
  <gml:axisLabels>{1,1}</gml:axisLabels>
  <gml:axisName>{1,unbounded}</gml:axisName>
</gml:Grid>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
dimension positiveInteger required
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Schema location file:/Users/dponti/GitHub/diggs-schema/core/gml3.2Profile_diggs.xsd
