Element gml:AbstractDatum
Namespace http://www.opengis.net/gml/3.2
Annotations

A gml:AbstractDatum specifies the relationship of a coordinate system to the
earth, thus creating a coordinate reference system. A datum uses a parameter or set of
parameters that determine the location of the origin of the coordinate reference system.
Each datum subtype may be associated with only specific types of coordinate systems. This
abstract complex type shall not be used, extended, or restricted, in a GML Application
Schema, to define a concrete subtype with a meaning equivalent to a concrete subtype
specified in this document.

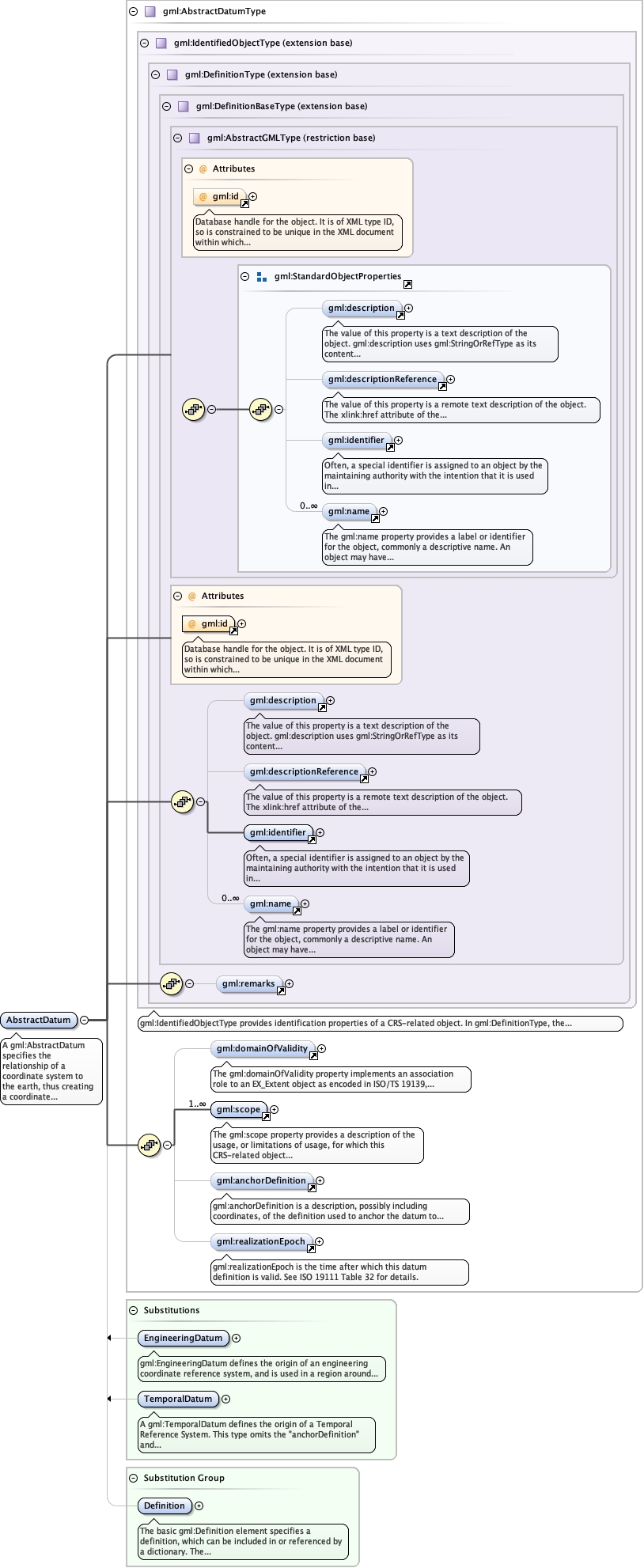

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Complex_Type_gml_DefinitionBaseType.tmp#DefinitionBaseTypegml3_2Profile_diggs_xsd_Element_gml_remarks.tmp#remarksgml3_2Profile_diggs_xsd_Complex_Type_gml_DefinitionType.tmp#DefinitionTypegml3_2Profile_diggs_xsd_Complex_Type_gml_IdentifiedObjectType.tmp#IdentifiedObjectTypegml3_2Profile_diggs_xsd_Element_gml_domainOfValidity.tmp#domainOfValiditygml3_2Profile_diggs_xsd_Element_gml_scope.tmp#scopegml3_2Profile_diggs_xsd_Element_gml_anchorDefinition.tmp#anchorDefinitiongml3_2Profile_diggs_xsd_Element_gml_realizationEpoch.tmp#realizationEpochgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractDatumType.tmp#AbstractDatumTypegml3_2Profile_diggs_xsd_Element_gml_EngineeringDatum.tmp#EngineeringDatumgml3_2Profile_diggs_xsd_Element_gml_TemporalDatum.tmp#TemporalDatumgml3_2Profile_diggs_xsd_Element_gml_Definition.tmp#Definition
Type gml:AbstractDatumType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Substitution Group Affiliation
Model
Children gml:anchorDefinition, gml:description, gml:descriptionReference, gml:domainOfValidity, gml:identifier, gml:name, gml:realizationEpoch, gml:remarks, gml:scope
Instance

<gml:AbstractDatum gml:id="" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{1,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:remarks>{0,1}</gml:remarks>
  <gml:domainOfValidity xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:domainOfValidity>
  <gml:scope>{1,unbounded}</gml:scope>
  <gml:anchorDefinition codeSpace="">{0,1}</gml:anchorDefinition>
  <gml:realizationEpoch>{0,1}</gml:realizationEpoch>
</gml:AbstractDatum>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/gml3.2Profile_diggs.xsd
