Element diggs:gridMappingFunction
Namespace http://diggsml.org/schemas/3
Annotations

The gridMappingFunction property describes the mapping function from the
domain to the range for gridded locations. If omitted, the gml:startPoint is assumed
to be the value of the gml:low property in the gml:Grid geometry, and the
gml:sequenceRule is assumed to be linear and the gml:axisOrder property is assumed
to be “+1 +2”.

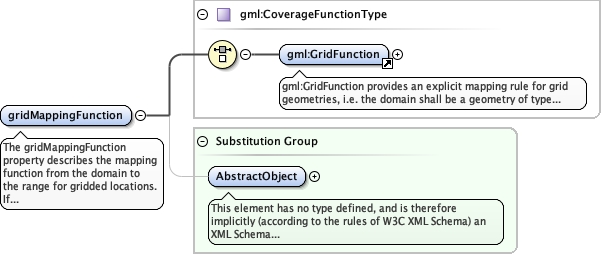

Diagram
Diagramgml3_2Profile_diggs_xsd_Element_gml_GridFunction.tmp#GridFunctiongml3_2Profile_diggs_xsd_Complex_Type_gml_CoverageFunctionType.tmp#CoverageFunctionTypegml3_2Profile_diggs_xsd_Element_gml_AbstractObject.tmp#AbstractObject
Type gml:CoverageFunctionType
Properties
content complex
Substitution Group Affiliation
Used by
Complex Type diggs:TestResultType
Model
Children gml:GridFunction
Instance

<diggs:gridMappingFunction xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:GridFunction>{1,1}</gml:GridFunction>
</diggs:gridMappingFunction>
Schema location file:/Users/dponti/GitHub/diggs-schema/core/Core.xsd
