Element diggs:results
Namespace http://diggsml.org/schemas/3
Annotations

A property that holds a ResultSet object

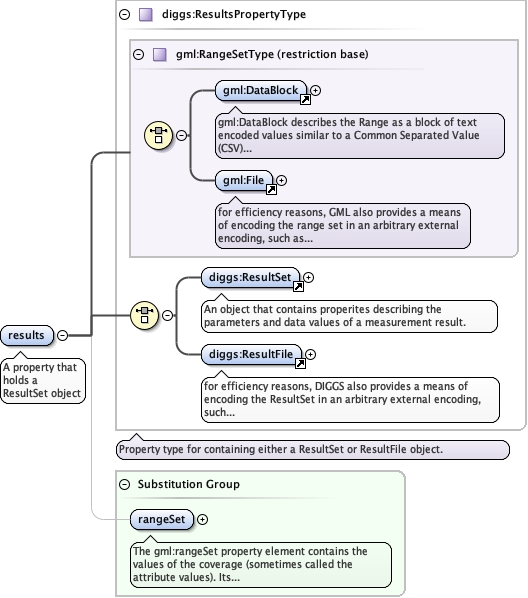

Diagram
Diagramgml3_2Profile_diggs_xsd_Element_gml_DataBlock.tmp#DataBlockgml3_2Profile_diggs_xsd_Element_gml_File.tmp#Filegml3_2Profile_diggs_xsd_Complex_Type_gml_RangeSetType.tmp#RangeSetTypeCommon_xsd_Element_diggs_ResultSet.tmp#ResultSetCommon_xsd_Element_diggs_ResultFile.tmp#ResultFileCommon_xsd_Complex_Type_diggs_ResultsPropertyType.tmp#ResultsPropertyTypegml3_2Profile_diggs_xsd_Element_gml_rangeSet.tmp#rangeSet
Type diggs:ResultsPropertyType
Type hierarchy
Properties
content complex
nillable true
Substitution Group Affiliation
Used by
Model
Children diggs:ResultFile, diggs:ResultSet
Instance

<diggs:results xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:ResultSet>{1,1}</diggs:ResultSet>
  <diggs:ResultFile>{1,1}</diggs:ResultFile>
</diggs:results>
Schema location file:/Users/dponti/GitHub/diggs-schema/core/Common.xsd
