Element diggs:Environment
Namespace http://diggsml.org/schemas/3
Annotations

A collection of environmental parameters recorded at a specific time
instant.

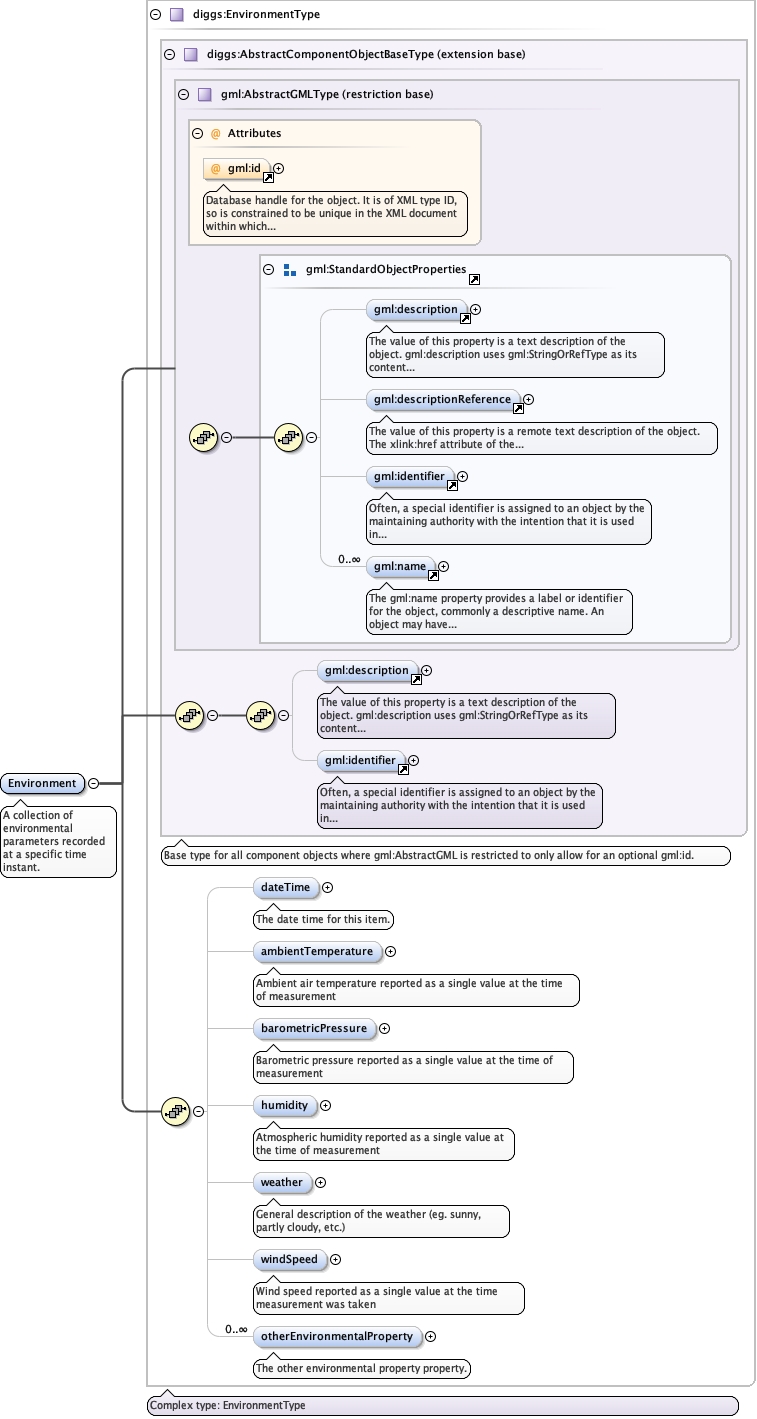

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeCommon_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_dateTimeCommon_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_ambientTemperatureCommon_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_barometricPressureCommon_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_humidityCommon_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_weatherCommon_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_windSpeedCommon_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_otherEnvironmentalPropertyCommon_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType
Type diggs:EnvironmentType
Type hierarchy
Properties
content complex
abstract false
Used by
Model
Children diggs:ambientTemperature, diggs:barometricPressure, diggs:dateTime, diggs:humidity, diggs:otherEnvironmentalProperty, diggs:weather, diggs:windSpeed, gml:description, gml:identifier
Instance

<diggs:Environment gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:dateTime calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:dateTime>
  <diggs:ambientTemperature howDetermined="" qualifier="" uom="">{0,1}</diggs:ambientTemperature>
  <diggs:barometricPressure howDetermined="" qualifier="" uom="">{0,1}</diggs:barometricPressure>
  <diggs:humidity howDetermined="" qualifier="" uom="">{0,1}</diggs:humidity>
  <diggs:weather>{0,1}</diggs:weather>
  <diggs:windSpeed howDetermined="" qualifier="" uom="">{0,1}</diggs:windSpeed>
  <diggs:otherEnvironmentalProperty>{0,unbounded}</diggs:otherEnvironmentalProperty>
</diggs:Environment>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/Common.xsd
