Element diggs:InjectionTimeSeries
Namespace http://diggsml.org/schemas/3
Annotations

An object containing a grout stage time series for eachg grout injection
event, for recording measurements taken during grouting.

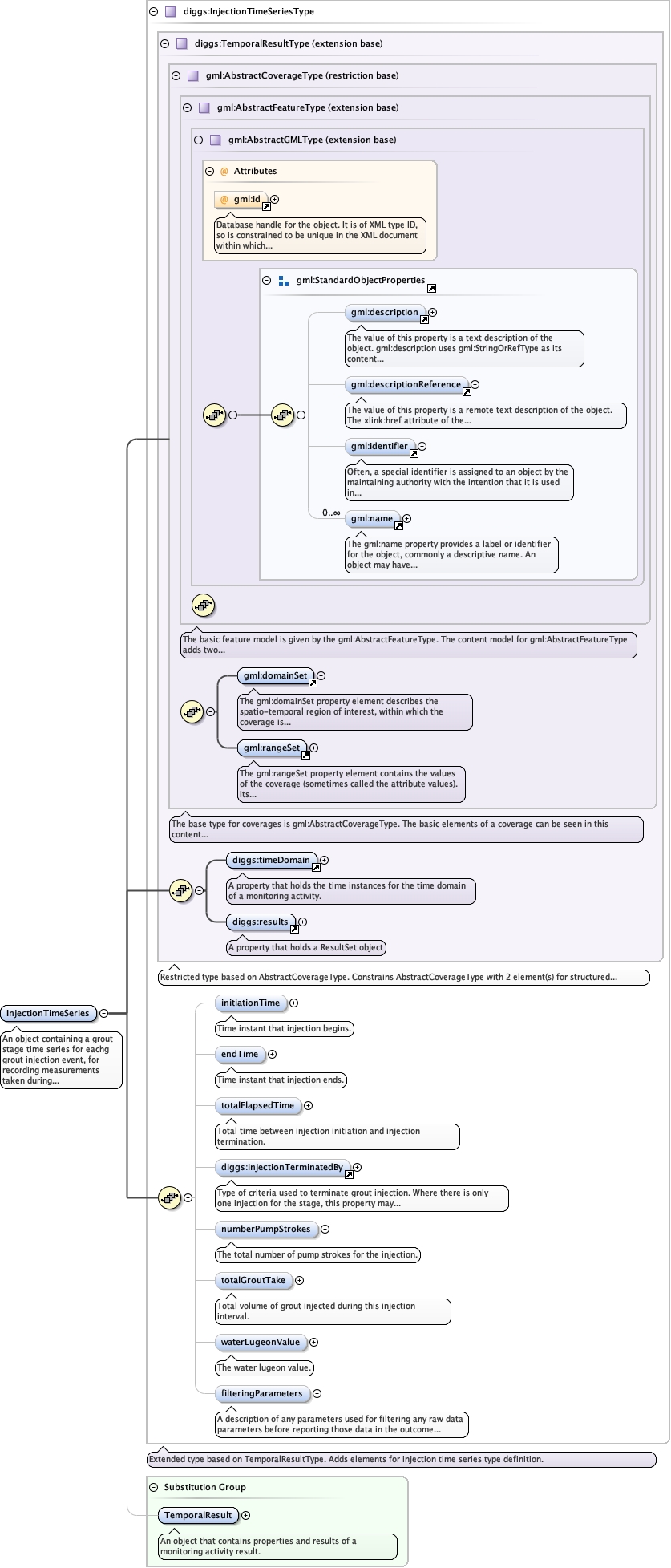

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_domainSet.tmp#domainSetgml3_2Profile_diggs_xsd_Element_gml_rangeSet.tmp#rangeSetgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractCoverageType.tmp#AbstractCoverageTypeCommon_xsd_Element_diggs_timeDomain.tmp#timeDomainCommon_xsd_Element_diggs_results.tmp#resultsCore_xsd_Complex_Type_diggs_TemporalResultType.tmp#TemporalResultTypeGrouting_xsd_Complex_Type_diggs_InjectionTimeSeriesType.tmp#InjectionTimeSeriesType_initiationTimeGrouting_xsd_Complex_Type_diggs_InjectionTimeSeriesType.tmp#InjectionTimeSeriesType_endTimeGrouting_xsd_Complex_Type_diggs_InjectionTimeSeriesType.tmp#InjectionTimeSeriesType_totalElapsedTimeGrouting_xsd_Element_diggs_injectionTerminatedBy.tmp#injectionTerminatedByGrouting_xsd_Complex_Type_diggs_InjectionTimeSeriesType.tmp#InjectionTimeSeriesType_numberPumpStrokesGrouting_xsd_Complex_Type_diggs_InjectionTimeSeriesType.tmp#InjectionTimeSeriesType_totalGroutTakeGrouting_xsd_Complex_Type_diggs_InjectionTimeSeriesType.tmp#InjectionTimeSeriesType_waterLugeonValueGrouting_xsd_Complex_Type_diggs_InjectionTimeSeriesType.tmp#InjectionTimeSeriesType_filteringParametersGrouting_xsd_Complex_Type_diggs_InjectionTimeSeriesType.tmp#InjectionTimeSeriesTypeCore_xsd_Element_diggs_TemporalResult.tmp#TemporalResult
Type diggs:InjectionTimeSeriesType
Type hierarchy
Properties
content complex
abstract false
Substitution Group Affiliation
Used by
Model
Children diggs:endTime, diggs:filteringParameters, diggs:initiationTime, diggs:injectionTerminatedBy, diggs:numberPumpStrokes, diggs:results, diggs:timeDomain, diggs:totalElapsedTime, diggs:totalGroutTake, diggs:waterLugeonValue
Instance

<diggs:InjectionTimeSeries gml:id="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:timeDomain xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</diggs:timeDomain>
  <diggs:results>{1,1}</diggs:results>
  <diggs:initiationTime calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:initiationTime>
  <diggs:endTime calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:endTime>
  <diggs:totalElapsedTime howDetermined="" qualifier="" uom="">{0,1}</diggs:totalElapsedTime>
  <diggs:injectionTerminatedBy displacedFeature="">{0,1}</diggs:injectionTerminatedBy>
  <diggs:numberPumpStrokes>{0,1}</diggs:numberPumpStrokes>
  <diggs:totalGroutTake howDetermined="" qualifier="" uom="">{0,1}</diggs:totalGroutTake>
  <diggs:waterLugeonValue howDetermined="" qualifier="" uom="">{0,1}</diggs:waterLugeonValue>
  <diggs:filteringParameters>{0,1}</diggs:filteringParameters>
</diggs:InjectionTimeSeries>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
