Element diggs:ContinuousGroutInjectionProperty
Namespace http://diggsml.org/schemas/3
Annotations

An object that specifies a property that is recorded during grout
injection.

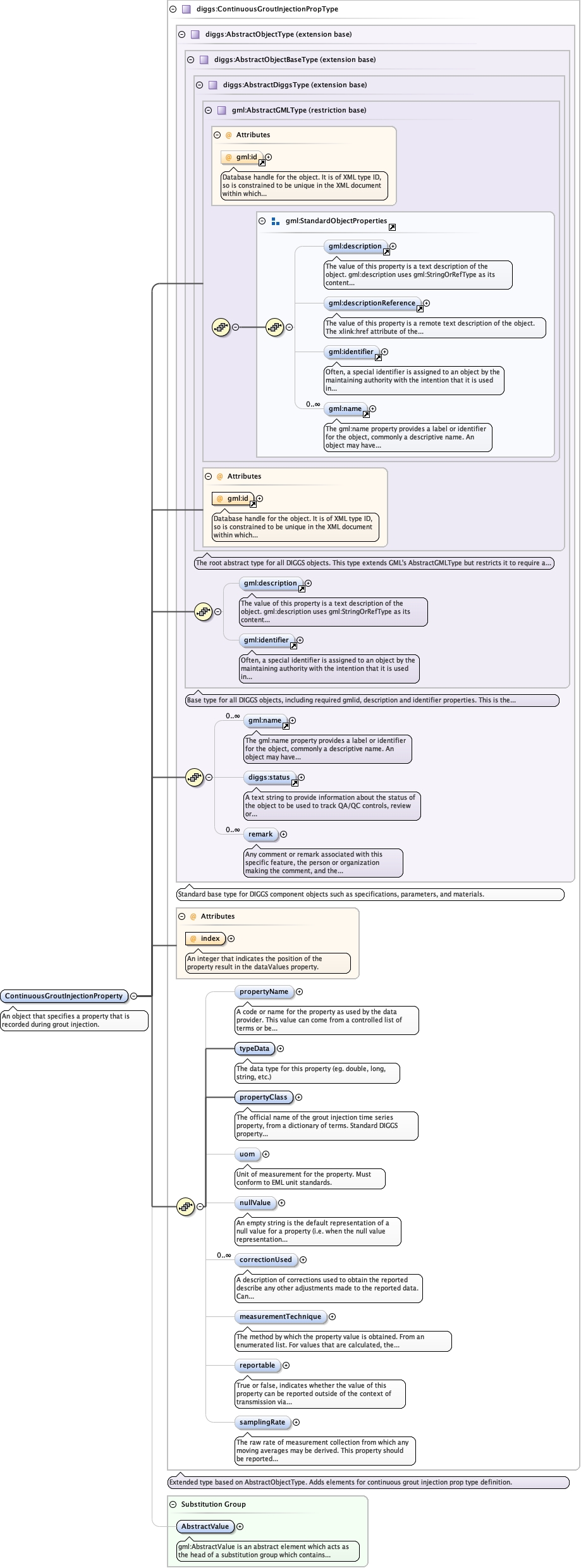

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeGrouting_xsd_Complex_Type_diggs_ContinuousGroutInjectionPropType.tmp#ContinuousGroutInjectionPropType_indexGrouting_xsd_Complex_Type_diggs_ContinuousGroutInjectionPropType.tmp#ContinuousGroutInjectionPropType_propertyNameGrouting_xsd_Complex_Type_diggs_ContinuousGroutInjectionPropType.tmp#ContinuousGroutInjectionPropType_typeDataGrouting_xsd_Complex_Type_diggs_ContinuousGroutInjectionPropType.tmp#ContinuousGroutInjectionPropType_propertyClassGrouting_xsd_Complex_Type_diggs_ContinuousGroutInjectionPropType.tmp#ContinuousGroutInjectionPropType_uomGrouting_xsd_Complex_Type_diggs_ContinuousGroutInjectionPropType.tmp#ContinuousGroutInjectionPropType_nullValueGrouting_xsd_Complex_Type_diggs_ContinuousGroutInjectionPropType.tmp#ContinuousGroutInjectionPropType_correctionUsedGrouting_xsd_Complex_Type_diggs_ContinuousGroutInjectionPropType.tmp#ContinuousGroutInjectionPropType_measurementTechniqueGrouting_xsd_Complex_Type_diggs_ContinuousGroutInjectionPropType.tmp#ContinuousGroutInjectionPropType_reportableGrouting_xsd_Complex_Type_diggs_ContinuousGroutInjectionPropType.tmp#ContinuousGroutInjectionPropType_samplingRateGrouting_xsd_Complex_Type_diggs_ContinuousGroutInjectionPropType.tmp#ContinuousGroutInjectionPropTypegml3_2Profile_diggs_xsd_Element_gml_AbstractValue.tmp#AbstractValue
Type diggs:ContinuousGroutInjectionPropType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:correctionUsed, diggs:measurementTechnique, diggs:nullValue, diggs:propertyClass, diggs:propertyName, diggs:remark, diggs:reportable, diggs:samplingRate, diggs:status, diggs:typeData, diggs:uom, gml:description, gml:identifier, gml:name
Instance

<diggs:ContinuousGroutInjectionProperty gml:id="" index="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:propertyName codeSpace="">{0,1}</diggs:propertyName>
  <diggs:typeData>{1,1}</diggs:typeData>
  <diggs:propertyClass codeSpace="">{1,1}</diggs:propertyClass>
  <diggs:uom>{0,1}</diggs:uom>
  <diggs:nullValue reason="">{0,1}</diggs:nullValue>
  <diggs:correctionUsed codeSpace="">{0,unbounded}</diggs:correctionUsed>
  <diggs:measurementTechnique formula="">{0,1}</diggs:measurementTechnique>
  <diggs:reportable>{0,1}</diggs:reportable>
  <diggs:samplingRate howDetermined="" qualifier="" uom="">{0,1}</diggs:samplingRate>
</diggs:ContinuousGroutInjectionProperty>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
index positiveInteger required
An integer that indicates the position of the property result in the dataValues property.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/Grouting.xsd
