Element diggs:relativeFeatureExtent
Namespace http://diggsml.org/schemas/3
Annotations
This element defines the polygon extent of the planar
feature using a relative planar referencing system (must use
planarReferencing property contents). This element should be used
for software that can handle planar referencing (e.g.
VectorLinearSpatialReferenceSystem in GML 3.3)

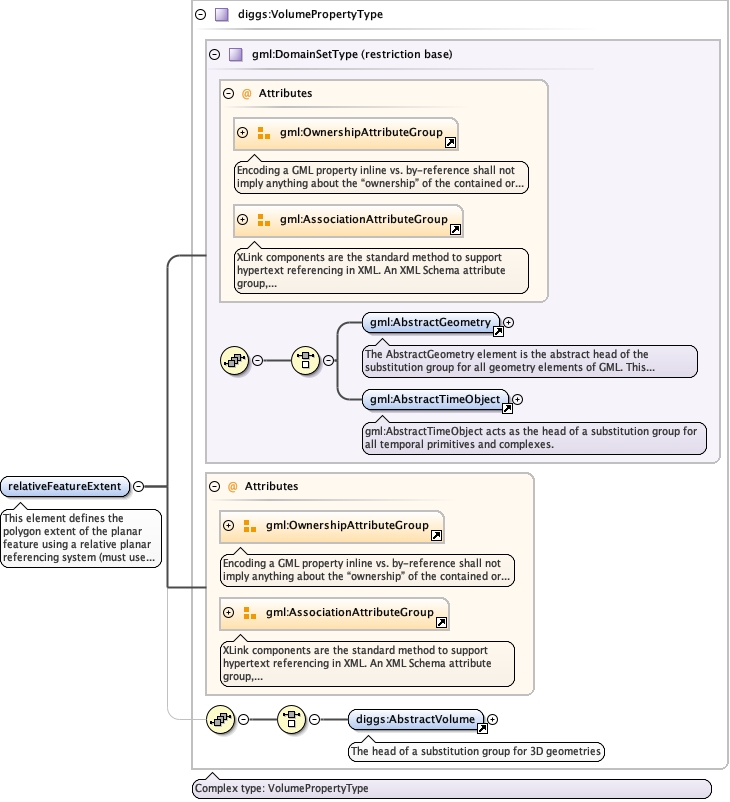

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupExtSamplingFeatures_xsd_Element_diggs_AbstractVolume.tmp#AbstractVolumeExtSamplingFeatures_xsd_Complex_Type_diggs_VolumePropertyType.tmp#VolumePropertyType
Type diggs:VolumePropertyType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:AbstractVolume
Instance
<diggs:relativeFeatureExtent xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AbstractVolume axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:AbstractVolume>
</diggs:relativeFeatureExtent>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtSamplingFeatures.xsd
